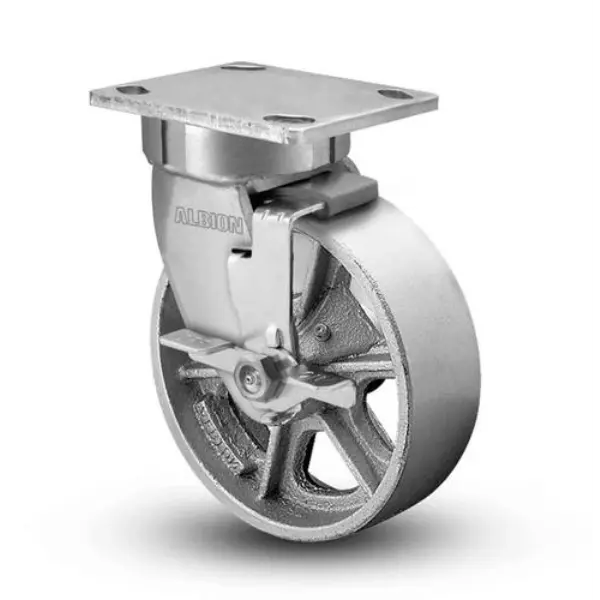

Upgrade your equipment with our heavy-duty 4"x2" kingpinless side locking caster. This industrial-grade workhorse boasts a robust cast iron wheel, engineered to withstand demanding environments and heavy loads. The innovative kingpinless design eliminates a common failure point, ensuring long-lasting performance and exceptional stability.
Need help finding the perfect caster for your project? Our team of caster specialists is on hand weekdays from 8 am to 5 pm to answer your questions and provide expert recommendations.
Ensure smooth operation and exceptional durability with our heavy-duty 4"x2" kingpinless side locking caster. This industrial-grade caster is built to withstand demanding environments and heavy loads. The robust cast iron wheel provides excellent wear resistance and stability, while the innovative kingpinless design minimizes the risk of failure for long-lasting performance.
Have questions about our casters or need help finding the right solution for your application? Our caster experts are available weekdays from 8 am to 5 pm to provide you with professional advice.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Experience the difference of kingpinless casters! Engineered to withstand heavy loads and lateral stress, these casters provide exceptional reliability in demanding applications. The innovative design minimizes the risk of failure, ensuring smooth operation and reduced downtime.
Have questions about caster selection? Our team of experts is here to help! Contact us weekdays from 8 am to 5 pm for personalized recommendations.
This Albion 4"x2" Cast Iron Kingpinless Side Lock Caster – 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

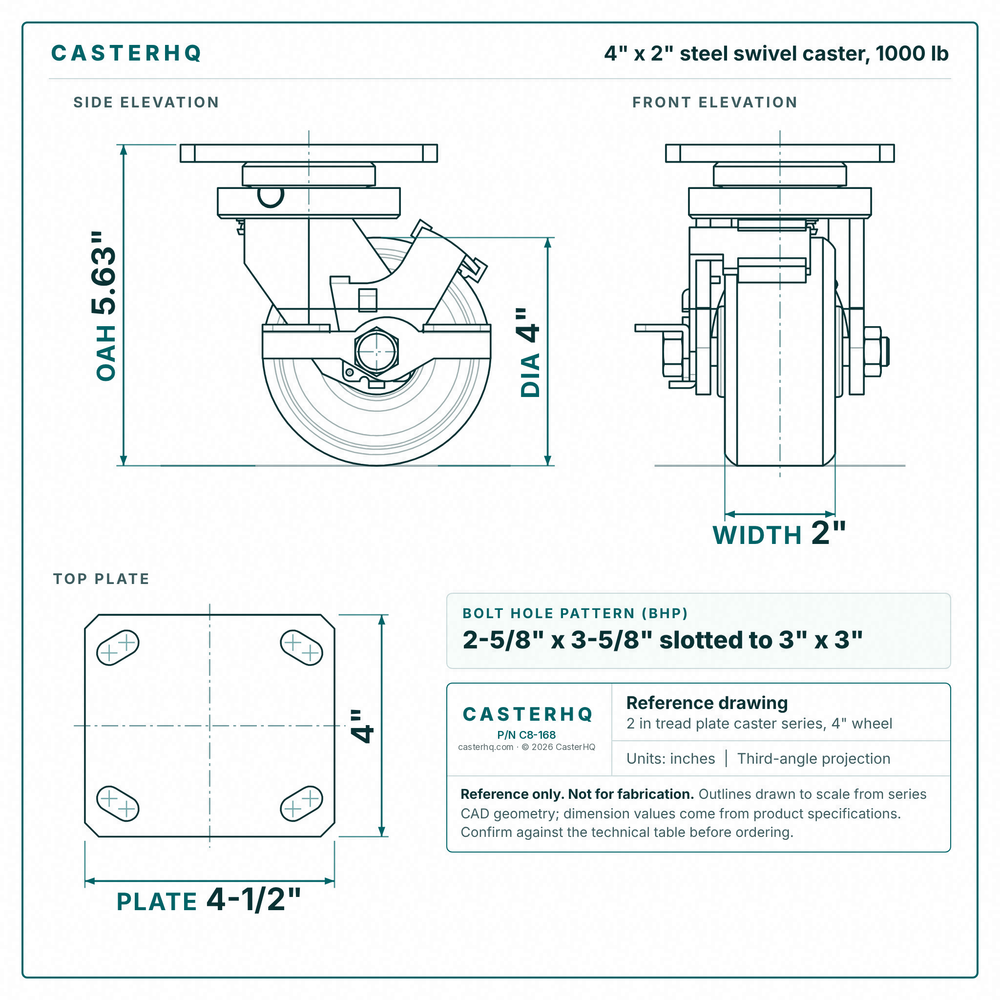

The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$111.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
4" x 2" Rigid Caster Yoke 4" x 4-1/2" Top Plate Zinc Plated | CasterHQ
4" x 2" · 1000 lbs
$10
4" x 2" Poly on Aluminum Swivel Caster 4-1/2" x 6-1/4" Plate – 1,000 lb | CasterHQ
4" x 2" · 1000 lbs
$63
4" x 2" Polyurethane on Aluminum Dual Wheel Caster – 1,000 lb | CasterHQ
4" x 2" · 1000 lbs · Direct fit
$183
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 4" × 2"Cast Iron | Swivel | 5-5/8" | $29.00 | View → | |
| 800 lbsLighter duty | 4" × 2"Polyurethane | Rigid | 5-5/8" | $164.00 | View → | |
| 1000 lbs | 4" × 2"Cast Iron | — | 5.63" | $111.00 | Viewing | |
| 1000 lbsSame capacity | 4" × 2"Polyurethane | — | 5-5/8" | $183.00 | View → | |
| 1000 lbsSame capacity | 4" × 2" | Rigid | 5-5/8" | $10.00 | View → |
