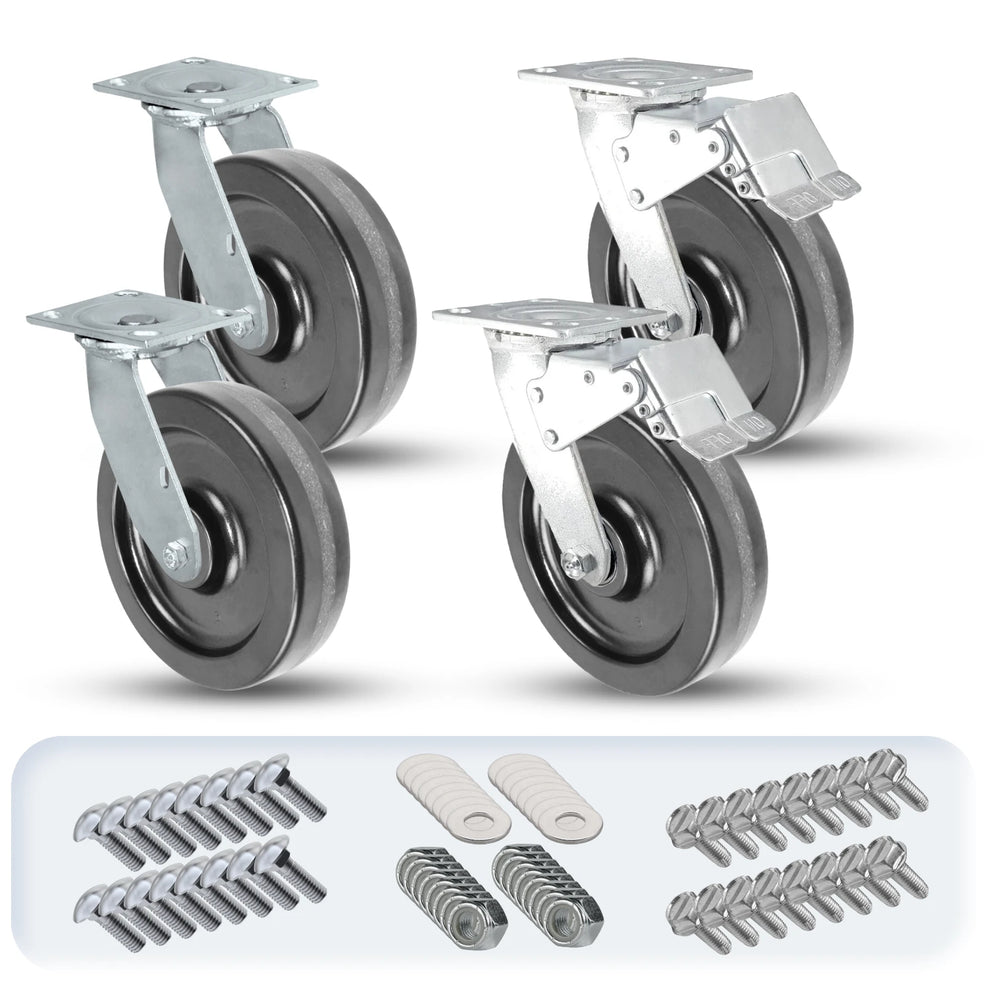

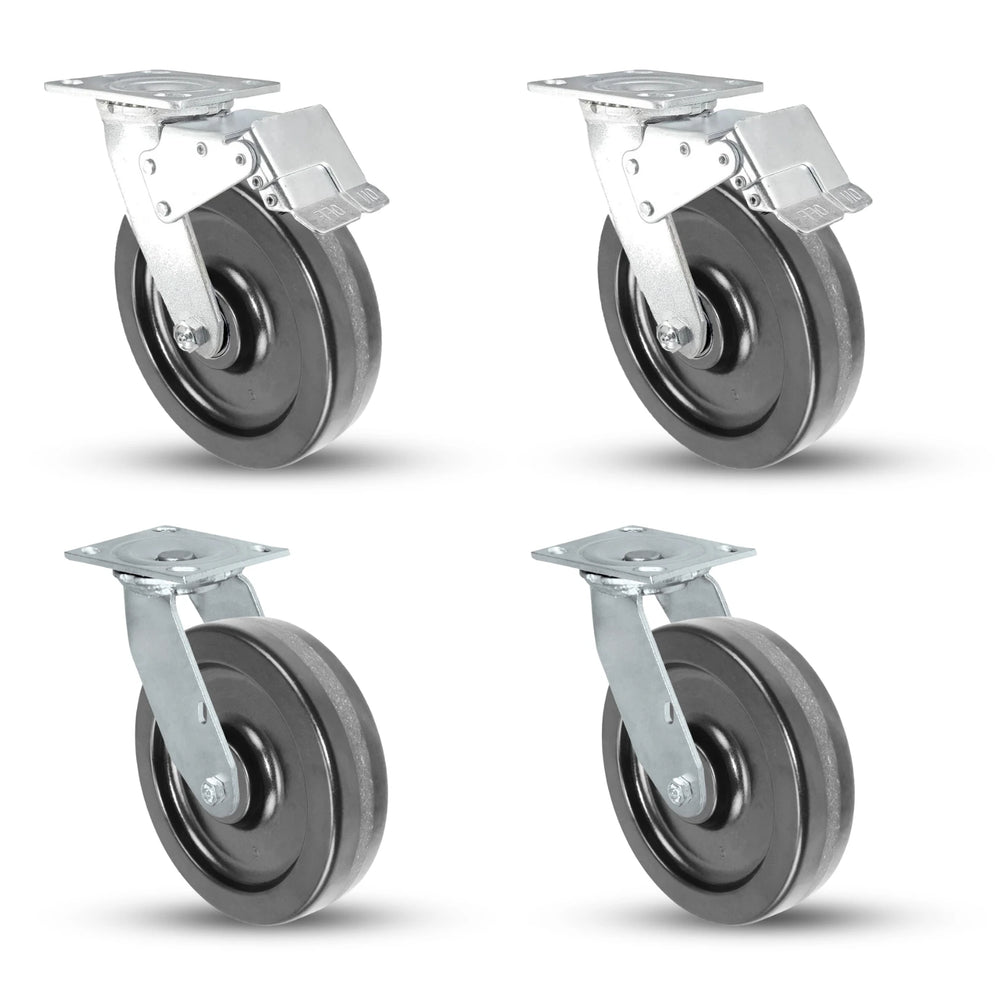

Enhance your equipment's mobility and stability with our robust 8-inch by 2-inch caster set. This set, a prominent member of our Medium Duty 'HD' Series, includes two total lock casters for secure positioning and two standard swivel casters for effortless maneuvering. With an impressive 4,000 lbs total capacity, these casters are ideal for a multitude of medium-duty applications.
This caster set not only provides exceptional quality and durability but also offers versatility and value. With fast delivery and competitive pricing, it's an excellent choice for enhancing the mobility of carts, trucks, and other equipment in medium-duty environments.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Enhance your equipment's mobility with our premium 8-inch by 2-inch caster set from our Medium Duty 'HD' Series. This set includes two total lock casters for secure positioning and two swivel casters for flexible movement, supporting a substantial 4,000 lbs total capacity. Ideal for medium-duty applications, these casters offer unmatched functionality and value.
| Wheel Material: | Phenolic |
| Wheel Diameter: | 8 inches |
These casters are perfectly suited for carts, trucks, dollies, racks, and other equipment in industries such as warehousing, hospitality, institutional, food service, and retail, providing reliable and versatile mobility solutions.
Opting for this caster set means choosing a balance of quality, performance, and affordability. Their robust construction, combined with the ease of installation and maintenance, makes them a practical choice for a range of medium-duty industrial applications.
This 8" x 2" Phenolic Total Lock Caster – 4,000 lb 4" x 4-1/2" Plate is rated to 4000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -50°F to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$132.00
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 9-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 4000 lbs |
| Temp Range | -50°F to 250°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
