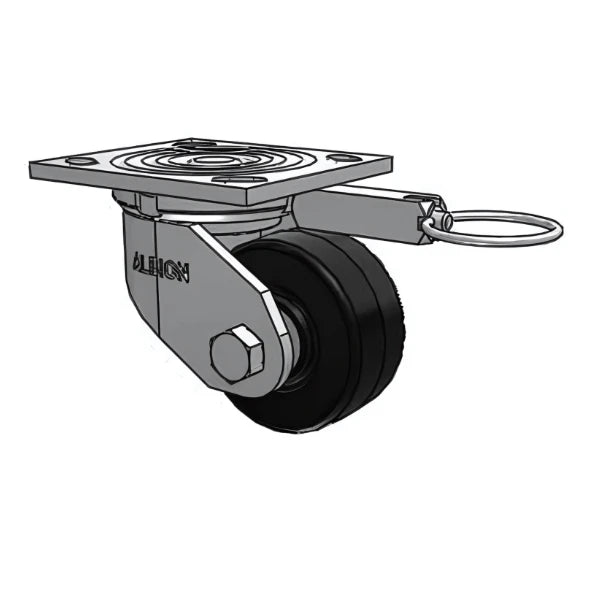

Get the Albion 16TM03101SL caster for unmatched durability and value. This USA-made swivel caster boasts a 3.25" x 1.5" phenolic wheel and a strong 4-1/2" x 4" top plate, capable of handling loads up to 600 lbs.
Need help choosing the right caster for your project? Our Caster Experts are available weekdays 8 am - 5 pm to answer your questions and provide expert advice.
Experience the superior craftsmanship and lasting durability of a caster manufactured in the United States.
Engineered for demanding applications, this caster boasts a robust 600 lb. load capacity per unit.
The wear-resistant phenolic wheel ensures smooth rolling and minimizes replacement needs.
The caster's well-designed swivel mechanism provides exceptional maneuverability, even under heavy loads.
The spacious top plate offers ample surface area for secure mounting on various equipment and applications.
The caster is designed for quick and straightforward installation, minimizing downtime and maximizing efficiency.
Backed by a comprehensive 3-year warranty, this caster provides protection against defects for lasting value.
Suitable for a wide range of industrial and commercial settings, including manufacturing, warehousing, and transportation.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion 16TM03101SL swivel caster is a premium choice for industrial and commercial applications requiring exceptional strength and smooth operation. This USA-made caster boasts a robust design and high-quality materials, ensuring long-lasting performance and a reliable investment.
Our team of caster experts is readily available to answer your questions and provide guidance on selecting the most suitable caster for your specific application. Contact us weekdays from 8 am to 5 pm to speak with a knowledgeable representative.
This Albion 16TM03101SL 3.25" x 1.5" Phenolic Swivel Caster – 600 lb is rated to 600 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 1-1/2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 4.25". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$94.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 1-1/2" |
| Overall Height | 4.25" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 600 lbs |
| Temp Range | Up to 250°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
Hamilton 4" x 1.5" Metal Wheel Swivel Caster – 600 lb | CasterHQ
4" x 1-1/2" · 600 lbs
$91
Hamilton S-WW-4P 4" x 1.5" Plastex Phenolic Swivel Caster – 600 lb | CasterHQ
4" x 1-1/2" · 600 lbs
$71
Hamilton S-WW-4D 4" x 1.5" Duralast Swivel Caster 3/4" Roller – 675 lb | CasterHQ
4" x 1-1/2" · 675 lbs · Direct fit
$114
View all 4′ x 1-1/2′ casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 450 lbsLighter duty | 4" × 1-1/2" | Swivel | 5-1/8" | $41.00 | View → | |
| 450 lbsLighter duty | 4" × 1-1/2" | Swivel | 5-1/8" | $41.00 | View → | |
| 600 lbs | 4" × 1-1/2"Phenolic | Swivel | 4.25" | $94.00 | Viewing | |
| 600 lbsSame capacity | 4" × 1-1/2"Cast Iron | Swivel | 5.625" | $91.00 | View → | |
| 600 lbsSame capacity | 4" × 1-1/2"Phenolic | Swivel | — | $71.00 | View → |
