Lavex Lodging 8 in. Swivel Caster with Ball Bearings for Housekeeping Carts, Replacement for Model 274HKLGFXWH - | CasterHQ

Lavex Lodging 8 in. Swivel Caster with Ball Bearings for Housekeeping Carts, Replacement for Model 274HKLGFXWH

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$52.00 USD - $64.99 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: CHQ-8002TPR-274HLG

Product Overview

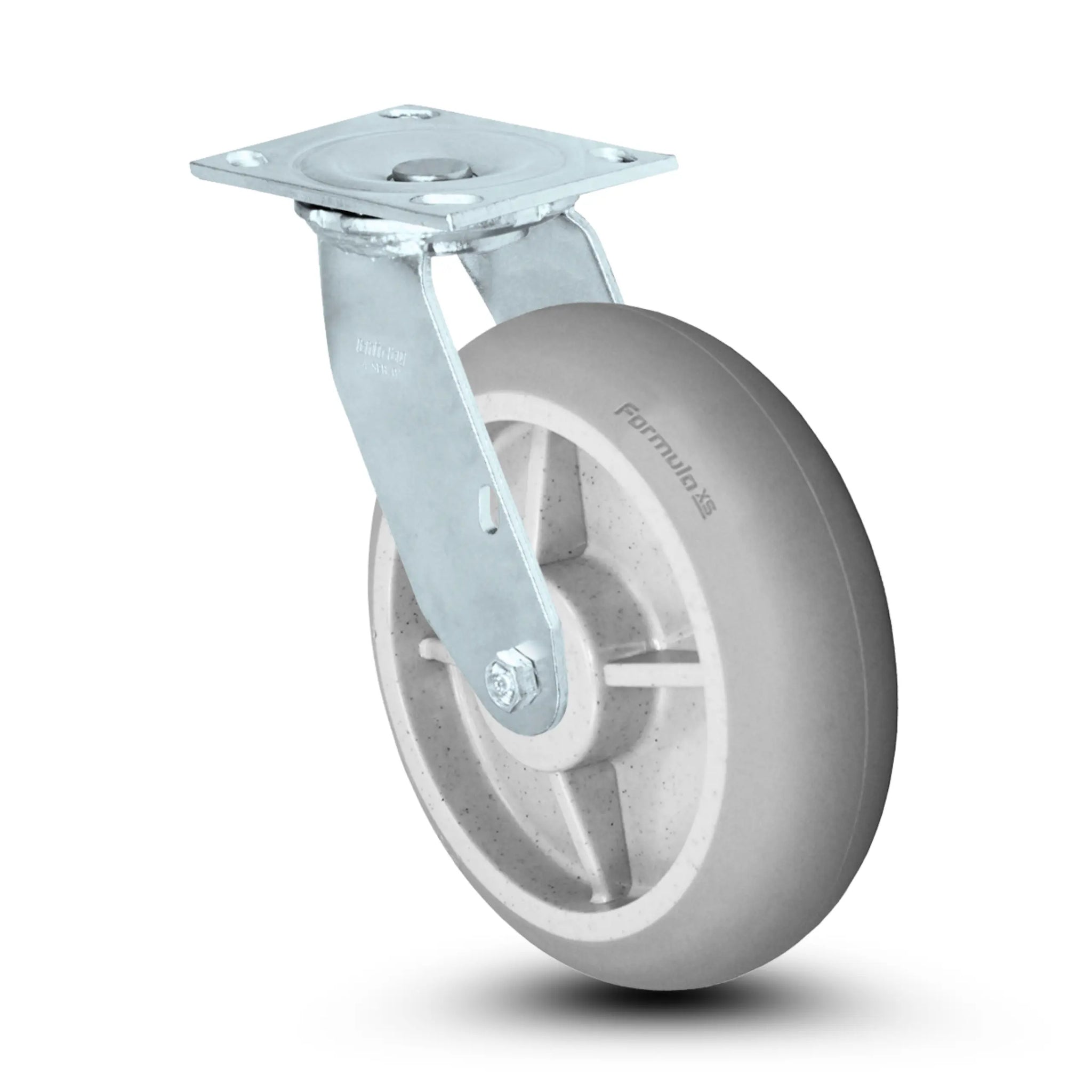

8 in. Swivel Caster with Ball Bearings for Housekeeping Carts - Lavex Lodging - 274HKLGFXWH

Upgrade your housekeeping carts with the Lavex Lodging 8-inch Swivel Caster. This high-quality caster is engineered for effortless mobility and features a non-marking thermoplastic rubber donut tread on a durable polyolefin core. Designed for optimal performance in commercial environments, this caster ensures quiet operation and easy maneuverability.

Wheel Size & Material: 8" x 2" wheel with a soft, thermoplastic rubber tread on a robust polyolefin core.
Load Capacity: Supports up to 600 lbs, ideal for heavy-duty applications.
Swivel Design: Features maintenance-free pedestal-style precision bearings for smoother and quieter swiveling.
Durability: Equipped with bright zinc plating, double ball bearing raceways, and a 1/2" diameter axle bolt for enhanced strength.
Non-Marking Tread: Donut-shaped tread provides excellent floor protection and easier navigation over obstacles.

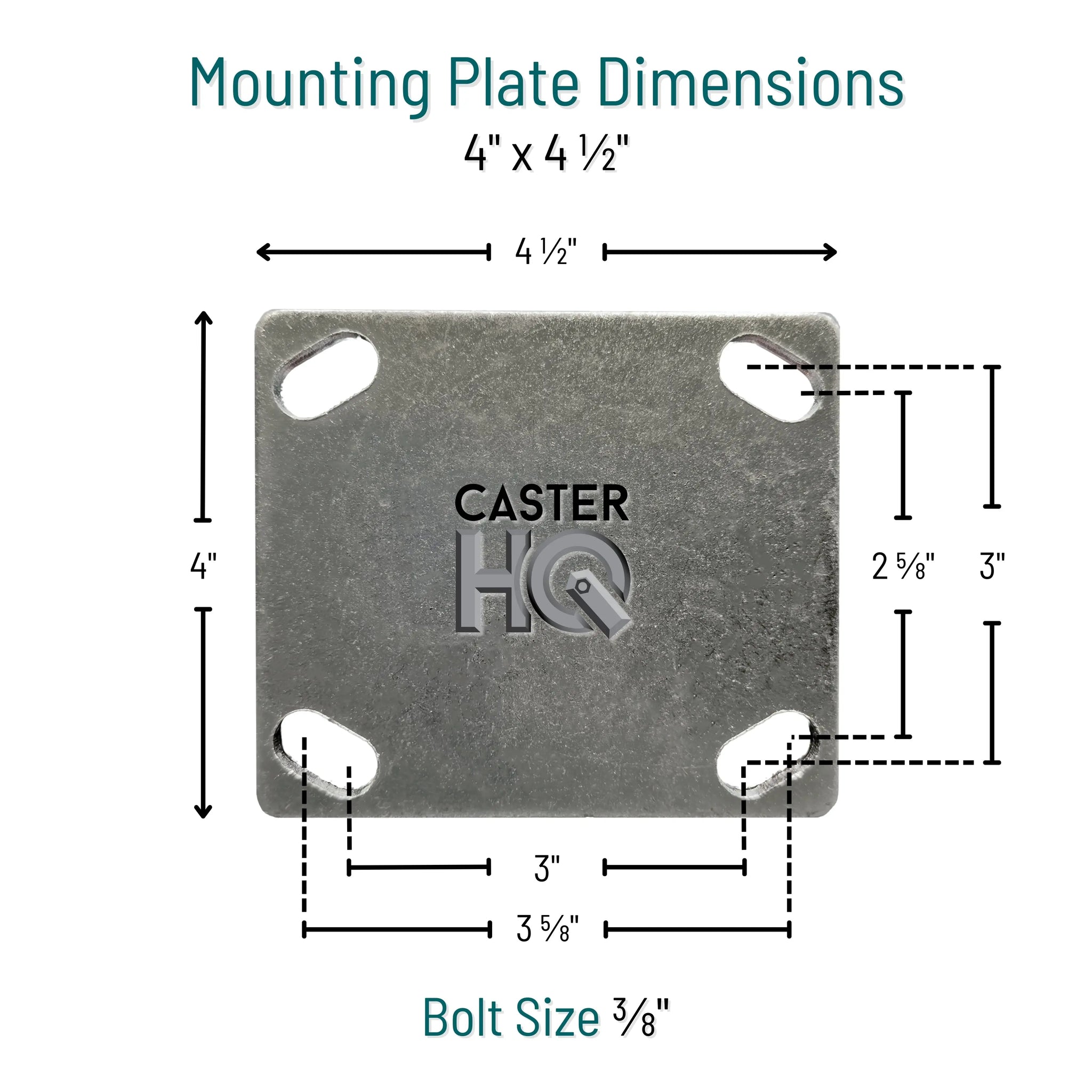

Mounting Specifications: Top plate measures 4" x 4-1/2"; bolt holes 2-5/8" x 3-5/8" Slotted to 3" x 3".
Additional Features: Includes grease fittings and 5/8" bolted kingpins for long-lasting use and easy maintenance.

Technical Specs

Wheel Size: 8" diameter x 2" width for versatile use.
Load Capacity: Robust 600 lbs support, ideal for heavy-duty tasks.
Top Plate Dimensions: Standard 4" x 4-1/2" for secure mounting.
Bolt Hole Spacing: Adjustable from 2-5/8" x 3-5/8" to 3" x 3", fitting a variety of carts.
Mounting Height: Total height of 9-1/2" for optimal clearance.
Tread Material: Non-marking thermoplastic rubber with 70 Shore (A) hardness, reducing floor damage.
Wheel Bearings: Features pedestal precision ball bearings for smooth, quiet operation up to 3 mph.
Construction Quality: Equipped with a bright zinc finish, 1/2" diameter axle bolt, grease fittings, and double ball bearing raceways for durability and ease of maintenance.
Kingpin Design: Strong 5/8" bolted kingpins for enhanced stability and longevity.

Key Features

Quiet Operation: Equipped with precision ball bearings for smoother rolling and reduced noise, ideal for noise-sensitive environments like hotels and hospitals.
Non-Marking Rubber: Features a thermoplastic rubber donut tread that is soft, ensuring no damage or marks are left on flooring surfaces.
High Load Capacity: Capable of supporting up to 600 lbs, making it suitable for a wide range of heavy-duty applications in housekeeping.
Durable Construction: Constructed with a polyolefin core and bright zinc plating for enhanced durability and resistance to corrosion.
Swivel Design: Allows for 360-degree maneuverability, enhancing mobility and ease of use in tight spaces typical in housekeeping settings.

Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

Flat-rate shipping by order size. Final shipping cost shown before payment.
No post-checkout shipping adjustments or re-billing.
Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Additional Information

Robust Design for Diverse Applications: This caster is engineered to meet the demands of a broad range of applications in environments such as hotels, hospitals, and other commercial settings. Its robust design supports up to 600 lbs, making it an ideal choice for heavy-duty housekeeping carts and other mobile equipment that require reliable, smooth movement.
Optimized Mobility and Flexibility: Featuring a top plate with dimensions of 4" x 4-1/2" and versatile bolt hole spacing from 2-5/8" x 3-5/8" to 3" x 3", this caster offers excellent adaptability for various mounting requirements. The 9-1/2" mounting height provides sufficient clearance, enhancing the caster's compatibility with a wide array of housekeeping carts.
Advanced Wheel Materials and Construction: The wheel is composed of non-marking thermoplastic rubber, ensuring that it does not leave scuffs or marks on flooring surfaces. This is particularly vital in settings that maintain high standards of cleanliness and appearance. The 70 Shore (A) Durometer hardness of the tread offers a perfect balance of softness and durability, reducing noise and facilitating easier navigation over different floor types.
Precision and Quiet Operation: Utilizing pedestal precision ball bearings, the caster ensures quiet operation and smooth rolling capabilities, suitable for environments where noise reduction is critical. The caster is optimized for manual movement at speeds up to 3 mph, providing effortless handling.
Enhanced Durability and Maintenance: Constructed with a bright zinc plating, this caster is built to resist corrosion and wear, extending the life of the product. It features a 1/2" diameter axle bolt, double ball bearing heat-treated raceways, and grease fittings that simplify maintenance. The 5/8" bolted kingpins strengthen the caster's structure, further enhancing its durability and load-bearing capacity. Ideal for
Professional Environments: With its comprehensive design that includes advanced bearing technology and high-quality materials, the Lavex Lodging 8-inch Swivel Caster is a top choice for professional environments that require dependable and efficient material handling solutions.
