Wheel = wheel diameter · capacity is per caster.
Cart wheels and total lock casters for utility, platform and housekeeping carts. 3 to 8 inch plate casters in polyurethane, rubber, phenolic, nylon, polyolefin and semi-steel, most with a total lock brake that holds both the wheel and the swivel. Also here: replacement casters for Rubbermaid tilt trucks and Lavex housekeeping carts, and a 10 inch flat-free tilt truck wheel.
Cart casters are the replaceable swivel and rigid casters fitted to utility carts, platform trucks, and housekeeping carts. Wheel sizes run 3" to 10" with per-caster capacities from 225 to 1,100 lb, up to 4,400 lb for a 4-caster set. The two standard mount plates, 2-3/8" x 3-5/8" and 4" x 4-1/2", cover most commercial carts, so match the plate bolt pattern before anything else.
The main cart caster types on this page, with the rating and plate for each. Ratings are per caster unless the row says set.
| Configuration | Wheel Material | Capacity | Mount Plate | Best Cart Type |
|---|---|---|---|---|

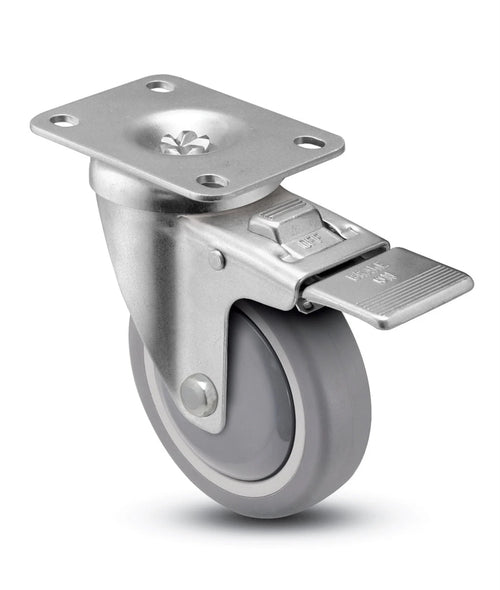

| 3" Total Lock Plate | Polyurethane | 300 lb | 2-3/8" x 3-5/8" | Service, tool, small utility carts |
| 3" Total Lock Plate | Thermo Rubber | 225 lb | 2-3/8" x 3-5/8" | Hospital, kitchen, soft-floor carts |
| 3" Total Lock Plate | Phenolic | 350 lb | 2-3/8" x 3-5/8" | Heavier loads on dry floors, heat to 250°F |
| 4" Total Lock Plate | Polyurethane / Phenolic | 300 to 350 lb | 2-3/8" x 3-5/8" | Service carts, light industrial |
| 5" Total Lock Plate | Polyurethane / Phenolic | 325 to 350 lb | 2-3/8" x 3-5/8" | Mid-duty industrial & commercial carts |
| 5" x 2" Heavy-Duty Total Lock | Polyurethane on Iron | 1,100 lb each | 4" x 4-1/2" | Heavy manufacturing & platform carts |
| 5" x 2" Heavy-Duty Set of 4 | Polyurethane on Iron | 4,400 lb total set | 4" x 4-1/2" | Complete heavy industrial cart build |
| 5" x 2" Mixed Set (2 Lock + 2 Rigid) | Polyurethane on Iron | 4,400 lb total set | 4" x 4-1/2" | Industrial cart with directional control |

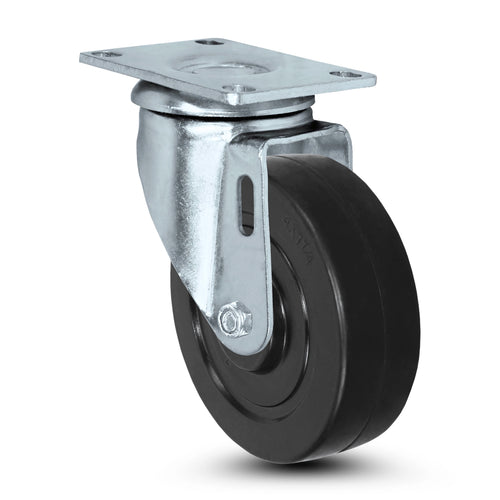

| 4" Rubbermaid Tilt Truck Replacement | Hard Rubber | 300 lb | 2-1/2" x 3-5/8" | Replaces part 1013-L2 on Rubbermaid FG101300BLA and FG9T1400BLA tilt trucks |
| 10" x 2.75" Flat-Free Wheel | Flat-free, semi-pneumatic | 550 lb | Wheel only | Rubbermaid FG9T14L1 tilt truck wheel replacement |
| 8" x 2" Housekeeping Cart Caster | Thermoplastic Rubber | 600 lb each | 4" x 4-1/2" | Lavex Lodging 274HKLGFXWH housekeeping cart replacement |
Service carts and small utility carts (under 24" deck): 3-inch wheels. Standard industrial and commercial platform carts: 4-inch or 5-inch wheels. Heavy manufacturing platforms, large platform trucks, and tilt trucks: 5x2" or larger. Hotel housekeeping carts and high-clearance equipment: 8-inch wheels. Smaller wheels turn easier and fit tight space, larger wheels handle bumps and uneven floors better.
Default for retail and warehouse floors: polyurethane (300 to 1,100 lb depending on size and hub). For dish rooms and carts that see heat: phenolic (350 lb, rated -50 to 250°F) or semi-steel (350 lb, rated to 600°F). For hospitals, food prep and tile or vinyl floors: thermo rubber or hard rubber (225 to 600 lb, quieter and gentler on the floor). For easy rolling on smooth concrete: nylon or polyolefin. Match the material to where the cart actually lives.
If you are replacing wheels on a Rubbermaid tilt truck, a Lavex housekeeping cart or other branded cart, order the matching replacement listed here. For universal cart frames, match by plate size: most commercial carts use the 2-3/8" x 3-5/8" top plate, while heavier carts use the 4" x 4-1/2" plate. Measure the existing plate and bolt holes before ordering, since a bolt pattern mismatch is the usual reason a replacement does not fit.
Carts that need to stay put while loading or unloading do best on total lock casters, which lock the wheel and the swivel at the same time. Service carts, AV carts, prep tables, lab carts and housekeeping carts all qualify. Carts that move most of the day may not need total lock at every corner. Two total lock swivels and two rigids give straight tracking and still lock in place.
Need help matching casters to a fleet of carts? Contact CasterHQ with the cart type, load and plate size.
Walkthrough of how the total lock mechanism works on cart casters, where it's needed, and how it compares to a standard top-lock brake.
Prefer YouTube? Open the full video on the CasterHQ YouTube channel.
This page lists 36 cart caster models, from 3 inch service cart casters to 8 inch housekeeping cart casters, plus a 10 inch flat-free tilt truck wheel. Wheels come in polyurethane, rubber, thermo rubber, phenolic, nylon, polyolefin and semi-steel. Replacement casters for Rubbermaid tilt trucks (FG1013L2, FG9T14L1) and Lavex housekeeping carts are listed too. In-stock orders placed by noon CST ship the same day.
Plate-mount cart casters with 3, 4, 5 and 8 in wheels, most with a total lock brake that holds both the wheel and the swivel, plus a 10 x 2.75 in flat-free replacement wheel.
Single casters are rated 225 to 1,100 lb each, and most are 300 to 350 lb. The two 5 x 2 in sets are rated 4,400 lb per set of 4, not per caster.
Most use a 2-3/8 x 3-5/8 in plate with bolt holes 1-3/4 x 2-7/8 in apart. The 5 x 2 in and 8 x 2 in casters use a 4 x 4-1/2 in plate.
Polyurethane and rubber are the most common here and both run quietly on finished floors. Phenolic is hard and suits heavy loads on dry floors; nylon and polyolefin roll easily on smooth concrete.
Yes. Two rigid casters at one end and two swivels at the other track straighter on long pushes. One 5 x 2 in set here comes as two total lock swivels and two rigids.
Divide the loaded cart weight by three. A cart that weighs 900 lb loaded needs casters rated at least 300 lb each.
Cart type sets the stem, plate and wheel size before capacity matters. Shopping cart wheels are on their own page, sorted by stem and wheel size. U-boat cart casters cover the 4 and 8 inch casters used on u-boat platform trucks. Garden cart wheels match by diameter, tire width and axle bore, in pneumatic or flat-free foam. If you need the whole cart rather than the wheels, see flatbed carts and platform trucks.
