This is a configurable, spec-driven industrial caster. To preserve accurate engineering and freight pricing, units are quoted by application. Request a formal quote below — our team replies with pricing, lead time, and any spec confirmations within one business day.

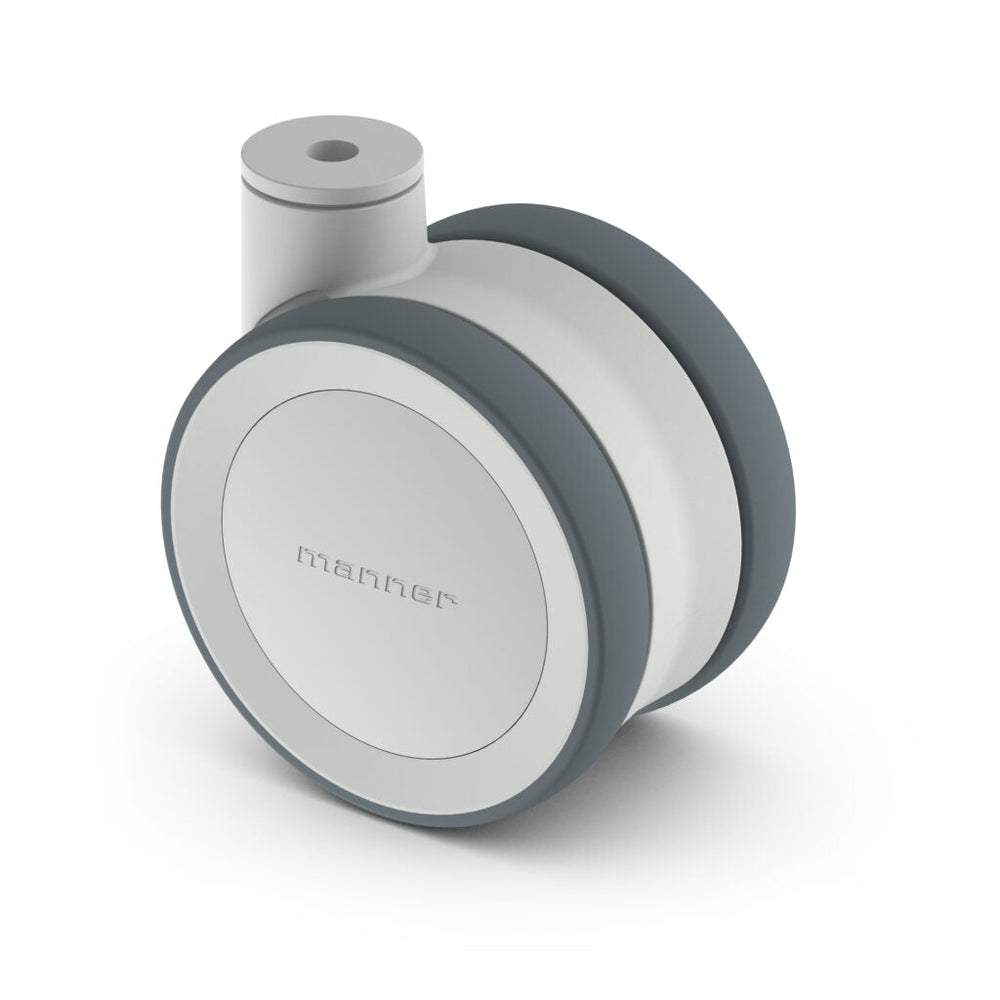

The Manner Twist TW-S-100 GP/K H is a 100 mm (3.94") swivel castors from the Twist series, Manner's flagship line for hospital beds, rehabilitation equipment, institutional kitchens, and clean-environment trolleys.
The fork and wheel hub are typically glass-fibre-reinforced polyamide, eliminating corrosion paths under repeated wipe-down with hospital-grade disinfectants. Manner is a Colson Group company; CasterHQ is the authorized US partner for the Twist medical caster line.
Key Benefits:
Typical Applications: hospital and rehabilitation beds, surgical and procedure carts, pharmacy and supply trolleys, institutional kitchen carts, and clean-environment equipment in healthcare facilities.
CAD Drawing: Manufacturer STEP file available for direct import into SolidWorks, Inventor, Fusion 360, Creo, NX, and CATIA. Manner item no. 305130.
Pricing by configuration. Request a quote for unit price, lead time, and freight — our team replies within one business day. Conductive (ESD-safe), non-magnetic (MRI-compatible), and stainless variants are available across the range; specify on your RFQ.
Order processing
Made to order. Built to specification after your PO. Typical lead time: In Stock · Ships in 3-5 Days.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This Manner Twist TW-S-100 GP/K H Swivel castors — 100mm is rated to 276 lb per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyamide hub / Polyurethane tread wheel with a 0.79" (20 mm) tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a Bolt hole mount. Stem casters press or thread into a socket - verify the stem diameter and length match your existing setup before ordering.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
The Polyamide hub / Polyurethane tread wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 4.65" (118 mm). Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
| Identification | |
| Brand | Manner Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 3.94" (100 mm) |
| Wheel Tread Width | 0.79" (20 mm) |
| Overall Height | 4.65" (118 mm) |
| Bolt Hole Pattern | 10 mm bolt hole · 89 mm swivel radius |
| Mount Style | Bolt hole |
| Rig Type | Swivel |
| Load & Performance | |
| Weight Capacity Per Caster (lbs) | 276 |
| Materials & Finish | |
| Wheel Material | Polyamide hub / Polyurethane tread |
| Frame Material | Plastic |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 220 lbLighter duty | 3.94" (100 mm) × 0.79" (20 mm)Conductive polyamide hub / Conductive polyurethane tread | Swivel + brake | 5.0" (127 mm) | Request quote | View → | |
| 276 lb | 3.94" (100 mm) × 0.79" (20 mm)Polyamide hub / Polyurethane tread | Swivel | 4.65" (118 mm) | Request quote | Viewing | |
| 276 lbSame capacity | 3.94" (100 mm) × 0.79" (20 mm)Conductive polyamide hub / Conductive polyurethane tread | Swivel | 4.65" (118 mm) | Request quote | View → | |
| 276 lbSame capacity | 3.94" (100 mm) × 0.79" (20 mm)Polyamide hub / Polyurethane tread | Swivel | 4.65" (118 mm) | Request quote | View → | |
| 276 lbSame capacity | 3.94" (100 mm) × 0.79" (20 mm)Polyamide hub / Polyurethane tread | Swivel | 4.65" (118 mm) | Request quote | View → |
