Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

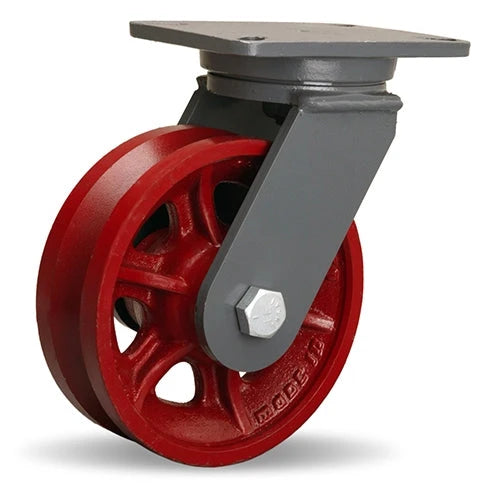

The S-CH-13FVH Hamilton Champion Swivel Caster is designed for the most demanding industrial environments. With its 10" x 3" Forged Steel V-Grooved Wheel, it ensures durability and optimal weight distribution. The inclusion of a 1" Straight Roller Bearing provides smooth movement, making transportation tasks a breeze.
Whether you're undertaking heavy-duty industrial projects or need reliable casters for specialized equipment, the S-CH-13FVH is the prime choice. Experience the difference in mobility with Hamilton's precision-engineered solution.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
When it comes to industry-leading mobility solutions, the S-CH-13FVH Hamilton Champion Swivel Caster stands out. Crafted with meticulous attention to detail and optimized for the toughest industrial applications, this caster offers unmatched performance and durability.
The product boasts a 10" x 3" Forged Steel V-Grooved Wheel which guarantees optimal weight distribution. This robust wheel design ensures the caster can withstand the rigors of daily industrial use. Furthermore, its 1" Straight Roller Bearing is precision-engineered to facilitate smooth, frictionless movement, simplifying transportation tasks across various terrains.
The caster is predominantly designed for demanding industrial environments. However, its versatile design and top-notch build quality make it suitable for a plethora of applications. From factory floors to warehousing, the S-CH-13FVH is your go-to choice for reliable mobility.
One of the standout features of this caster is its wear and tear resistance. Made with top-grade materials, it promises long-lasting use without frequent maintenance requirements. This not only ensures consistent performance but also provides users with a cost-effective solution in the long run.
Backed by Hamilton's legacy and commitment to quality, the S-CH-13FVH Champion Swivel Caster is more than just a product; it's a promise of excellence. By choosing this caster, you are investing in a blend of innovation, reliability, and value.
This Hamilton S-CH-13FVH 10" x 3" Forged Steel Swivel Caster – 1" Roller Bearing is rated to 4000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Steel wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

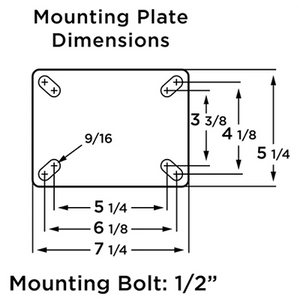

This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 800°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Steel wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 12-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$665.00
| Identification | |
|---|---|
| Part Number / SKU | S-CH-13FVH |
| Replacement Wheel Part No | W-10-FVH-1 |
| Core | |
| Load Capacity | 4000 lbs |
| Wheel Diameter | 10" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 12-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 7-5/8" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 2-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 5-1/4" x 7-1/4" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 3-3/8" x 5-1/4" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Steel |
| Wheel Core Material | Steel |
| Wheel Color | Clearcoat |
| Bearing Type | Straight Roller Bearing |
| Axle Diameter | 3/4" |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | Up to 800°F |
| Unit Weight | 48 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 3500 lbsLighter duty | 10" × 3"Cast Iron | Swivel | 11.5" | $340.00 | View → | |
| 3900 lbsLighter duty | 10" × 3"Polyurethane | Rigid | 12-1/2" | $384.00 | View → | |
| 4000 lbs | 10" × 3"Steel | Swivel | 12-1/2" | $665.00 | Viewing | |
| 5400 lbsHeavier duty | 10" × 3"Polyurethane | Swivel | 13" | $1,211.00 | View → | |
| 6000 lbsHeavier duty | 10" × 3"Ductile Iron | Rigid | 11-1/2" | $227.00 | View → |
