Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

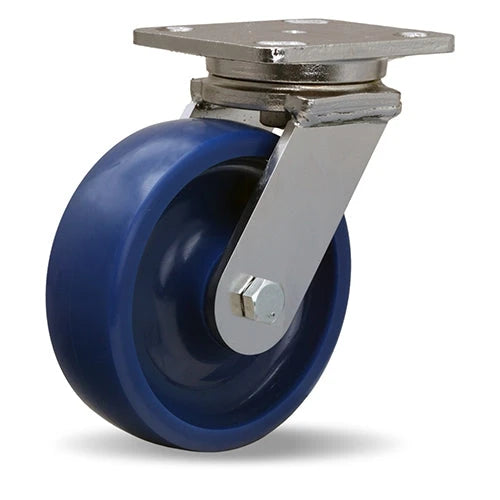

Introducing the S-WHS-6UYZ Hamilton Stainless Steel Workhorse Swivel Caster: a robust and durable solution for your mobility needs. This caster boasts a 6" x 2" Unilast Solid Polyurethane (75D) Wheel ensuring smooth movement and longevity.
Perfect for industrial applications, our caster is corrosion-resistant thanks to its stainless steel construction. The 3/4" Delrin Bearing ensures minimal friction and maximum load-bearing capabilities.
From warehouses to manufacturing units, the S-WHS-6UYZ Hamilton Swivel Caster is your top choice for reliable, efficient movement.
Note: Add this high-quality caster to your cart and enjoy seamless operations for years to come.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Made from robust Stainless Steel, this caster stands out for its unmatched durability. Its corrosion-resistant properties make it an ideal choice for challenging environments and heavy-duty applications.
Featuring a 6" x 2" Unilast Solid Polyurethane (75D) Wheel, it promises smooth and efficient movement, making it the preferred choice for industrial and commercial uses. The wheel's polyurethane composition ensures it's resistant to wear and tear.
With a reliable 3/4" Delrin Bearing, the caster offers reduced friction and smoother rotations. The swivel functionality further enhances maneuverability, proving ideal for spaces that demand flexibility and ease of movement.
Not only is this caster suitable for a wide range of weight capacities, but its versatile design also ensures compatibility with various floor surfaces. Whether it's for warehouses, workshops, or retail spaces, the S-WHS-6UYZ Hamilton Stainless Steel Swivel Caster is a top mobility solution.
Note: For any further queries or assistance, our Caster Gurus are on standby to provide expert advice.
This Hamilton S-WHS-6UYZ 6" x 2" Unilast Swivel Stainless Caster – CasterHQ is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 5" plate and a 2-5/8" x 3-5/8" and 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -50°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$573.00
| Identification | |
|---|---|
| Part Number / SKU | S-WHS-6UYZ |
| Replacement Wheel Part No | W-620-UYZ-3/4 |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 7-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-1/8" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 2-1/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 5" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" and 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Polyurethane |
| Wheel Color | Royal Blue |
| Bearing Type | Delrin Bearing |
| Axle Diameter | 1/2" |
| Construction | |
| Frame / Finish | Stainless |
| Temperature Range | -50°F to 180°F |
| Unit Weight | 9 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 900 lbsLighter duty | 6" × 2"Polyurethane | Rigid | 7-1/2" | $23.00 | View → | |
| 900 lbsLighter duty | 6" × 2"Polyurethane | Swivel | 7-1/2" | $70.00 | View → | |
| 1000 lbs | 6" × 2"Polyurethane | Swivel | 7-1/2" | $573.00 | Viewing | |
| 1000 lbsSame capacity | 6" × 2"Blue Solid Polyurethane | — | 7-1/2" | $182.00 | View → | |
| 1200 lbsHeavier duty | 6" × 2"Semi-Steel | Rigid | 7-1/2" | $40.00 | View → |
