All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Wheel = wheel diameter · capacity is per caster.


































| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Polyurethane | Aluminum and Polyolefin | 4, 5, 6 and 8 in | 700 to 1,250 lb | -40°F to 180°F | quiet, floor-friendly and long wearing |
| Cast iron | 6 and 8 in | 2,000 to 2,500 lb | -40°F to 180°F | heat, chips and heavy loads on rough floors | |

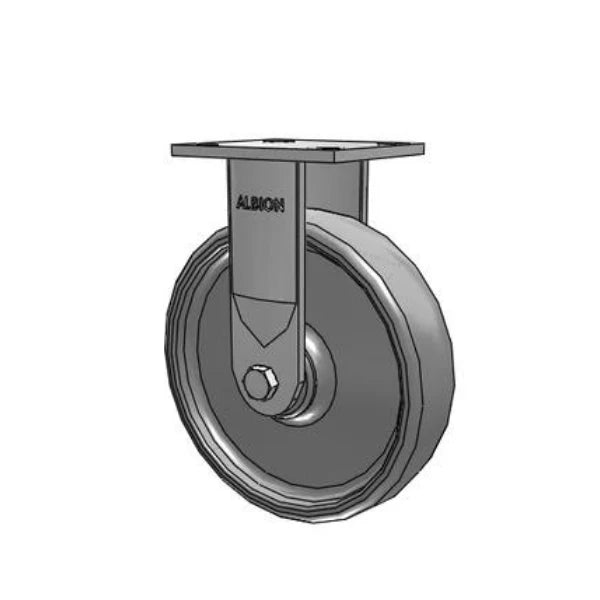

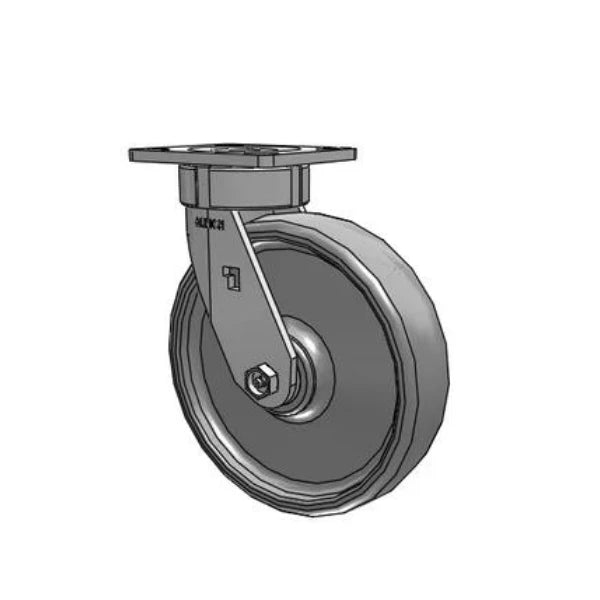

| Rubber | 8 in | 1,200 lb | -45°F to 230°F | cushioned and quiet on finished floors |
Ratings are for single casters of Albion floor protective casters w/ polyurethane wheels, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 4 x 2 in | polyurethane | 600 to 1,000 lb |
| 5 x 2 in | polyurethane | 750 to 1,050 lb |

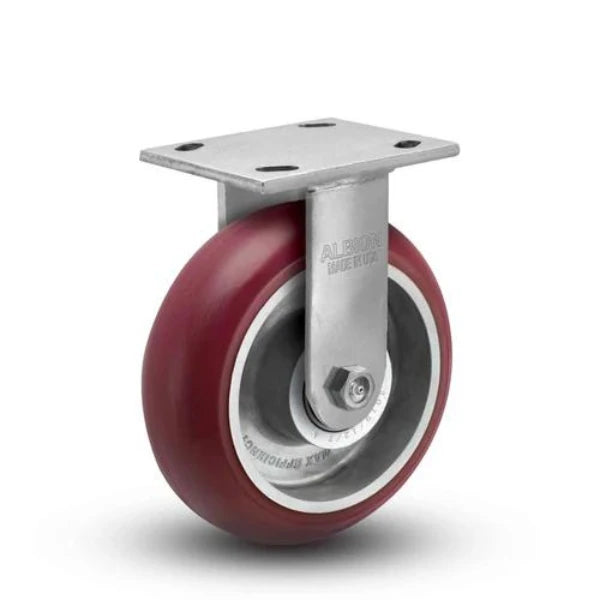

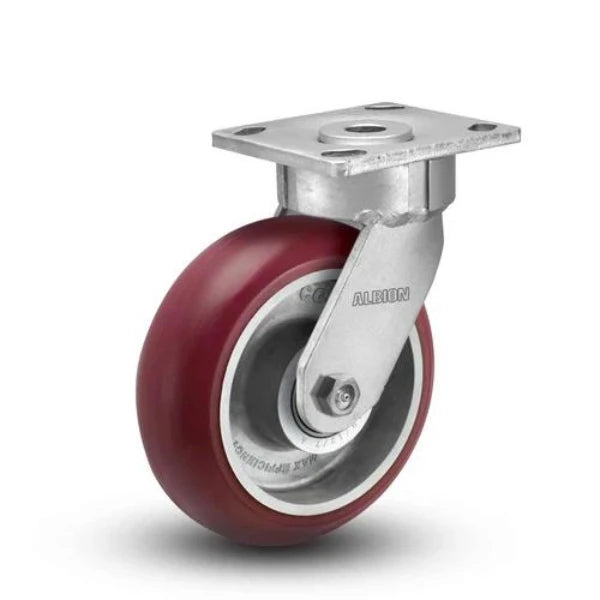

| 6 x 2 in | polyurethane | 900 to 1,250 lb |
| 6 x 3 in | cast iron | 2,000 lb |

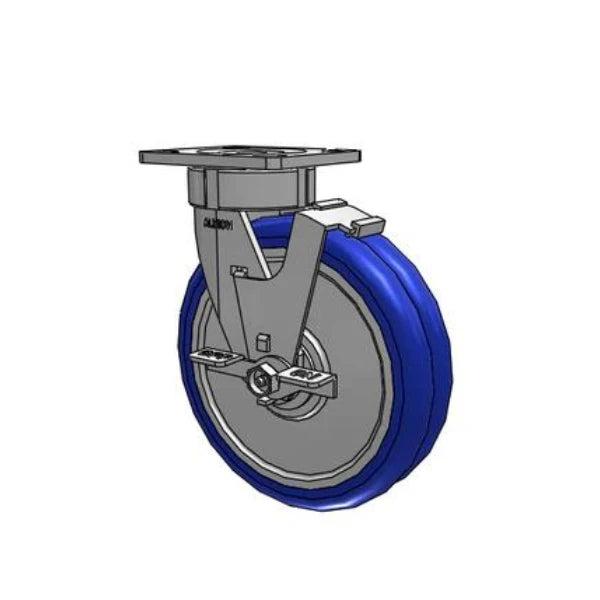

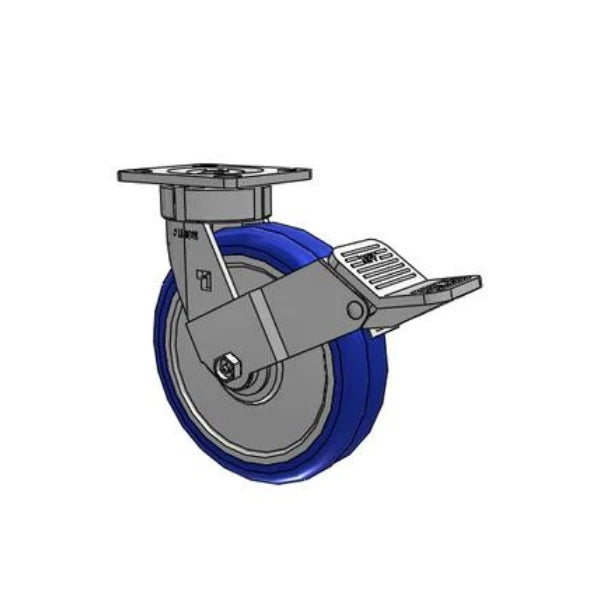

| 8 x 2 in | polyurethane and rubber | 1,000 to 1,500 lb |
| 8 x 3 in | cast iron | 2,500 lb |
| 10 x 3 in | cast iron and polyurethane | 3,000 lb |

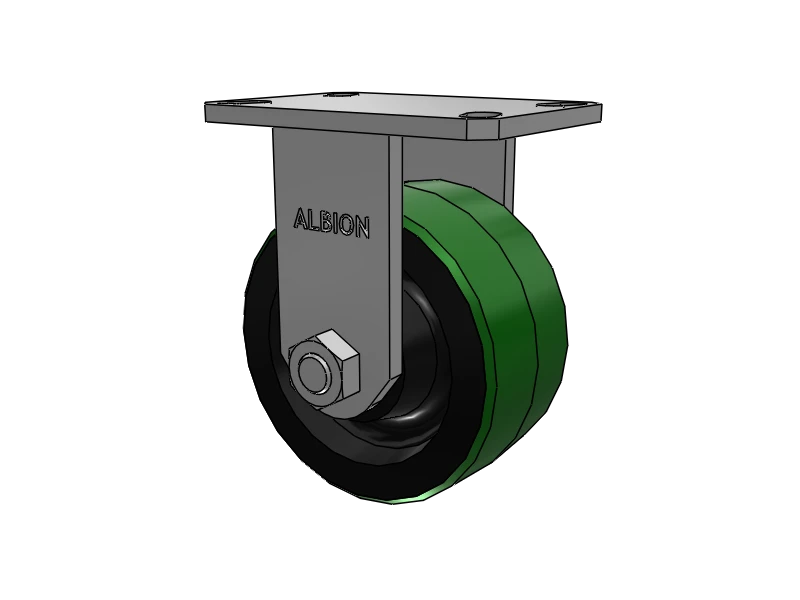

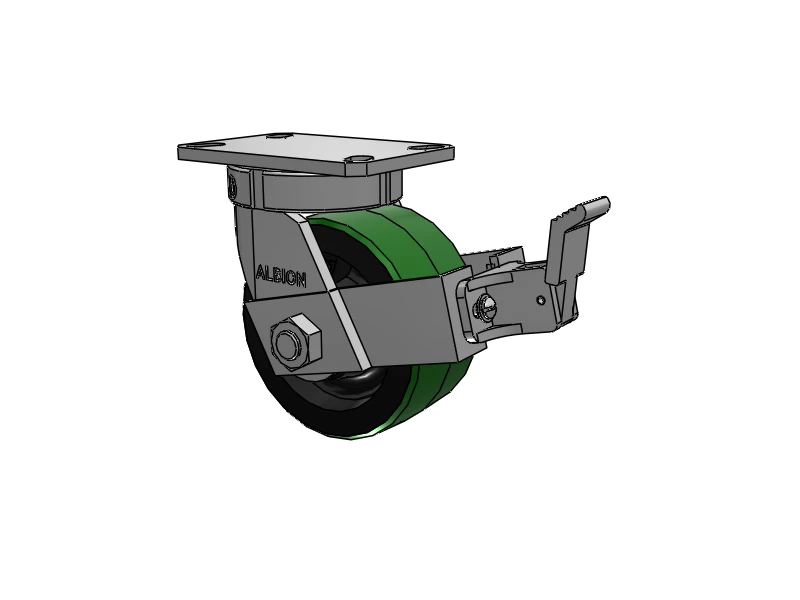

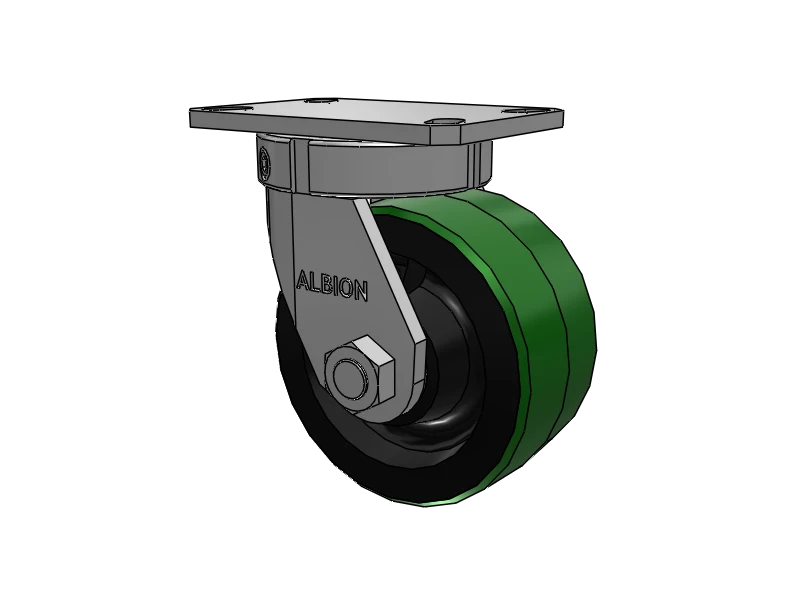

Related to Albion floor protective casters w/ polyurethane wheels: 6 x 3 in poly-on-iron casters.
Single Albion floor protective casters w/ polyurethane wheels are rated 700 to 2,500 lb; most fall between 1,000 and 1,250 lb.
Most Albion floor protective casters w/ polyurethane wheels use 4 x 4-1/2 in. Other plates on Albion floor protective casters w/ polyurethane wheels: 4-1/2 x 6-1/4 in and 3-3/8 x 5-1/4 in.
Polyurethane leads on Albion floor protective casters w/ polyurethane wheels, rated 700 to 1,250 lb per caster. Among Albion floor protective casters w/ polyurethane wheels, cast iron is next at 2,000 to 2,500 lb.
