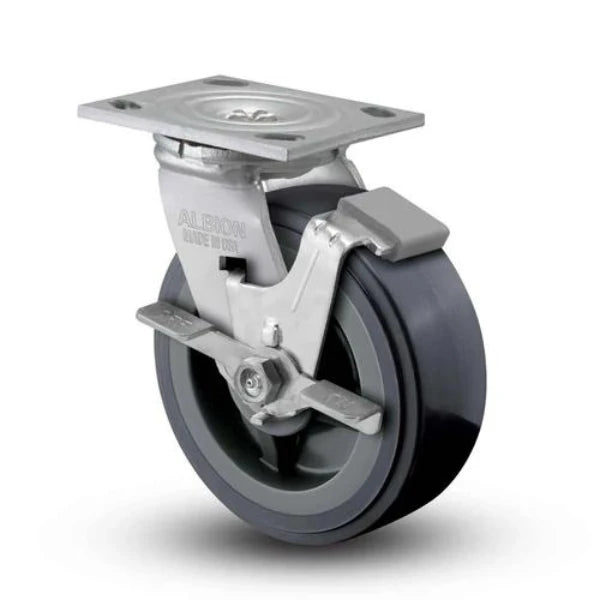

Ensure maximum stability and protection for your equipment with the Albion Casters 6" x 2" USA-Rig Side Locking Caster. This caster is equipped with a durable thermoplastic polyurethane (TPU) wheel that is designed to protect floors from damage while providing smooth, quiet movement. The side locking mechanism guarantees a secure hold, making it ideal for applications where stationary positioning is critical. Perfect for industrial environments, this caster's 4" x 4.5" top plate and robust construction deliver reliable performance under heavy loads. Proudly made in the USA, this caster combines quality and innovation for superior mobility solutions.
Upgrade your mobility solutions with the Albion Casters USA-Rig Side Locking Caster. Experience the perfect blend of durability, floor protection, and secure positioning with this premium, American-made caster.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 6" x 2" USA-Rig Side Locking Caster with Floor Protective TPU Wheel and 4" x 4.5" Top Plate - 16XA06201SFBA is the ultimate solution for industrial environments that demand both durability and floor protection. Engineered with precision, this caster features a thermoplastic polyurethane (TPU) wheel that is designed to prevent floor damage while providing smooth and quiet mobility, even under heavy loads.
This Albion Casters side locking caster is perfect for use in a wide range of industrial settings where floor protection and stability are paramount. It is particularly suited for:
Invest in the Albion Casters 6" x 2" USA-Rig Side Locking Caster for enhanced durability, superior floor protection, and reliable performance. Optimize your operations with a caster that delivers the quality and functionality your business demands.
This Albion 16XA06201SFBA 6" x 2" TPU Side Lock Caster – 4" x 4.5" Plate is rated to 900 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7.25". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$55.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Overall Height | 7.25" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 900 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
