Our Polyolefin wheels are not just products; they are a blend of quality and innovation. They are crafted to provide a balance between capacity and suitable environmental adaptability. These wheels, especially our Extra Heavy Duty Polyolefin models (prefix RK), offer a unique combination of durability and efficiency for various applications.
Your satisfaction is our priority. We are committed to delivering not just a product, but an experience. Our team of experts is available to assist with any queries or specific requirements you might have. We ensure that every wheel rolls out with a promise of quality and reliability.
Discover our Caster Fork collection featuring a double ball raceway with 5/8” kingbolt, offering enhanced stability and maneuverability. Our range includes various wheel, bearing, and brake options, including total-locking casters in the DT and FT series. Each caster fork boasts a bright zinc finish and is designed for easy maintenance with a grease fitting in the raceway and axle. The majority of our series and wheel types are NSF listed, ensuring top quality and safety.
Our wheels are crafted from solid injection molded polyolefin, ensuring high shock load capacity, impact, and abrasion resistance. They are economical, lightweight, yet support high weight capacities. These 100% washable wheels are impervious to water and highly resistant to organic solvents, oil, grease, most chemicals, acids, and cleaning solutions. Available in both white and black, these non-marking materials come in several designs. With a durometer of 65D ± 5 and a temperature range of -40°F to 180°F, they are perfect for a wide range of applications.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

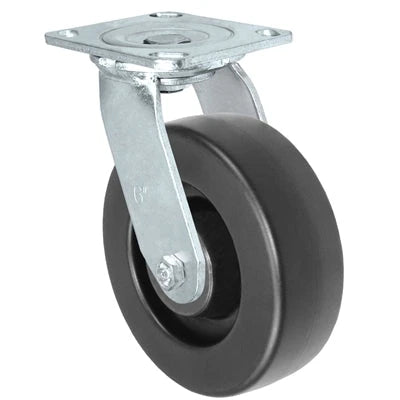

Introducing our robust 6x2 Inch Polyolefin Wheel Swivel Caster, the ultimate solution for your industrial and commercial mobility needs. With the ability to support up to 700 lbs, this caster is designed for high performance and reliability in the most demanding environments.
Our 6x2 Inch Polyolefin Wheel Swivel Caster is not just strong and durable, but also designed for maximum ease of use and versatility. Ideal for moving heavy equipment in warehouses or providing reliable support for retail displays, this caster delivers unmatched performance and trustworthiness.
This 6" x 2" Polyolefin Swivel Caster – 700 lb is rated to 700 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyolefin wheel with a 2" tread width. Polyolefin is economical, lightweight, washable, and resists water, oils, and many chemicals while carrying solid loads on smooth floors.

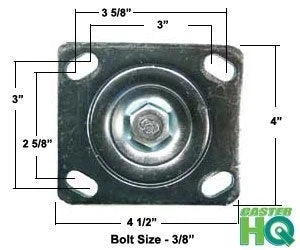

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyolefin wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$25.00
| Identification | |
|---|---|
| SKU | HQ2060S-PL1-HPR |
| Core | |
| Capacity | 700 lbs |
| Diameter | 6" |
| Width | 2" |
| Floor to top of mounting plate (or stem shoulder).OAHFloor to top of mounting plate (or stem shoulder). | 7-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Mounting | |
| Mount | Plate |
| Plate | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.BHPCenter-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Mounting Bolt | 3/8" |
| Wheel | |
| Material | Polyolefin |
| Wheel Core | Solid Polyolefin |
| Tread | Flat |
| Wheel tread hardness. Shore D is hard; Shore A is softer.DurometerWheel tread hardness. Shore D is hard; Shore A is softer. | 65D ± 5 |
| Bearing | Precision Sealed Ball Bearings |
| Axle | 1/2" |
| Construction | |
| The swivel bearing path in the horn; the kingbolt is the center pivot pin.RacewayThe swivel bearing path in the horn; the kingbolt is the center pivot pin. | Double ball raceway with 5/8" kingbolt |
| Frame | Zinc Plated Steel |
| Temp Range | -40°F to 180°F |
| Weight | 6.0 lb |
Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 550 lbsLighter duty | 6" × 2"Rubber | — | 7-1/2" | $164.00 | View → | |
| 600 lbsLighter duty | 6" × 2"Gray Rubber | Rigid | 7-1/2" | $31.00 | View → | |
| 700 lbs | 6" × 2"Polyolefin | Swivel | 7-1/2" | $25.00 | Viewing | |
| 700 lbsSame capacity | 6" × 2"Cast Iron | — | 7-1/2" | $151.00 | View → | |
| 900 lbsHeavier duty | 6" × 2"Polyurethane | Rigid | 7-1/2" | $23.00 | View → |
