Contractor cart casters are 1,500 lb polyurethane kingpinless casters for prefab shop carts and 8″ flat-free all-terrain casters for jobsite carts, chosen because they survive concrete, gravel and door thresholds without a flat or a broken kingpin. CasterHQ stocks what mechanical, electrical and HVAC contractors reorder: 5″ x 2″ polyurethane-on-nylon kingpinless casters, 8″ flat-free all-terrain swivel and rigid casters, 6″ x 2″ phenolic 1,250 lb casters, drywall cart sets, jobsite box casters and HVAC dollies. Card checkout, no PO required, same-day shipping from Mansfield, Texas.

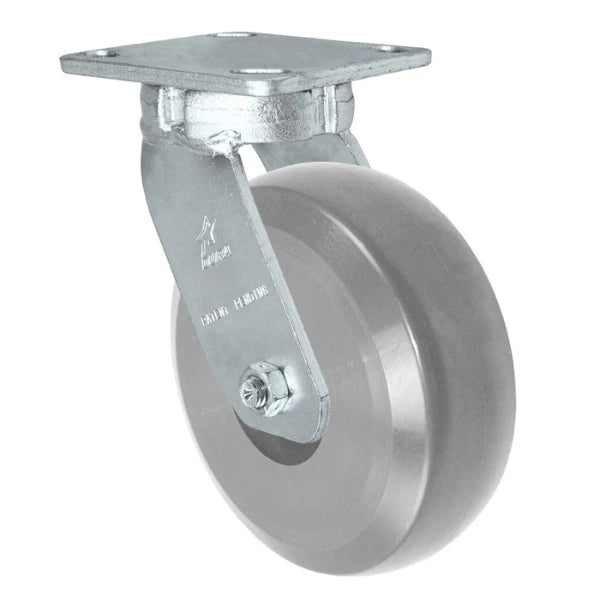

The 5″ x 2″ polyurethane-on-nylon swivel kingpinless caster rated 1,500 lb is the prefab shop standard: one national mechanical contractor with a 130,000 sq ft prefab shop reorders it 80 to 120 at a time. The kingpinless raceway has no rivet to loosen under vibration, and the poly tread protects the shop floor while it carries a loaded spool cart.
Pair it with a rigid version, or a 6″ x 2″ ergonomic polyurethane swivel where crews push long spool runs; the larger diameter cuts push force on a full cart.

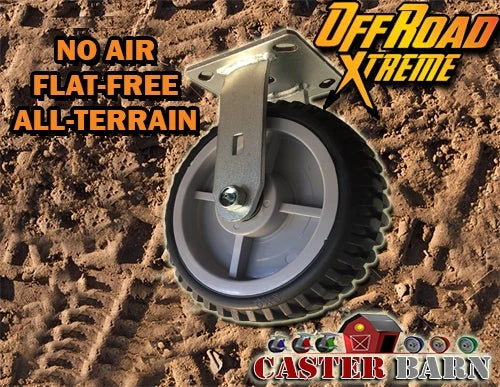

The 8″ flat-free all-terrain caster, 275 lb each, in matched swivel and rigid pairs. Electrical and HVAC contractors on this page buy 30 to 40 pairs per order for reel dollies and material carts because the foam-filled tire never goes flat, rolls over gravel and thresholds, and does not mark finished floors once the cart comes inside.
For heavier jobsite loads, the 8″ x 3″ foam-filled polyurethane flat-free caster carries 275 lb per wheel with a wider footprint; 10″ pneumatic casters carry 350 lb where air pressure is acceptable.

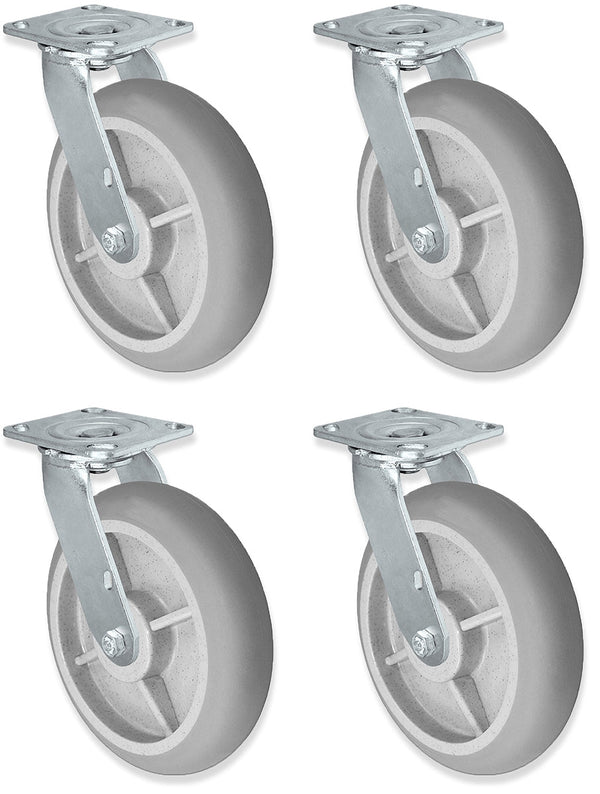

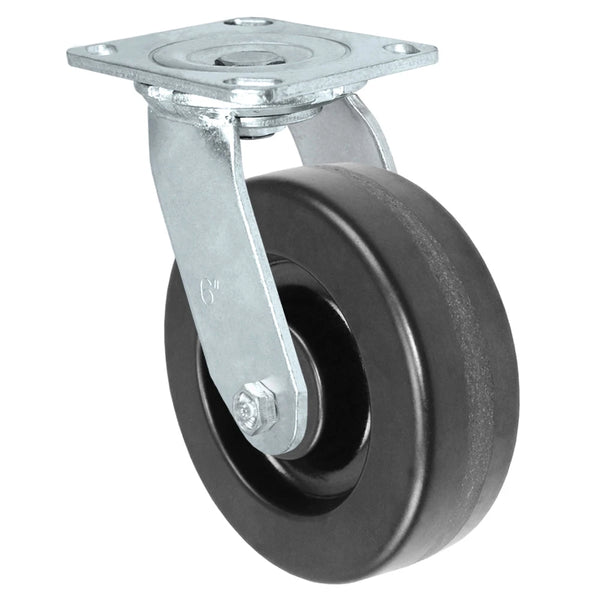

Drywall and duct carts run 8″ x 2″ TPR swivel casters in a set of four rated 2,800 lb total: the larger wheel clears door thresholds and elevator gaps, and the rubber tread stays quiet in occupied buildings. Conduit and strut carts use 6″ x 2″ phenolic swivels at 1,250 lb each when the load sits on a short deck.
One mechanical contractor bought 100 of the 6″ x 2″ phenolic swivels for shop and site carts in a single order; phenolic is the low-cost choice when floor marking does not matter.
Kingpinless. A standard swivel caster hangs on a kingpin rivet that loosens under the vibration and shock of a loaded cart crossing floor seams all day; the caster starts to shimmy and eventually fails. A kingpinless caster runs the load on a machined raceway with no kingpin, so it is the right spec for any cart that rolls every shift.
The 5″ x 2″ poly-on-nylon kingpinless caster on this page is rated 1,500 lb on a 4″ x 4-1/2″ top plate, the same bolt pattern as the phenolic and semi-steel casters, so a shop can standardize one plate across every cart.
Add the cart weight, divide by 3 and multiply by 1.25. A 1,200 lb pipe load on a 250 lb cart is 1,450 lb: 1,450 ÷ 3 × 1.25 = 604 lb per caster, so the 5″ x 2″ kingpinless at 1,500 lb runs at 40 percent of rating, which is where a cart that rolls every shift should sit.
Rated capacity is per-caster at ideal conditions. For carts and dollies, apply a 33% safety derate to account for uneven floors. Spool carts also see rolling shock from thresholds, which is why running at half of rating is the norm in prefab shops.
| Specification | Value |
|---|---|
| Wheel Diameter | 4″ to 10″ |
| Load Capacity | Up to 2,500 lb per caster; flat-free all-terrain 275 lb |
| Wheel Materials | Polyurethane-on-nylon, flat-free foam, TPR, phenolic, semi-steel |
| Tread Width | 1-1/4″ to 3″ |
| Mount Types | 4″ x 4-1/2″ top plate, 4-1/2″ x 6-1/4″ top plate |
| Bearing Type | Precision ball, roller |

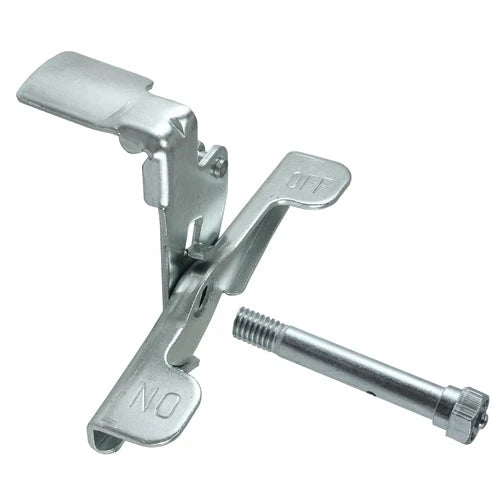

| Brake Options | Top lock, total lock, bolt-on top lock brake kits |
| Finish | Zinc plated |
| Feature | Flat-Free All-Terrain | Pneumatic (Air-Filled) |
|---|---|---|
| Load per caster | 275 lb (8″) | 350 lb (10″) |
| Flats | Never | Punctures and slow leaks |
| Ride on gravel | Firm | Softest |
| Maintenance | None | Check pressure |
| Indoor floor marking | Non-marking | Non-marking |
| Best for | Reel dollies, material carts | HVAC units, heavy dollies |
Engineer Tip: 4 Contractor Cart Mistakes We See Weekly
Based on CasterHQ engineering field data from mechanical, electrical and HVAC contractor installations.
Every caster in this collection was ordered by a mechanical, electrical, HVAC, fence or finish-trade contractor in the last 12 months, in quantity, through card checkout. We rank the collection by what those contractors reorder, verify dynamic load ratings against the ICWM performance standard for casters and wheels, and stock every SKU in Mansfield, Texas.
