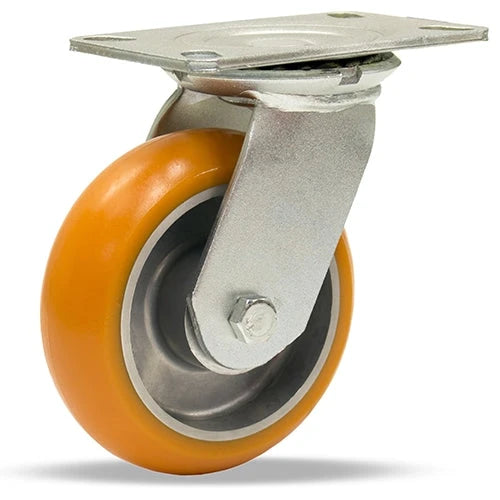

This Hamilton S-626-EMB 6" x 2" Polyurethane Swivel Caster – 800 lb is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

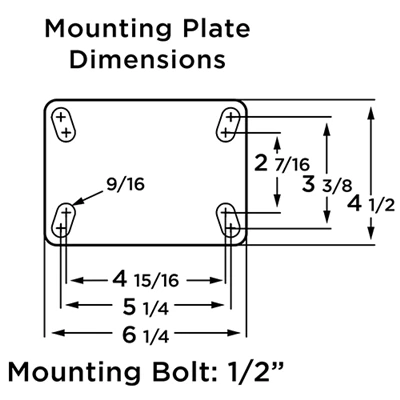

This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$132.00
| Identification | |
| Brand | Hamilton |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
6" x 2" Polyurethane Rigid Caster 4" x 4-1/2" Plate – 900 lb | CasterHQ
6" x 2" · 900 lbs
$23
6" x 2" Gray Iron Spring Loaded Caster – 700 lb | CasterHQ
6" x 2" · 700 lbs
$151
6" x 2" Thermo Rubber Rigid Caster – 600 lb | 4" x 4-1/2" Plate | CasterHQ
6" x 2" · 600 lbs
$31
View all 6′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 600 lbsLighter duty | 6" × 2"Gray Rubber | Rigid | 7-1/2" | $31.00 | View → | |
| 700 lbsLighter duty | 6" × 2"Cast Iron | — | — | $151.00 | View → | |
| 800 lbs | 6" × 2"Polyurethane | Swivel | — | $132.00 | Viewing | |
| 900 lbsHeavier duty | 6" × 2"Polyurethane | Rigid | 7-1/2" | $23.00 | View → | |
| 1000 lbsHeavier duty | 6" × 2"Blue Solid Polyurethane | — | — | $182.00 | View → |
