Industrial Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 12 inTread: 2-1/2 to 3 inCapacity: 2,200 to 2,600 lb per casterPlate sizes: 5-1/4 x 7-1/4
This page lists 13 cast iron casters with 6 to 12 in wheels, rated 2,200 to 2,600 lb each, made by Hamilton. The common top plate is 5-1/4 x 7-1/4 in, in both swivel and rigid and without brakes. Two examples are a Hamilton 6 x 3 in metal rigid caster rated 2,500 lb and a Hamilton S-CH-83MB 8 x 3 in metal swivel caster rated 2,600 lb. Temperature ratings sit at -40°F to 320°F for most of the page.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

2600 lbs
TieredPricing
Hamilton Champion Swivel Caster with 8" x 3" Metal Wheel with 3/4" Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-CH-83MB 8" x 3" Metal Swivel Caster – 2600 lb
Part # S-CH-83MB
from $363.00
Volume pricing available
Cast IronPlate
Load rating
2600 lbs
Size8" x 3"
Capacity2600 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeSwivel
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Champion Swivel Caster with 8" x 3" Metal Wheel with 3/4" Precision Ball...
Shop Product
2200 lbs
TieredPricing
Hamilton Champion Swivel Caster with 6" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 2-1/2" Metal Swivel Caster – 2,200 lb
Part # S-CH-6MH
from $354.00
Volume pricing available
Cast IronPlate
Load rating
2200 lbs
Size6" x 2-1/2"
Capacity2200 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range Up to 800°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Champion Swivel Caster with 6" x 2 1/2" Metal Wheel with 1" Straight...
Shop Product
2500 lbs
TieredPricing
Hamilton Champion Swivel Caster with 6" x 3" Metal Wheel with 3/4" Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 3" Metal Swivel Caster – 2,500 lb
Part # S-CH-63MB
from $331.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size6" x 3"
Capacity2500 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeSwivel
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range Up to 800°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Champion Swivel Caster with 6" x 3" Metal Wheel with 3/4" Precision Ball...
Shop Product
2600 lbs
TieredPricing
Hamilton Champion Swivel Caster with 10" x 3" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton CH-13MH 10" x 3" Metal Swivel Caster – 2600 lb
Part # S-CH-13MH
from $398.00
Volume pricing available
Cast IronPlate
Load rating
2600 lbs
Size10" x 3"
Capacity2600 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeSwivel
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Champion Swivel Caster with 10" x 3" Metal Wheel with 1" Straight Roller...
Shop Product
2500 lbs
TieredPricing
Hamilton Champion Swivel Caster with 12" x 3" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 12" x 3" Metal Swivel Kingpinless Caster – 2500 lb
Part # S-CH-12MH
from $525.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size12" x 3"
Capacity2500 lbs
WheelCast Iron
MountPlate
TypeSwivel
More Details Less Details
Width 3"
Rig Type Swivel
Brake No Brake
Hamilton Champion Swivel Caster with 12" x 3" Metal Wheel with 1" Straight Roller...
Shop Product
2500 lbs
TieredPricing
Hamilton Champion Swivel Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton CH-12SWF70D 10" x 2 1/2" Metal Swivel Caster – 2500 lb
Part # S-CH-10MH
from $449.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size10" x 2-1/2"
Capacity2500 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Platinum Powder
Hamilton Champion Swivel Caster with 10" x 2 1/2" Metal Wheel with 1" Straight...
Shop Product
2500 lbs
TieredPricing

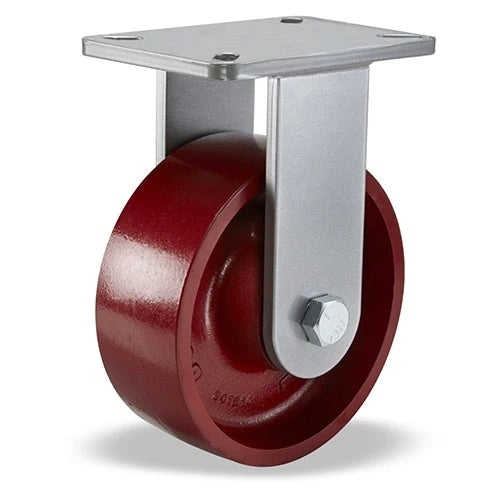

Hamilton Champion Rigid Caster with 8" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-CH-8MH 8" x 2 1/2" Metal Rigid Caster – 2500 lb
Part # R-CH-8MH
$247.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size8" x 2-1/2"
Capacity2500 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 2-1/2"
Height 10-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Champion Rigid Caster with 8" x 2 1/2" Metal Wheel with 1" Straight...
Shop Product
2600 lbs
TieredPricing
Hamilton Champion Rigid Caster with 8" x 3" Metal Wheel with 3/4" Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-CH-83MB 8" x 3" Metal Rigid Caster – 2600 lb
Part # R-CH-83MB
$255.00
Volume pricing available
Cast IronPlate
Load rating
2600 lbs
Size8" x 3"
Capacity2600 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Champion Rigid Caster with 8" x 3" Metal Wheel with 3/4" Precision Ball...
Shop Product
2200 lbs
TieredPricing
Hamilton Champion Rigid Caster with 6" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 2 1/2" Metal Rigid Caster – 2,200 lb
Part # R-CH-6MH
$196.00
Volume pricing available
Cast IronPlate
Load rating
2200 lbs
Size6" x 2-1/2"
Capacity2200 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 2-1/2"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range Up to 800°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Champion Rigid Caster with 6" x 2 1/2" Metal Wheel with 1" Straight...
Shop Product
2500 lbs
TieredPricing
Hamilton Champion Rigid Caster with 6" x 3" Metal Wheel with 3/4" Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 3" Metal Rigid Caster – 2,500 lb
Part # R-CH-63MB
$212.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size6" x 3"
Capacity2500 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range Up to 800°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Champion Rigid Caster with 6" x 3" Metal Wheel with 3/4" Precision Ball...
Shop Product
2600 lbs
TieredPricing
Hamilton Champion Rigid Caster with 10" x 3" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton CH-13MH 10" x 3" Metal Rigid Caster – 2600 lb
Part # R-CH-13MH
$275.00
Volume pricing available
Cast IronPlate
Load rating
2600 lbs
Size10" x 3"
Capacity2600 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Champion Rigid Caster with 10" x 3" Metal Wheel with 1" Straight Roller...
Shop Product
2500 lbs
TieredPricing
Hamilton Champion Rigid Caster with 12" x 3" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 12" x 3" Metal Rigid Caster – 2500 lb
Part # R-CH-12MH
$348.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size12" x 3"
Capacity2500 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 3"
Height 15-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Champion Rigid Caster with 12" x 3" Metal Wheel with 1" Straight Roller...
Shop Product
2500 lbs
TieredPricing
Hamilton Champion Rigid Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton CH-10MH 10" x 2 1/2" Metal Rigid Caster – 2500 lb
Part # R-CH-10MH
$309.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size10" x 2-1/2"
Capacity2500 lbs
WheelCast Iron
MountPlate 5-1/4" x 7-1/4"
TypeRigid
More Details Less Details
Width 2-1/2"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Platinum Powder
Hamilton Champion Rigid Caster with 10" x 2 1/2" Metal Wheel with 1" Straight...
Shop Product

Champion Caster Series with Metal Wheels

With one of the industry's largest lines of metal wheels (most are cast iron, a few of the smaller sizes sintered iron), Hamilton has come to be known as the first place to go for new or replacement metal wheels. In the last three years, the most popular metal wheel sizes have been upgraded with larger hubs and less scrap metal content to represent the most durable and highest quality metal wheels in the industry.

Search
