Nylon Casters - Nylast Swivel

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 12 inTread: 3 to 4 inCapacity: 5,000 to 10,000 lb per casterPlate sizes: 6-1/2 x 7-1/2
This page lists ten phenolic casters with 6 to 12 in wheels, rated 5,000 to 10,000 lb each, made by Hamilton. The top plate is 6-1/2 x 7-1/2 in on all of them, and you can pick swivel or rigid, and none has a brake. Picks range from a Hamilton EPSD-124NYB 12 x 4 in Nylast rigid caster rated 6,000 lb to a Hamilton 12 x 4 in Nylast swivel super duty caster rated 10,000 lb. The usual temperature rating here is up to 250°F.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

7200 lbs
TieredPricing
Hamilton Enhanced Precision Super Duty Swivel Caster featuring HPI Swivel Technology with 8" x 3" Nylast High Performance Cast Nylon Wheel with 1" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-EPSD-83NYB 8" x 3" Nylast Swivel Caster – 7200 lb
Part # S-EPSD-83NYB
from $886.00
Volume pricing available
PhenolicPlate
Load rating
7200 lbs
Size8" x 3"
Capacity7200 lbs
WheelPhenolic
MountPlate 6-1/2" x 7-1/2"
TypeSwivel
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Enhanced Precision Super Duty Swivel Caster featuring HPI Swivel Technology with 8" x...
Shop Product
5000 lbs
TieredPricing
Hamilton Enhanced Precision Super Duty Swivel Caster featuring HPI Swivel Technology with 6" x 3" Nylast High Performance Cast Nylon Wheel with 1" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-EPSD-63NYB 6" x 3" Nylast Swivel Caster – 5000 lb
Part # S-EPSD-63NYB
from $718.00
Volume pricing available
PhenolicPlate
Load rating
5000 lbs
Size6" x 3"
Capacity5000 lbs
WheelPhenolic
MountPlate 6-1/2" x 7-1/2"
TypeSwivel
More Details Less Details
Width 3"
Height 8-1/2"
Bolt Pattern 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Enhanced Precision Super Duty Swivel Caster featuring HPI Swivel Technology with 6" x...
Shop Product
8200 lbs
TieredPricing
Hamilton Enhanced Precision Super Duty Swivel Caster with 10" x 3" Nylast High Performance Cast Nylon Wheel with 1 1/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton EPSD-13NYB 10" x 3" Nylast Swivel Caster – 8200 lb
Part # S-EPSD-13NYB
from $1,054.00
Volume pricing available
PhenolicPlate
Load rating
8200 lbs
Size10" x 3"
Capacity8200 lbs
WheelPhenolic
MountPlate 6-1/2" x 7-1/2"
TypeSwivel
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Enhanced Precision Super Duty Swivel Caster with 10" x 3" Nylast High Performance...
Shop Product
10000 lbs
TieredPricing
Hamilton Enhanced Precision Super Duty Swivel Caster with 12" x 4" Nylast High Performance Cast Nylon Wheel with 1" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 12" x 4" Nylast Swivel Super Duty Caster – 10000 lb
Part # S-EPSD-124NYB
from $1,639.00
Volume pricing available
PhenolicPlate
Load rating
10000 lbs
Size12" x 4"
Capacity10000 lbs
WheelPhenolic
MountPlate 6-1/2" x 7-1/2"
TypeSwivel
More Details Less Details
Width 4"
Height 15-1/2"
Bolt Pattern 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Enhanced Precision Super Duty Swivel Caster with 12" x 4" Nylast High Performance...
Shop Product
8200 lbs
TieredPricing
Hamilton Enhanced Precision Super Duty Swivel Caster with 10" x 4" Nylast High Performance Cast Nylon Wheel with 1" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton EPSD-104NYB 10" x 4" Nylast Swivel Caster – 8200 lb
Part # S-EPSD-104NYB
from $1,304.00
Volume pricing available
PhenolicPlate
Load rating
8200 lbs
Size10" x 4"
Capacity8200 lbs
WheelPhenolic
MountPlate 6-1/2" x 7-1/2"
TypeSwivel
More Details Less Details
Width 4"
Height 12-1/2"
Bolt Pattern 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Enhanced Precision Super Duty Swivel Caster with 10" x 4" Nylast High Performance...
Shop Product
7200 lbs
TieredPricing
Hamilton Enhanced Precision Super Duty Rigid Caster with 8" x 3" Nylast High Performance Cast Nylon Wheel with 1" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 8" x 3" Nylast Rigid Super Duty Caster – 7200 lb
Part # R-EPSD-83NYB
$630.00
Volume pricing available
PhenolicPlate
Load rating
7200 lbs
Size8" x 3"
Capacity7200 lbs
WheelPhenolic
MountPlate 6-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Enhanced Precision Super Duty Rigid Caster with 8" x 3" Nylast High Performance...
Shop Product
5000 lbs
TieredPricing
Hamilton Enhanced Precision Super Duty Rigid Caster featuring HPI Swivel Technology with 6" x 3" Nylast High Performance Cast Nylon Wheel with 1" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk

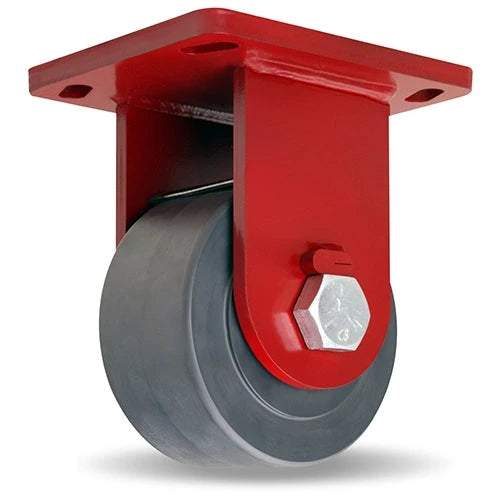

Hamilton R-EPSD-63NYB 6" x 3" Nylast Rigid Caster – 5000 lb
Part # R-EPSD-63NYB
$515.00
Volume pricing available
PhenolicPlate
Load rating
5000 lbs
Size6" x 3"
Capacity5000 lbs
WheelPhenolic
MountPlate 6-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 3"
Height 8-1/2"
Bolt Pattern 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Enhanced Precision Super Duty Rigid Caster featuring HPI Swivel Technology with 6" x...
Shop Product
8200 lbs
TieredPricing
Hamilton Enhanced Precision Super Duty Rigid Caster with 10" x 3" Nylast High Performance Cast Nylon Wheel with 1 1/4" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk

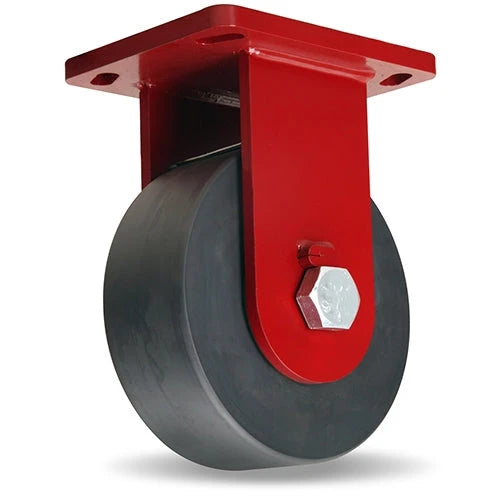

Hamilton 10" x 3" Nylast Rigid Super Duty Caster – 8200 lb
Part # R-EPSD-13NYB
$732.00
Volume pricing available
PhenolicPlate
Load rating
8200 lbs
Size10" x 3"
Capacity8200 lbs
WheelPhenolic
MountPlate 6-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Enhanced Precision Super Duty Rigid Caster with 10" x 3" Nylast High Performance...
Shop Product
6000 lbs
TieredPricing
Hamilton Enhanced Precision Super Duty Rigid Caster with 12" x 4" Nylast High Performance Cast Nylon Wheel with 1" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton EPSD-124NYB 12" x 4" Nylast Rigid Caster – 6000 lb
Part # R-EPSD-124NYB
$1,255.00
Volume pricing available
PhenolicPlate
Load rating
6000 lbs
Size12" x 4"
Capacity6000 lbs
WheelPhenolic
MountPlate 6-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 4"
Height 15-1/2"
Bolt Pattern 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Enhanced Precision Super Duty Rigid Caster with 12" x 4" Nylast High Performance...
Shop Product
8200 lbs
TieredPricing
Hamilton Enhanced Precision Super Duty Rigid Caster with 10" x 4" Nylast High Performance Cast Nylon Wheel with 1" Sealed Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton EPSD-104NYB 10" x 4" Nylast Rigid Caster – 8200 lb
Part # R-EPSD-104NYB
$1,071.00
Volume pricing available
PhenolicPlate
Load rating
8200 lbs
Size10" x 4"
Capacity8200 lbs
WheelPhenolic
MountPlate 6-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 4"
Height 12-1/2"
Bolt Pattern 3-7/8" x 6-1/4" and 5-1/8" x 5-3/4"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Enhanced Precision Super Duty Rigid Caster with 10" x 4" Nylast High Performance...
Shop Product

Enhanced Precision Caster Series with Nylast Nylon Wheels

Hamilton's Nylast wheel is made from solid cast high performance nylon. Nylast is of cast nylon, and has superior impact strength and resilience compared to conventional injection-molded nylon wheels. The Hamilton Nylast material is also specially formulated with finely divided particles of molybdenum disulphide (MoS2) to enhance its load bearing capability while maintaining the impact resistance inherent to nylon.

Other key properties of Nylast include resistance to moisture and chemicals plus floor protection resulting in a wheel well-suited for corrosive environments or applications where sanitary conditions are important. If the wheel will come in contact with specific chemicals, check out the Nylast Chemical Resistance Chart to learn if the chemicals will play nice with Nylast.

Search
