PRODUCT CODE: D4.05109.555-BRK4-SS
The Colson D4.05109.555-BRK4-SS is a 5" x 2" gray rubber plate caster rated 425 lbs per caster, mounted on a 4" x 4-1/2" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 5" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Colson on standard-duty industrial carts where bearing life and quiet roll matter more than maximum capacity. The D4.05109.555-BRK4-SS earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 5" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Colson encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The D4.05109.555-BRK4-SS is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
425 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 5" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Colson's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

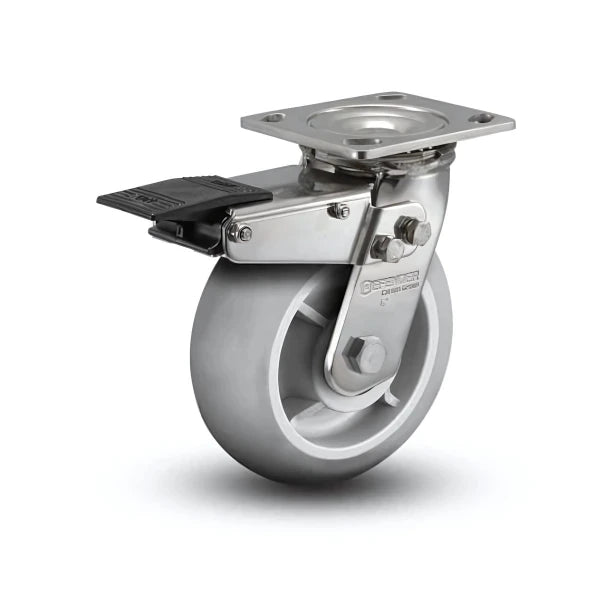

The 5" x 2" Stainless Performa Rubber (Round) Precision Ball Bearing Caster is engineered for exceptional performance in demanding environments. Featuring a robust stainless steel construction and a round rubber wheel, this caster is perfect for industrial applications where durability and reliability are essential.
Designed for longevity, the caster features FDA-approved food-grade grease, ensuring optimal performance even in extreme conditions. The stainless steel finish resists corrosion, making it suitable for both indoor and outdoor use. This caster not only provides exceptional mobility but also maintains its functionality and appearance over time.
Ideal for a wide range of applications, the 5" x 2" Stainless Performa Rubber Precision Ball Bearing Caster is perfect for use in warehouses, manufacturing plants, and commercial environments. Whether you need to transport heavy equipment, machinery, or goods, this caster is designed to handle the rigors of daily use with ease.
This product comes with a 3-year warranty, reflecting the manufacturer’s commitment to quality and customer satisfaction. Additionally, it is RoHS compliant and recognized as an NSF component (excluding thread guards), ensuring it meets industry standards for safety and performance.
Upgrade your equipment with the 5" x 2" Stainless Performa Rubber (Round) Precision Ball Bearing Caster. With its combination of high-quality materials, innovative design, and user-friendly features, this caster is an excellent investment for anyone seeking reliable mobility solutions in industrial settings. Experience the difference in performance and efficiency today!
$228.00
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Wheel Capacity | 425 lbs |
| Temp Range | -40°F to 600°F |
| Wheel Material | Gray Rubber |
| Wheel Core Material | Polyolefin |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
