The Colson D4.06109.5PN-BRK4-SS is a 6" x 2" commander hd plate-mount caster rated Supports up to 1250 lb, making it ideal for heavy per caster, mounted on a 4" x 4-1/2" Top Plate for secure attachment. plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 6" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Colson on standard-duty industrial carts where bearing life and quiet roll matter more than maximum capacity. The D4.06109.5PN-BRK4-SS earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 6" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Colson encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The D4.06109.5PN-BRK4-SS is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
Supports up to 1250 lb, making it ideal for heavy per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 6" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Colson's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

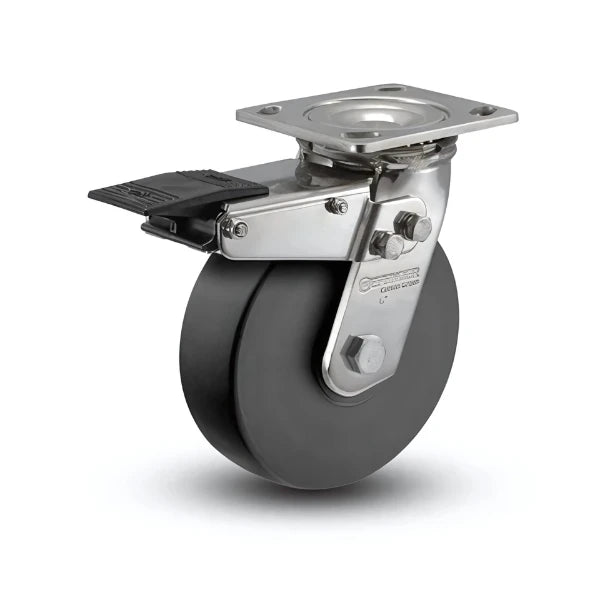

The 6" x 2" Commander HD Precision Ball Bearing Caster is engineered for heavy-duty applications, providing an ideal solution for equipment that requires durability and reliability. With a load capacity of 1250 lb, this caster is designed to handle the demands of industrial environments, ensuring smooth operation under pressure.
Constructed from heavy-duty steel, the caster features a stainless steel finish that resists corrosion and wear, extending its lifespan. The full double ball hardened raceways enhance performance and durability, while the FDA-approved food-grade grease ensures safe operation in temperature ranges from -40°F to 600°F.
The precision ball bearings provide smooth movement, making it easier to maneuver heavy loads. With a swivel radius of 6.75 inches, this caster offers excellent maneuverability, ideal for navigating tight spaces in warehouses or workshops. The total lock brake mechanism allows for secure positioning, ensuring equipment remains stationary during use.
The caster features a 4" x 4-1/2" top plate, making installation quick and straightforward. Its bolt hole pattern of 2-5/8" to 3" x 3" to 3-5/8" allows for compatibility with a variety of equipment, ensuring a secure fit for diverse applications.
Designed to operate in temperatures ranging from -30°F to +220°F, this caster is versatile enough for various environments. Backed by a 3-year warranty, customers can trust in the product's reliability and performance, giving peace of mind for their investment.
This caster is RoHS compliant and an NSF component (less thread guards), meeting essential safety and environmental standards. This commitment to quality and safety ensures that it is suitable for various industrial applications, including food service and medical environments.
The 6" x 2" Commander HD Precision Ball Bearing Caster is the perfect choice for those seeking a high-performance, durable caster that can withstand heavy loads and rigorous conditions. Upgrade your equipment with a product designed for excellence, ensuring both safety and efficiency in your operations.
This Colson D4.06109.5PN-BRK4-SS 6" x 2" Commander Hd Caster — 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$720.00
| Identification | |
| Brand | colson header |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Overall Height | 7.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 1250 lbs |
| Temp Range | -40°F to 180°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
