The Albion 95FS08709SBBL is a 8" x 4" fs plate-mount caster rated 8000 lbs per caster, mounted on a 8 1/2" x 8 1/2" top plate plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 8" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The 95FS08709SBBL earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 8" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 95FS08709SBBL is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
8000 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 8" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

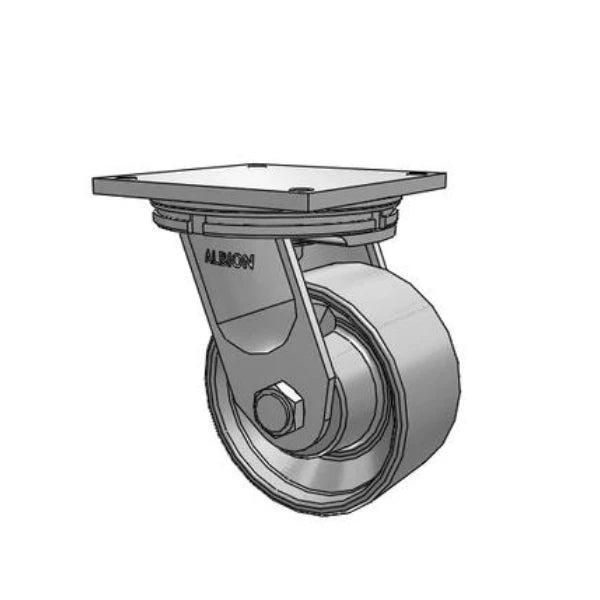

The Albion Casters 8" x 4" Industrial Line Super Duty Caster is engineered to provide exceptional strength and reliability for demanding industrial environments. Featuring a robust forged steel wheel and an expansive 8.5 x 8.5" plate, this caster is designed to handle heavy loads and ensure smooth, stable movement across various surfaces.
This Albion Caster is ideally suited for use in heavy-duty industrial environments, including manufacturing facilities, warehouses, and logistics operations. Its robust design makes it perfect for mounting on large equipment, carts, and machinery that require reliable, high-capacity wheels for smooth operation.
Albion Casters is known for its commitment to high-quality, durable products. This caster exemplifies their dedication to providing reliable solutions for demanding applications. With its super-duty construction, high load capacity, and minimal maintenance needs, it is a top choice for professionals seeking exceptional performance and longevity.
This Albion 95FS08709SBBL 8" x 4" Fs Caster — 8000 lb is rated to 8000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster uses a top-plate mount with a 8-1/2" x 8-1/2" plate and a 7" x 7" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The overall height (floor to top of plate or stem) is 11". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,312.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 4" |
| Overall Height | 11" |
| Plate Size | 8-1/2" x 8-1/2" |
| Bolt Hole Pattern | 7" x 7" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 8000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |

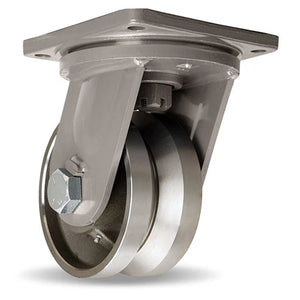

Hamilton S-MDD-84SWC95 8" x 4" UltraGlide Swivel Dual Wheel Caster – 8100 lb | CasterHQ
8" x 4" · 8100 lbs
$2,187
Hamilton MDD-84SWF70D 8" x 4" UltraGlide Rigid Dual Wheel Caster – 8700 lb | CasterHQ
8" x 4" · 8700 lbs
$1,776
Hamilton MDD-84SWF70D 8" x 4" UltraGlide Dual Wheel Swivel Caster – 8700 lb | CasterHQ
8" x 4" · 8700 lbs
$2,208
View all 8′ x 4′ casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 4500 lbsLighter duty | 8" × 4"Polyurethane | Swivel | — | Request quote | View → | |
| 5400 lbsLighter duty | 8" × 4"Polyurethane | Rigid | — | Request quote | View → | |
| 8000 lbs | 8" × 4" | Swivel | 11" | $1,312.00 | Viewing | |
| 8100 lbsHeavier duty | 8" × 4"Polyurethane | Swivel | — | $2,187.00 | View → | |
| 8700 lbsHeavier duty | 8" × 4"Polyurethane | Rigid | — | $1,776.00 | View → |
