The Albion 90CA04501SP is a 4" x 3" cast iron plate caster rated 2000 lbs per caster, mounted on a 5-1/4" x 7-1/4" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 4" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The 90CA04501SP earns its place when rough concrete and shock loading are the controlling spec. Pair 4" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 90CA04501SP is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
2000 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 4" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

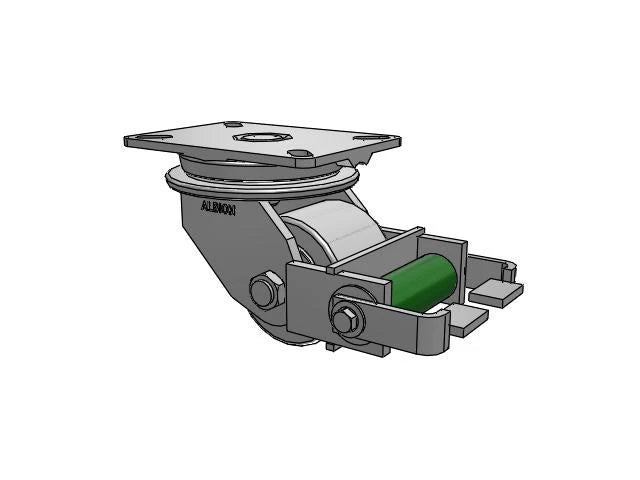

The Albion Casters HD Raceway 4" x 3" Cast Iron Wheel Caster is designed for those who demand high performance and reliability in their equipment. With its robust cast iron construction, this caster ensures durability and longevity, making it an ideal choice for industrial applications.
Albion Casters is a trusted name in the industry, known for its commitment to quality and innovation. By choosing the HD Raceway Caster, you're investing in a product designed to meet the demanding needs of today’s industrial environments. Its ability to improve mobility, enhance safety, and ensure operational efficiency sets it apart from competitors.
With a focus on customer experience, Albion Casters ensures that every product is backed by excellent service and support. Our goal is to help you find the right solution for your mobility needs, and our team is here to assist you every step of the way.
Enhance your equipment's performance with the Albion Casters HD Raceway Caster. Experience the difference in quality and reliability—order yours today!
This Albion 90CA04501SP 4" x 3" Cast Iron Caster — 2000 lb is rated to 2000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$501.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 3" |
| Overall Height | 6" |
| Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 2000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
