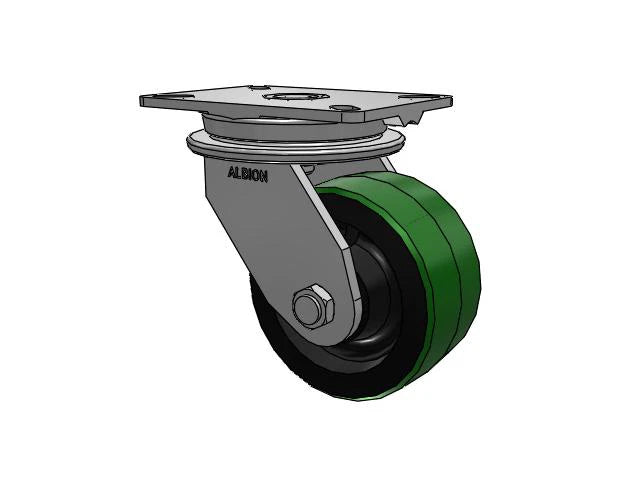

Discover the Albion Casters HD Raceway 6" x 3" Green Poly-on-Iron Caster, engineered for superior durability and performance. Featuring a robust 7.25" x 5.25" plate, this caster combines a green poly-on-iron wheel with a heavy-duty design to provide excellent load-bearing capacity and smooth movement. Ideal for industrial and commercial use, its high-quality construction ensures reduced maintenance and extended lifespan. The poly-on-iron composition offers enhanced resistance to wear, impact, and harsh environments, making it perfect for demanding applications.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters HD Raceway 6" x 3" Green Poly-on-Iron Caster is a high-performance solution designed to meet the demands of heavy-duty industrial applications. With its robust construction and innovative design, this caster provides exceptional durability, smooth movement, and reliable load-bearing capacity. Whether you're upgrading equipment or outfitting a new setup, this caster offers superior performance and long-lasting value.
The Albion Casters HD Raceway Caster delivers numerous benefits for industrial and commercial applications. Its heavy-duty load capacity ensures that it can handle demanding tasks with ease, while the poly-on-iron construction offers both durability and shock absorption. The corrosion-resistant finish adds to its longevity, making it a reliable choice for long-term use. Additionally, the caster’s easy installation and low maintenance requirements make it a practical and cost-effective solution for enhancing the performance of your equipment.
Albion Casters is renowned for its commitment to quality and innovation in caster design. By choosing the HD Raceway 6" x 3" Green Poly-on-Iron Caster, you are investing in a product that combines cutting-edge engineering with proven performance. Trust Albion Casters for your industrial and commercial needs and experience the difference that high-quality craftsmanship can make.
This Albion 90PY06509S 6" x 3" Poly-on-Iron Caster – 7.25" x 5.25" Plate is rated to 2000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

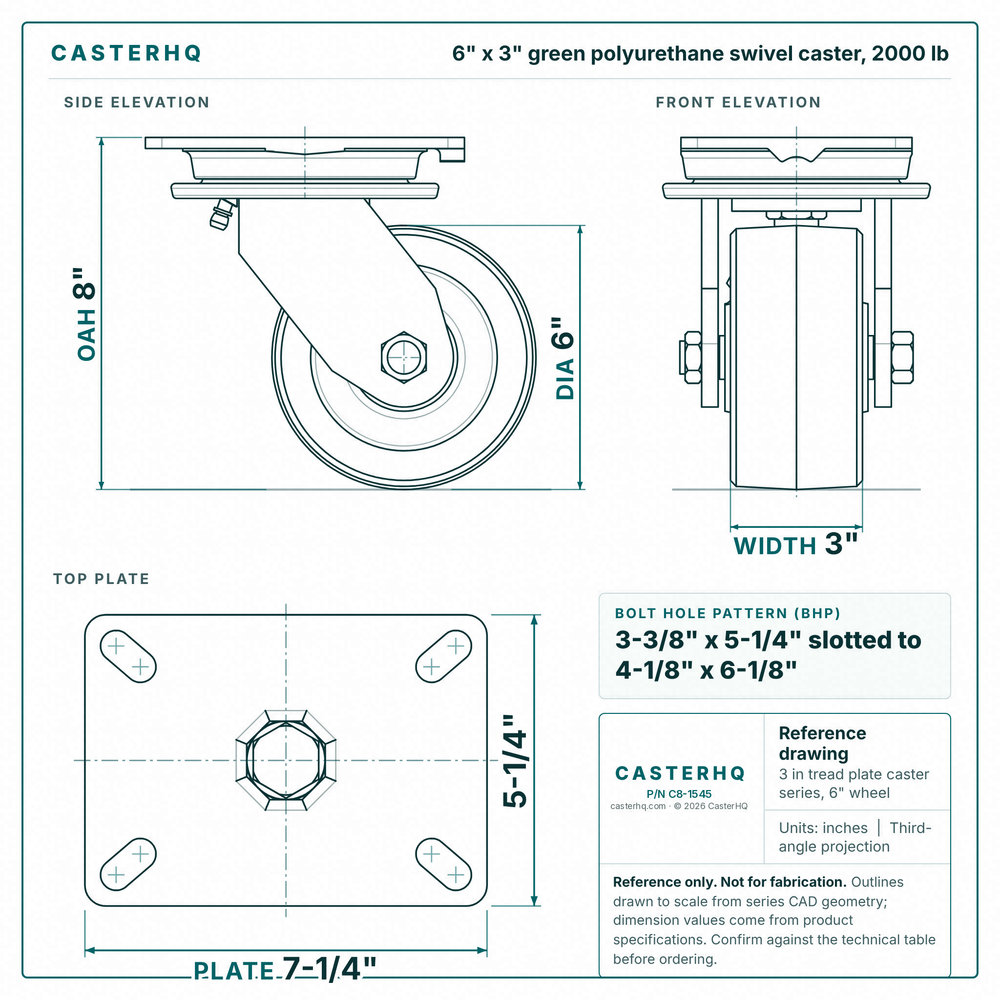

This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$504.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 3" |
| Overall Height | 8" |
| Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 2000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
6" x 3" Poly on Iron Swivel Forged Caster – 2000 lb | CasterHQ
6" x 3" · 2000 lbs
$131
6" x 3" Green Polyurethane Rigid Caster – 2,000 lb | CasterHQ
6" x 3" · 2000 lbs
$100
6" x 3" Red Polyurethane Rigid Caster – 2,000 lb | CasterHQ
6" x 3" · 2000 lbs
$185
View all 6′ x 3′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2000 lbs | 6" × 3"Cast Iron | — | 8" | $504.00 | Viewing | |
| 2000 lbsSame capacity | 6" × 3"Polyurethane | Swivel | 8" | $131.00 | View → | |
| 2000 lbsSame capacity | 6" × 3"Polyurethane | Rigid | 7-1/2" | $100.00 | View → | |
| 2000 lbsSame capacity | 6" × 3"Polyurethane | Rigid | 7-1/2" | $185.00 | View → | |
| 2000 lbsSame capacity | 6" × 3"Polyurethane | Swivel | 7-1/2" | $173.00 | View → |
