PRODUCT CODE: 90CA03709S

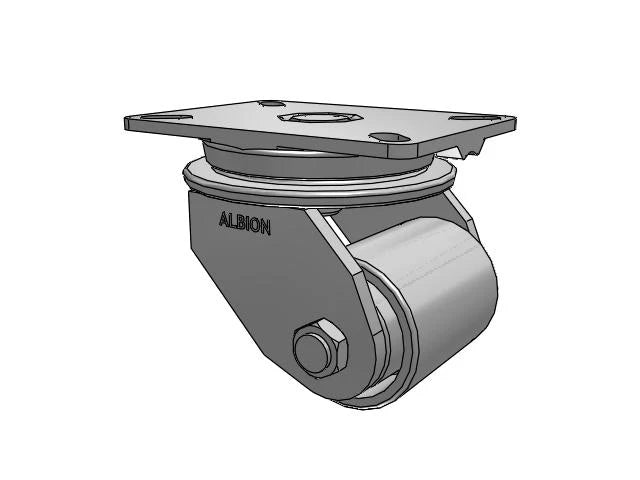

The Albion Casters HD Raceway Cast Iron Wheel Caster is engineered for strength and reliability, featuring a robust design suitable for heavy industrial applications. This caster is equipped with a large 7.25"x5.25" plate for secure mounting and a durable cast iron wheel that ensures smooth movement across various surfaces. With its high load capacity, the Albion Casters Wheel Caster is an ideal choice for enhancing the functionality and efficiency of industrial equipment.
Opt for the Albion Casters HD Raceway Cast Iron Wheel Caster for top-tier mobility in demanding environments.
| Specification | Details |
|---|---|
| SKU | 90CA03709S |
| Raceway Type | Industrial dual ball bearing raceways with a 4” diameter deep-grooved load raceway with 1/2” steel balls for better load distribution, and the thrust race is 2-5/8” diameter using 3/8” diameter steel balls for increased capacity |
| Brake | None |
| Load Capacity | 2000 lb |
| Mounting Height | 5.63 in |
| Wheel Tread Width | 4 in |
| Wheel Description | CA - Cast Iron |
| Wheel Color | Grey Enamel |
| Wheel Bearing | Tapered Roller |
| Wheel Profile | Machined flat with rounded edges |
| Wheel Hardness | Brinell 145 |
| Wheel Thread Guards | None |
| Fastening | 7 1/4" x 5 1/4" top plate |
| Bolt Hole Pattern | 5 1/4" x 3 3/8" slotted to 6 1/8" x 4 1/8" |
| Plate Bolt Size Recommended | 1/2" |
| Swivel Radius | 2 in |
| Swivel Lock | None |
| Toe Guard | None |
| Finish | Zinc |
| Operating Temperature Range | Up to +800°F |
| Manufacturing Code | 90CA03709S |
| Warranty | 1 year |
| Conformity | RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability |
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
The Albion Casters HD Raceway Cast Iron Wheel Caster is designed to meet the highest standards of durability and performance in industrial environments. With a wheel dimension of 3.25 inches by 4 inches and a mounting plate size of 7.25 inches by 5.25 inches, this caster is built to handle heavy loads and maintain smooth operation under challenging conditions.
This product features a robust cast iron construction, renowned for its strength and resistance to wear and deformation. The heavy-duty Raceway design not only enhances the caster's load-bearing capabilities but also ensures reliable movement and control, making it a pivotal component for industrial machinery, carts, and equipment.
Perfect for applications within factories, large-scale manufacturing plants, and warehouses, the Albion Casters Wheel Caster can significantly enhance the operational capabilities of heavy machinery and storage systems.
At Albion Casters, we stand behind our products with a robust warranty and dedicated customer service, ensuring that you receive support and satisfaction from your purchase.
$503.00
