PRODUCT CODE: 95PX12709STRL
The Albion 95PX12709STRL is a 12" x 4" cast iron plate caster rated 5280 lbs per caster, mounted on a 8-1/2" x 8-1/2" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 12" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The 95PX12709STRL earns its place when rough concrete and shock loading are the controlling spec. Pair 12" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 95PX12709STRL is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
5280 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 12" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

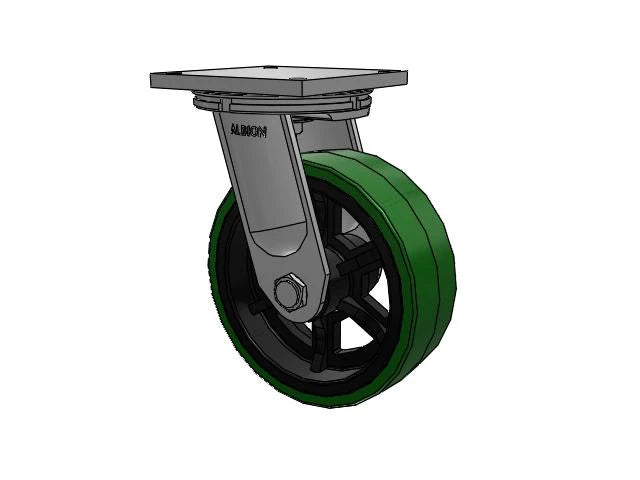

The Albion Casters Super-Duty TRL 12" x 4" Polyurethane-on-Iron Wheel Caster is designed for industrial applications where reliability and durability are crucial. This caster features a 12-inch diameter wheel and a 4-inch width, ensuring optimal load-bearing capacity and stability. Its robust construction includes a high-density polyurethane wheel mounted on a heavy-duty iron core, offering unparalleled resilience and performance.
Ideal for use in warehouses, manufacturing facilities, and other industrial environments, the Albion Casters Super-Duty TRL Caster excels in scenarios that require heavy lifting and durable performance. Its robust design makes it suitable for a range of equipment, from carts and trolleys to machinery and more.
Albion Casters is renowned for its commitment to quality and innovation. Our casters are engineered to meet the highest standards of durability and performance, ensuring that your equipment operates smoothly and efficiently. With the Super-Duty TRL Caster, you benefit from advanced design, superior materials, and a product that stands up to the toughest challenges.
$1,584.00
| Wheel Diameter | 12" |
| Wheel Tread Width | 4" |
| Overall Height | 15.5" |
| Wheel Capacity | 5280 lbs |
| Temp Range | -20°F to 180°F |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 7" x 7" |
| Mount Style | Plate |
| Plate Size | 8-1/2" x 8-1/2" |
