The Colson 2.04456.944-BRK4 is a 4" x 1.25" hi plate-mount caster rated 275 lbs per caster, mounted on a 2-1/2" x 3-5/8" Top Plate plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 4" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Colson on standard-duty industrial carts where bearing life and quiet roll matter more than maximum capacity. The 2.04456.944-BRK4 earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 4" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Colson encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 2.04456.944-BRK4 is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
275 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 4" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Colson's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

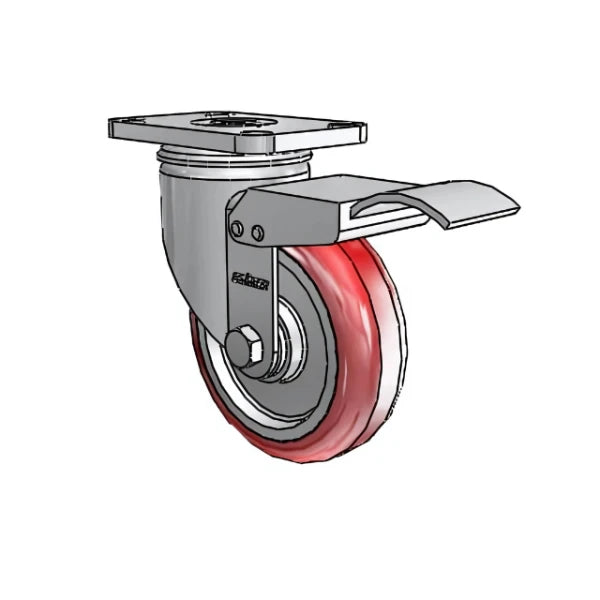

The Colson Casters 4" x 1.25" HI-TECH Delrin Bearing Caster is meticulously engineered to deliver exceptional performance across a variety of applications. Designed with a total lock mechanism, this caster provides unparalleled stability and safety, making it an ideal choice for environments where secure positioning is essential, such as medical facilities and industrial settings.
Choosing the Colson Casters HI-TECH Delrin Bearing Caster means investing in quality and performance. Colson is renowned for its commitment to innovation and reliability, ensuring that our casters meet the highest standards in safety and efficiency. Whether you’re enhancing operational workflows or upgrading your existing equipment, our casters provide the perfect blend of functionality and durability.
Upgrade your mobility solutions today with the Colson Casters 4" x 1.25" HI-TECH Delrin Bearing Caster and experience the difference in performance and reliability!
This Colson 2.04456.944-BRK4 4" x 1.25" Hi Caster — 275 lb is rated to 275 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 1-1/4" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 2-1/2" x 3-5/8" plate and a 1-3/4" x 2-13/16" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.13". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$143.00
| Identification | |
| Brand | colson header |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 5.13" |
| Plate Size | 2-1/2" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-13/16" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 275 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Stainless Steel |
4" x 1.25" Polyurethane Swivel Caster – 325 lb | 2.5" x 3.625" Top Plate | CasterHQ
4" x 1-1/4" · 260 lbs · Direct fit
$14
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 250 lbsLighter duty | 4" × 1-1/4"Gray Rubber | Swivel with Total Lock Brake + brake | — | $24.00 | View → | |
| 260 lbsLighter duty | 4" × 1-1/4"Polyurethane | Swivel | 4-1/8" | $14.00 | View → | |
| 275 lbs | 4" × 1-1/4"Polyurethane | Swivel with Total Lock Brake + brake | 5.13" | $143.00 | Viewing | |
| 300 lbsHeavier duty | 4" × 1-1/4"Polyurethane | Swivel | 5-1/8" | $19.00 | View → | |
| 300 lbsHeavier duty | 4" × 1-1/4"Polyurethane | Swivel | 5-1/8" | $19.00 | View → |
