The Colson D4.08108.335-HT-SS is a 8" x 2" high temp phenolic plate caster rated 1200 lbs per caster, mounted on a 4" x 4-1/2" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 8" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed by noon CT (Mon-Fri). BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Colson on standard-duty industrial carts where bearing life and quiet roll matter more than maximum capacity. The D4.08108.335-HT-SS earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 8" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Colson encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The D4.08108.335-HT-SS is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
1200 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 8" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Colson's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed by noon CT (Mon-Fri). Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

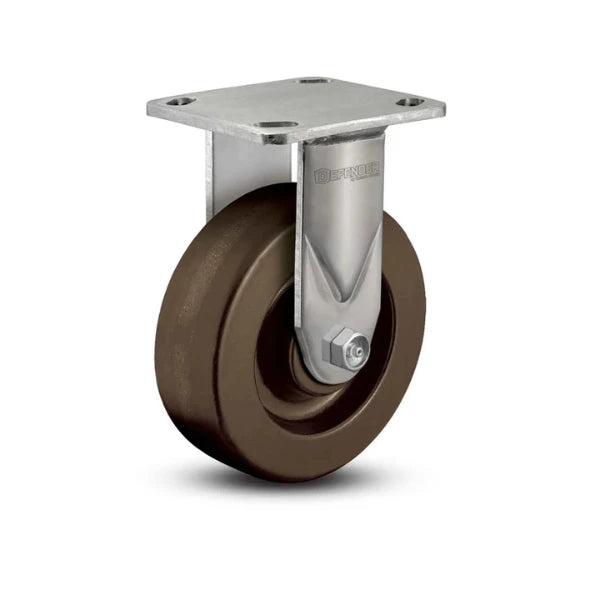

The Colson Casters Stainless 8" x 2" Hi-Temp Phenolic Precision Ball Bearing Rigid Caster is engineered for high-performance mobility in extreme environments. Built with a durable stainless steel frame, this caster is designed to withstand the rigors of heavy-duty use in high-temperature settings. The 8" x 2" Hi-Temp phenolic wheel, paired with precision ball bearings, ensures smooth movement and reliable performance even in the most challenging conditions.
The Colson Casters Stainless 8" x 2" Hi-Temp Phenolic Precision Ball Bearing Rigid Caster is ideal for a wide range of demanding applications. It is particularly well-suited for environments where heat resistance is crucial, such as in industrial manufacturing, chemical plants, hospitals, and warehouses. The rugged design of the caster makes it a great fit for heavy-duty machinery and equipment that requires stable, long-term mobility.
Colson Casters is a leader in the caster industry, known for producing high-quality, durable, and reliable products. This particular caster features a stainless steel frame and high-temperature wheel, both of which provide long-lasting performance and safety under high-heat conditions. The precision ball bearings are designed to optimize rolling efficiency, ensuring that your equipment moves smoothly with minimal friction. Whether you're outfitting a new system or upgrading your existing one, Colson Casters offers unparalleled solutions for your mobility needs.
Ensure smooth and reliable mobility in high-stress, high-temperature environments by upgrading to the Colson Casters Stainless 8" x 2" Hi-Temp Phenolic Precision Ball Bearing Rigid Caster. This high-performance caster will enhance the durability and efficiency of your equipment, providing the long-lasting support your operations require. With Colson Casters, you get the perfect combination of strength, stability, and precision.
This Colson D4.08108.335-HT-SS 8" x 2" High Temp Phenolic Caster — 1200 lb is rated to 1200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a High Temp Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

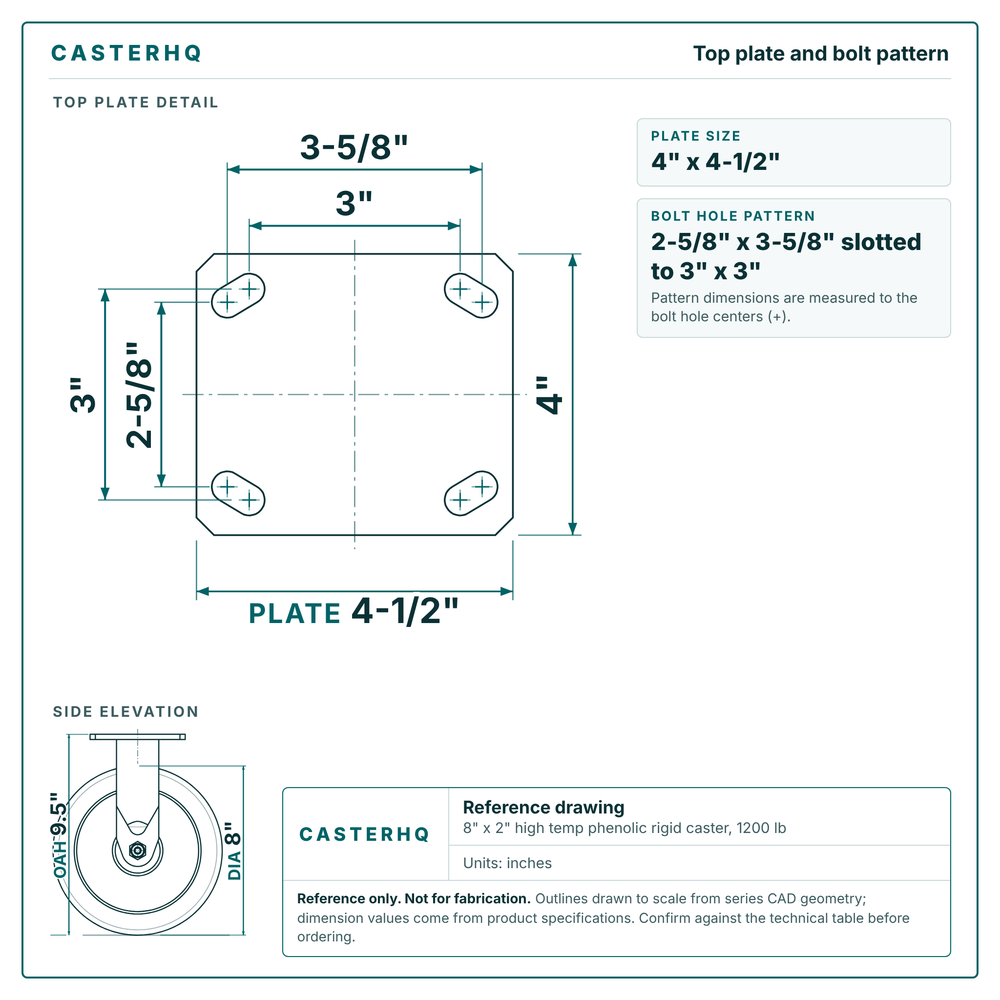

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 475°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The High Temp Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Treat published load capacity as a continuous working limit, not a one-time peak. Divide total loaded cart weight (product + rack + fixtures) by the number of casters that share the load, then size so that working load per caster stays at or below about 75% of the rated capacity (a common ~25% margin). On four-wheel oven racks, uneven floors and thermal growth can shift load to two or three casters; if your process routinely parks on imperfect floors, engineer for three-caster support rather than perfect four-way share. Confirm ratings at your process temperature — heat softens many wheel compounds and can lower usable capacity versus room-temperature catalog numbers.
Bypass standard polyurethane when continuous or cyclic wheel temperatures exceed the urethane compound’s published service range (often well below typical bake / washdown-after-heat zones). Spec glass-filled nylon or phenolic (or other high-temp tread systems on the PDP) when racks enter ovens, proofers, or wash tunnels where tread softening, bond failure, or flat spots would appear with PU. Match the wheel to the hottest surface the tread sees, including residual heat after exit, and verify chemical exposure (cleaners, fats, steam) against the material notes on this product. When in doubt, ask for the temperature and duty cycle — we will confirm whether this SKU or a high-temp alternate is the right call.
A traditional kingpin clamps the swivel assembly through a single axial fastener. Repeated side thrust from towing, tugger lines, or AGV path corrections loads that pin and the raceway faces in ways ordinary cart steering does not. Over time that shows up as elongated kingpin holes, brinelled races, or loose swivels. Kingpinless (or forged integrated) raceways distribute thrust through a continuous race path instead of relying on that central pin — better suited when side loads are planned into the duty cycle. Oven-rack and high-temp lines still need the correct wheel material first; upgrade the swivel construction when towing or powered side loads are part of the application, not only when heat is.
$187.00
| Identification | |
|---|---|
| Part Number / SKU | D4.08108.335-HT-SS |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 1200 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 9.5" |
| Rig Type | Rigid |
| Brake | No Brake |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Wheel | |
| Wheel Material | High Temp Phenolic |
| Wheel Core Material | Phenolic |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | Up to 475°F |
| Compliance | |
| Buy American | Yes |

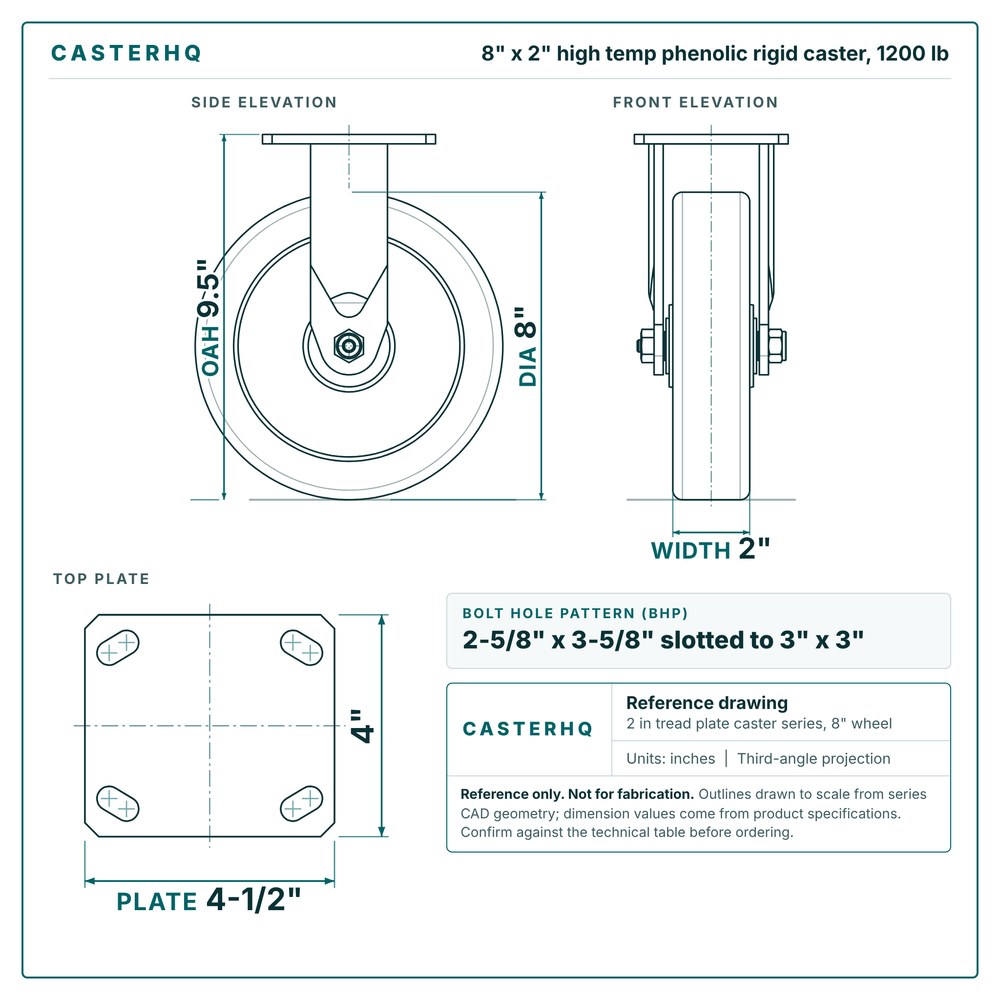

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 8" × 2"Blue Solid Polyurethane | — | 9-1/2" | $199.00 | View → | |
| 1000 lbsLighter duty | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → | |
| 1200 lbs | 8" × 2"High Temp Phenolic | Rigid | 9.5" | $187.00 | Viewing | |
| 1250 lbsHeavier duty | 8" × 2"Phenolic | Rigid | 9-1/2" | $30.00 | View → | |
| 1250 lbsHeavier duty | 8" × 2"Semi-Steel | Rigid | 9-1/2" | $43.00 | View → |
