PRODUCT CODE: 700FS10709S
The Albion 700FS10709S is a 10" x 4" plate caster rated 10000 lbs per caster, mounted on a 8-1/2" x 8-1/2" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 10" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The 700FS10709S earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 10" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 700FS10709S is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
10000 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 10" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
This industrial caster is designed for the most demanding applications. Its robust construction can withstand harsh environments and heavy loads, making it ideal for use in automotive, aerospace, and other industrial settings. The kingpinless design minimizes wear and tear, ensuring long-lasting performance even under continuous swiveling and impact loads.
Got questions about our heavy-duty casters? Our Caster Experts are here weekdays 8 am - 5 pm to provide expert advice for your project needs.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

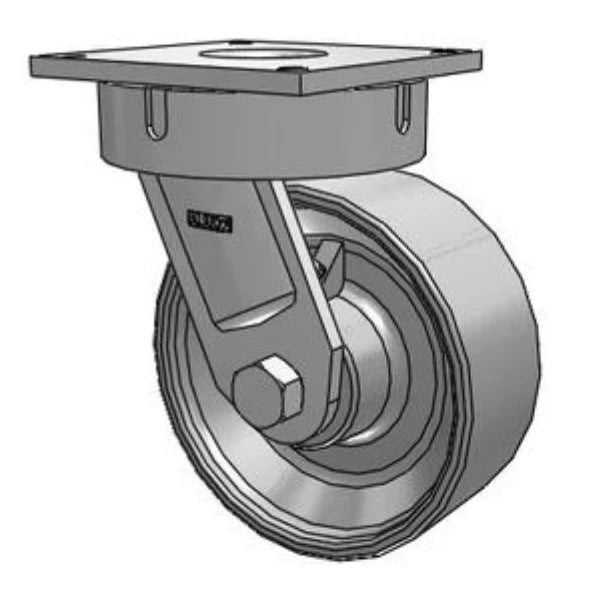

The Ultimate Kingpinless 10"x4" Forged Steel Wheel Caster is the ultimate solution for your heavy-duty material handling needs. Engineered with an impressive 8.5"x8.5" top plate, this caster boasts a remarkable 10,000 lb. load capacity. This translates to seamless operation, even in the most demanding industrial environments.
Need help finding the perfect caster for your application? Our caster experts are on hand weekdays from 8 am to 5 pm to answer your questions and provide expert advice. Get the right caster for the job, the first time.
$1,714.00
| Wheel Diameter | 10" |
| Wheel Tread Width | 4" |
| Overall Height | 13" |
| Wheel Capacity | 10000 lbs |
| Temp Range | -20°F to 180°F |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 7" x 7" |
| Mount Style | Plate |
| Plate Size | 8-1/2" x 8-1/2" |
Trusted by 100,000+ Industrial and Commercial Buyers | 98.7% on-time shipment rate
Designed for engineers, manufacturers, and material handling professionals
