35 Series

Diameter: 5 to 10 inTread: 2 to 2-1/2 inCapacity: 350 to 1,500 lb per casterPlate sizes: 4-1/2 x 6-1/4
This page lists 94 casters with 5 to 10 in wheels, rated 350 to 1,500 lb each, made by Durastar. Every one uses a 4-1/2 x 6-1/4 in top plate, and you can pick swivel or rigid and without brakes. Examples include a 5 x 2 in HD polyolefin swivel caster rated 900 lb and an 8 x 2-1/2 in semi-steel swivel caster rated 1,500 lb.

Shop by type

18 types

Wheel = wheel diameter · capacity is per caster.

1000 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 5" x 2" Semi-Steel Swivel Caster - 1000 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
5" x 2" Semi-Steel Swivel Caster – 1000 lb
Part # 35-S-520-SS-04
from $23.00
Volume pricing available
Semi-SteelPlate
Load rating
1000 lbs
Size5" x 2"
Capacity1000 lbs
WheelSemi-Steel
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 5" x 2" Semi-Steel Swivel Caster Product...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Polyurethane on Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
10" x 2-1/2" Polyurethane on Steel Swivel Caster – 1500 lb
Part # 35-S-1025-PU-04
from $198.00
Volume pricing available
PolyurethanePlate
Load rating
1500 lbs
Size10" x 2-1/2"
Capacity1500 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Height 11-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Polyurethane on Steel Swivel...
Shop Product
1400 lbs
TieredPricing

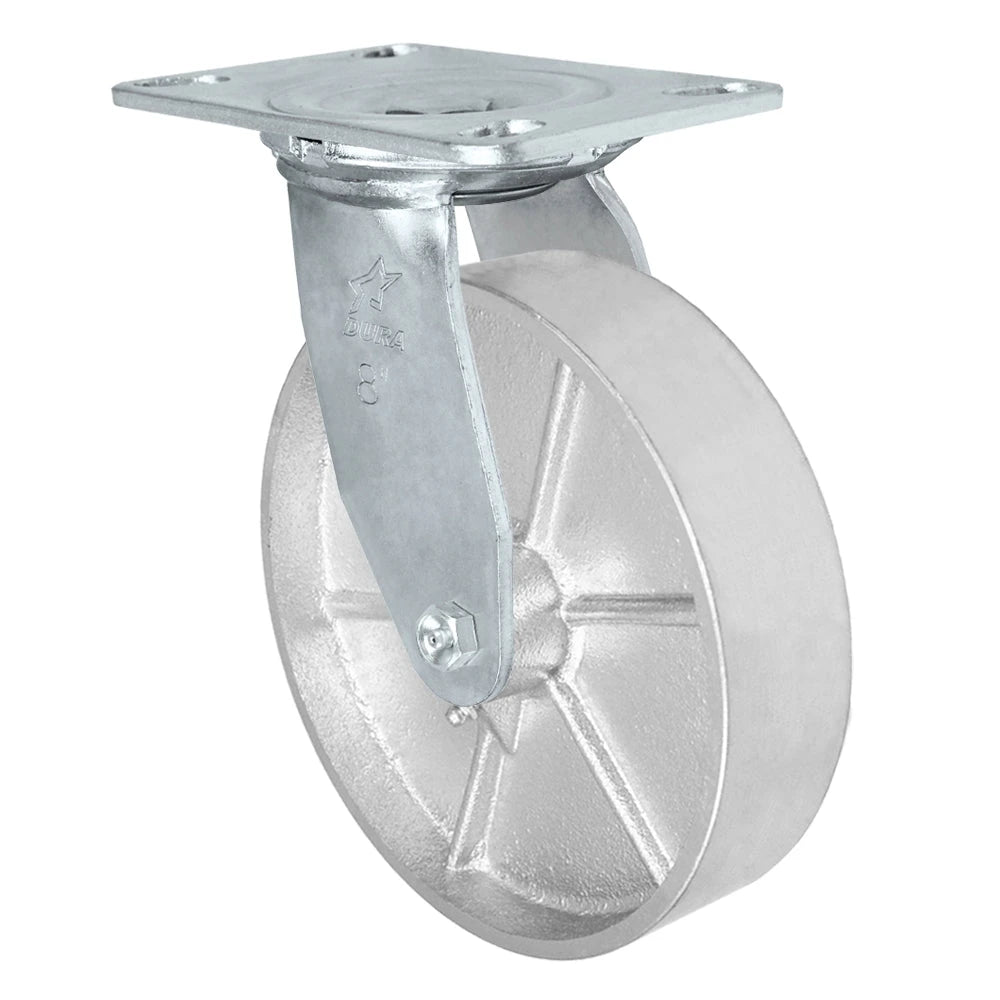

Durastar Medium Heavy Duty 35 Series - 8" x 2" Semi-Steel Swivel Caster - 1400 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2" Semi-Steel Swivel Caster – 1400 lb
Part # 35-S-820-SS-04
from $30.00
Volume pricing available
Semi-SteelPlate
Load rating
1400 lbs
Size8" x 2"
Capacity1400 lbs
WheelSemi-Steel
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series 8" x 2" Semi-Steel Swivel Caster Advanced Wheel...
Shop Product
1200 lbs
TieredPricing

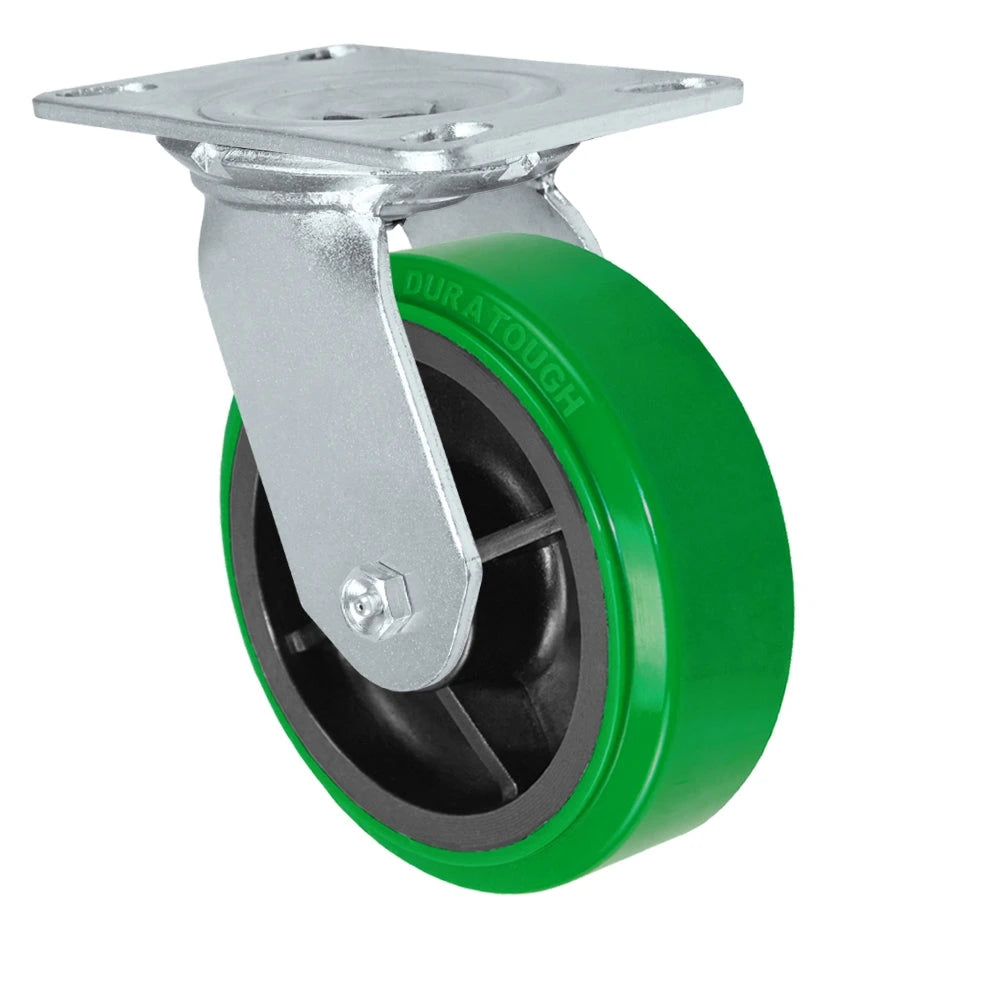

Durastar Medium Heavy Duty 35 Series - 6" x 2" Polyurethane on Steel Swivel Caster - 1200 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
6" x 2" Polyurethane on Steel Swivel Caster – 1200 lb · DuraStar 35 Series
Part # 35-S-620-PU-04
from $27.00
Volume pricing available
PolyurethanePlate
Load rating
1200 lbs
Size6" x 2"
Capacity1200 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 6" x 2" Polyurethane on Steel Swivel...
Shop Product
1000 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 5" x 2" V-Groove Steel Swivel Caster - 1000 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
5" x 2" V-Groove Steel Swivel Caster – 1000 lb
Part # 35-S-520-VG-04
from $23.00
Volume pricing available
Cast IronPlate
Load rating
1000 lbs
Size5" x 2"
Capacity1000 lbs
WheelCast Iron
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 800°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 5" x 2" V-Groove Steel Swivel Caster...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 5" x 2" Ductile Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
5" x 2" Ductile Steel Swivel Caster – 1500 lb
Part # 35-S-520-DS-04
from $38.00
Volume pricing available
Ductile IronPlate
Load rating
1500 lbs
Size5" x 2"
Capacity1500 lbs
WheelDuctile Iron
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range -45°F to 800°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 5" x 2" Ductile Steel Swivel Caster...
Shop Product
1400 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2" Semi-Steel Rigid Caster - 1400 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2" Semi-Steel Rigid Caster – 1400 lb
Part # 35-R-820-SS-04
from $28.00
Volume pricing available
Semi-SteelPlate
Load rating
1400 lbs
Size8" x 2"
Capacity1400 lbs
WheelSemi-Steel
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 600°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series 8" x 2" Semi-Steel Rigid Caster Advanced Wheel...
Shop Product
1500 lbs
TieredPricing

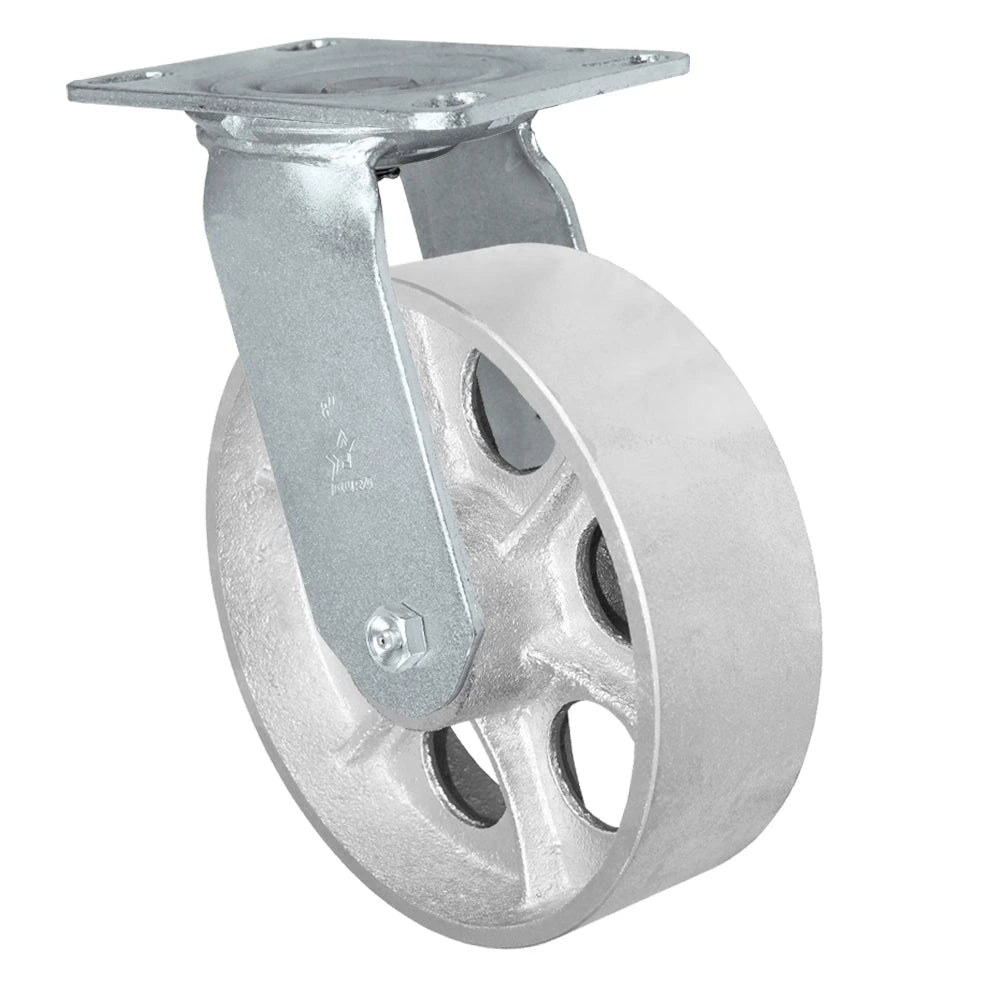

Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Semi-Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2-1/2" Semi-Steel Swivel Caster – 1500 lb
Part # 35-S-825-SS-04
$69.99
Volume pricing available
Semi-SteelPlate
Load rating
1500 lbs
Size8" x 2-1/2"
Capacity1500 lbs
WheelSemi-Steel
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 800°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Semi-Steel Swivel Caster -...
Shop Product
1400 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2" V-Groove Steel Swivel Caster - 1400 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2" V-Groove Steel Swivel Caster – 1400 lb
Part # 35-S-820-VG-04
from $30.00
Volume pricing available
Cast IronPlate
Load rating
1400 lbs
Size8" x 2"
Capacity1400 lbs
WheelCast Iron
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 800°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2" V-Groove Steel Swivel Caster...
Shop Product
500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 6" x 2" Thermoplastic Rubber Swivel Caster - 500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
6" x 2" Thermoplastic Rubber Swivel Caster – 500 lb
Part # 35-S-620-TPR-04
from $27.00
Volume pricing available
Gray RubberPlate
Load rating
500 lbs
Size6" x 2"
Capacity500 lbs
WheelGray Rubber
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Polyolefin
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 6" x 2" Thermoplastic Rubber Swivel Caster...
Shop Product
1000 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 5" x 2" Polyurethane on Glass-filled Nylon Swivel Caster - 1000 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
5" x 2" Polyurethane on Nylon Swivel Caster – 1000 lb
Part # 35-S-520-MU-04
from $23.00
Volume pricing available
PolyurethanePlate
Load rating
1000 lbs
Size5" x 2"
Capacity1000 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Nylon
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 5" x 2" Polyurethane on Glass-filled Nylon...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Semi-Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
10" x 2-1/2" Semi-Steel Swivel Caster – 1500 lb
Part # 35-S-1025-SS-04
from $119.99
Volume pricing available
Semi-SteelPlate
Load rating
1500 lbs
Size10" x 2-1/2"
Capacity1500 lbs
WheelSemi-Steel
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Height 11-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -40°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Semi-Steel Swivel Caster -...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Semi-Steel Rigid Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2-1/2" Semi-Steel Rigid Caster – 1500 lb
Part # 35-R-825-SS-04
$224.00
Volume pricing available
Semi-SteelPlate
Load rating
1500 lbs
Size8" x 2-1/2"
Capacity1500 lbs
WheelSemi-Steel
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 800°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Semi-Steel Rigid Caster -...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Ductile Steel Rigid Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
10" x 2-1/2" Ductile Steel Rigid Caster – 1500 lb
Part # 35-R-1025-DS-04
$280.00
Volume pricing available
Ductile IronPlate
Load rating
1500 lbs
Size10" x 2-1/2"
Capacity1500 lbs
WheelDuctile Iron
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2-1/2"
Height 11-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range -40°F to 600°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Ductile Steel Rigid Caster...
Shop Product
1500 lbs
TieredPricing

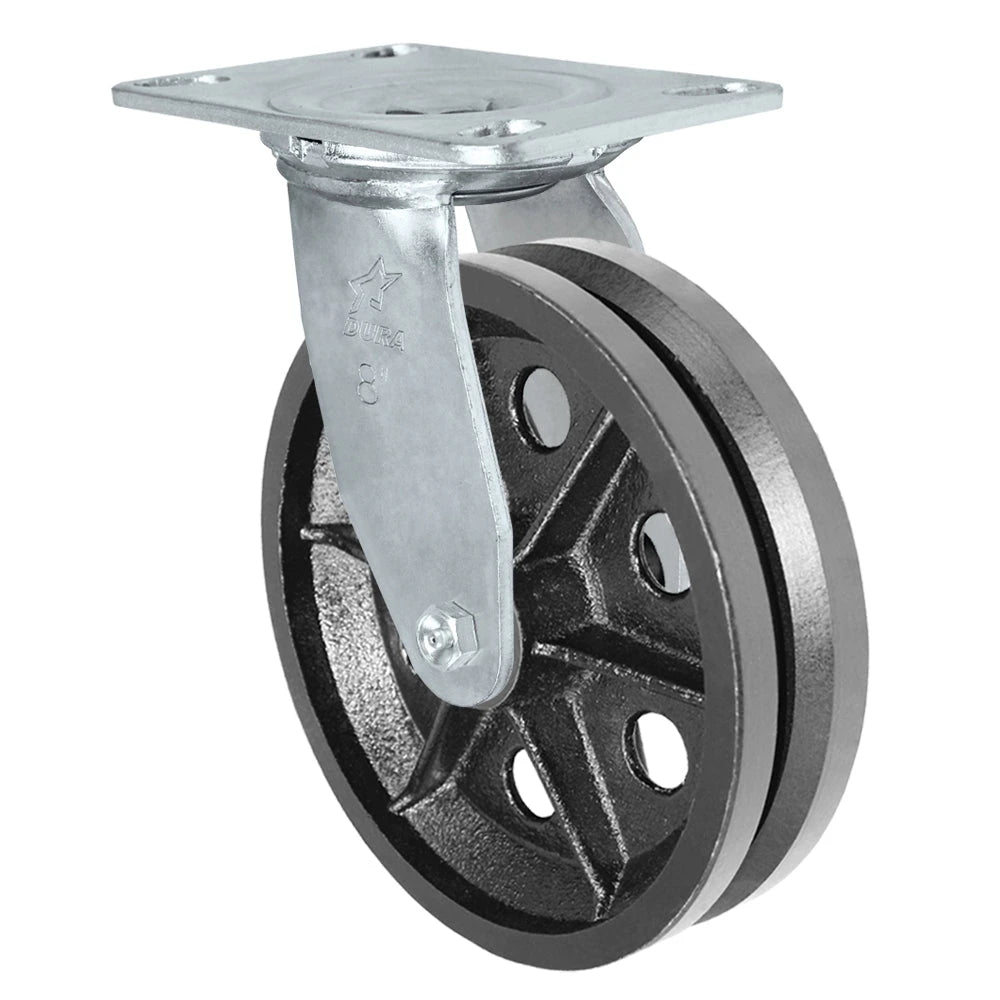

Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" V-Groove Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2-1/2" V-Groove Steel Swivel Caster – 1500 lb
Part # 35-S-825-VG-04
$240.00
Volume pricing available
Plate
Load rating
1500 lbs
Size8" x 2-1/2"
Capacity1500 lbs
Wheel—
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 800°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" V-Groove Steel Swivel Caster...
Shop Product
700 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Thermoplastic Rubber Swivel Caster - 700 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days

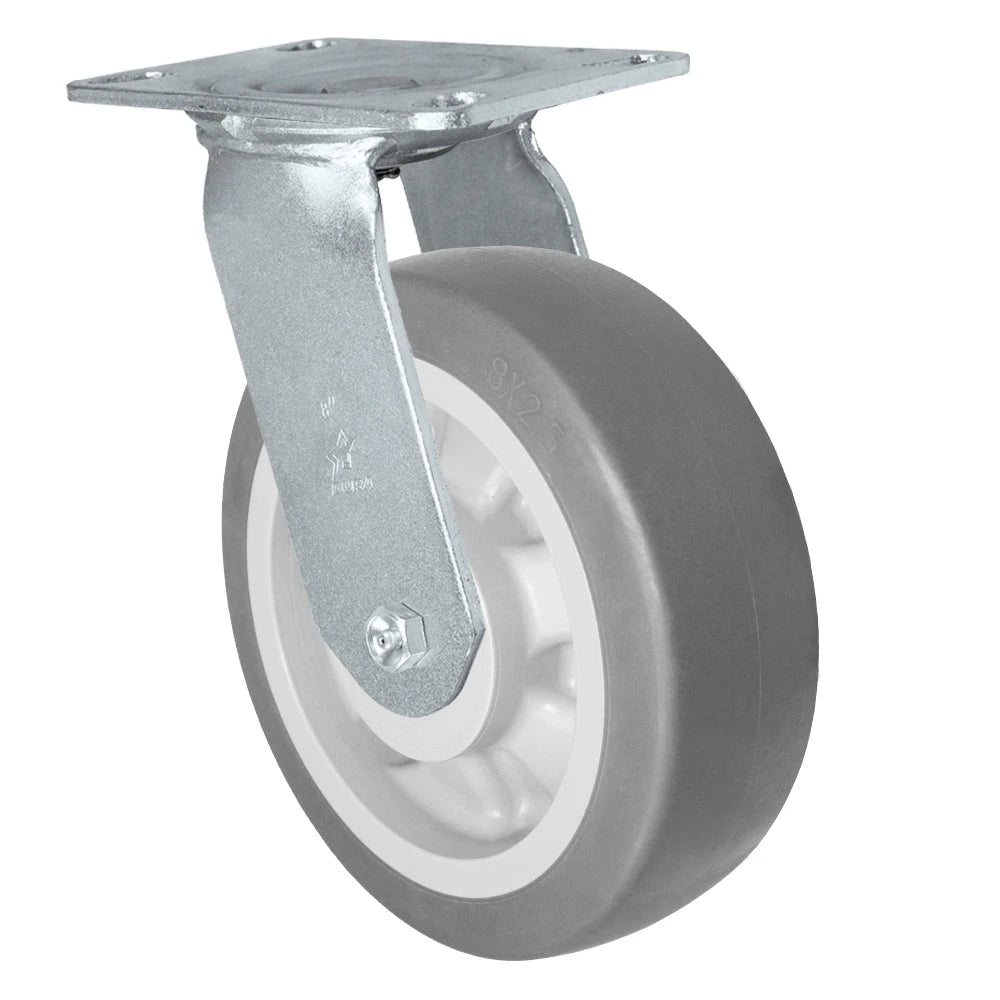

8" x 2-1/2" Thermoplastic Rubber Swivel Caster – 700 lb
Part # 35-S-825-TPR-04
$240.00
Volume pricing available
Gray RubberPlate
Load rating
700 lbs
Size8" x 2-1/2"
Capacity700 lbs
WheelGray Rubber
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Polyolefin
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Thermoplastic Rubber Swivel Caster...
Shop Product
850 lbs
TieredPricing

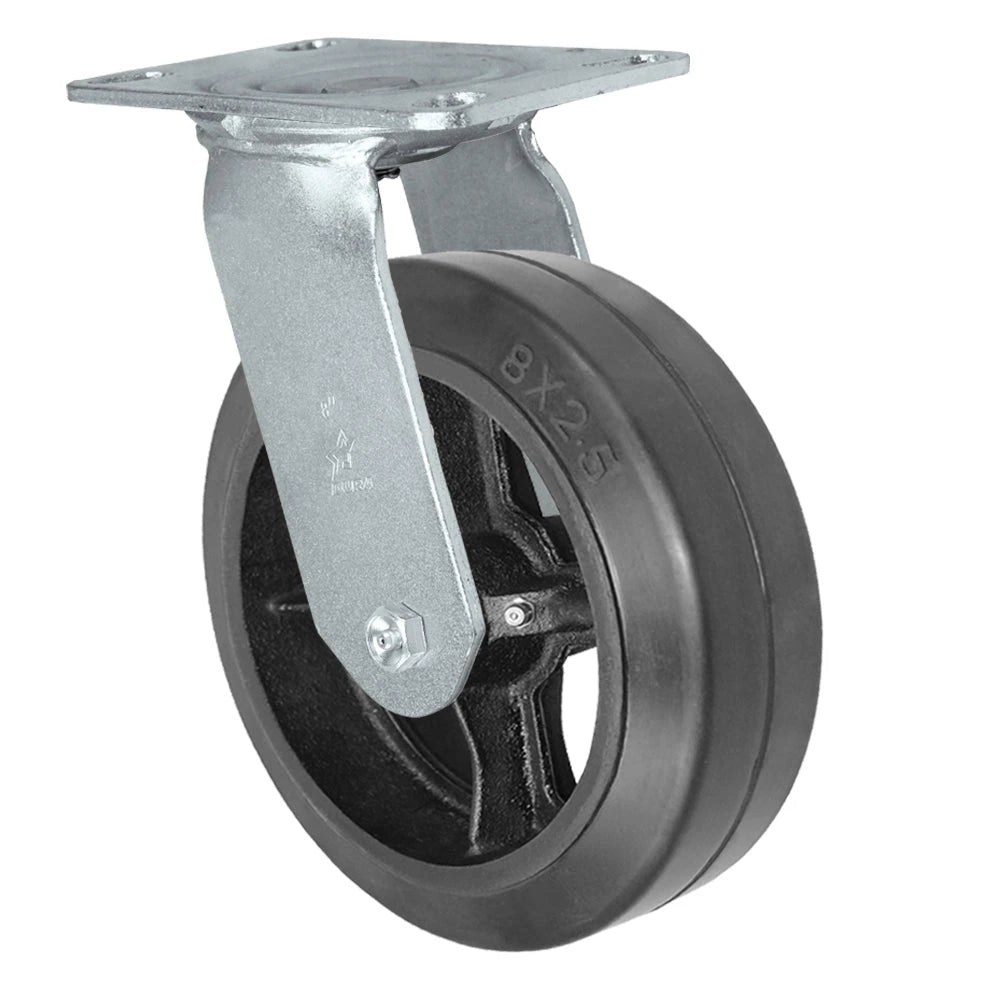

Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Rubber on Steel Swivel Caster - 850 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2-1/2" Rubber on Steel Swivel Caster – 850 lb
Part # 35-S-825-RS-04
$240.00
Volume pricing available
RubberPlate
Load rating
850 lbs
Size8" x 2-1/2"
Capacity850 lbs
WheelRubber
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -40°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Rubber on Steel Swivel...
Shop Product
1500 lbs
TieredPricing

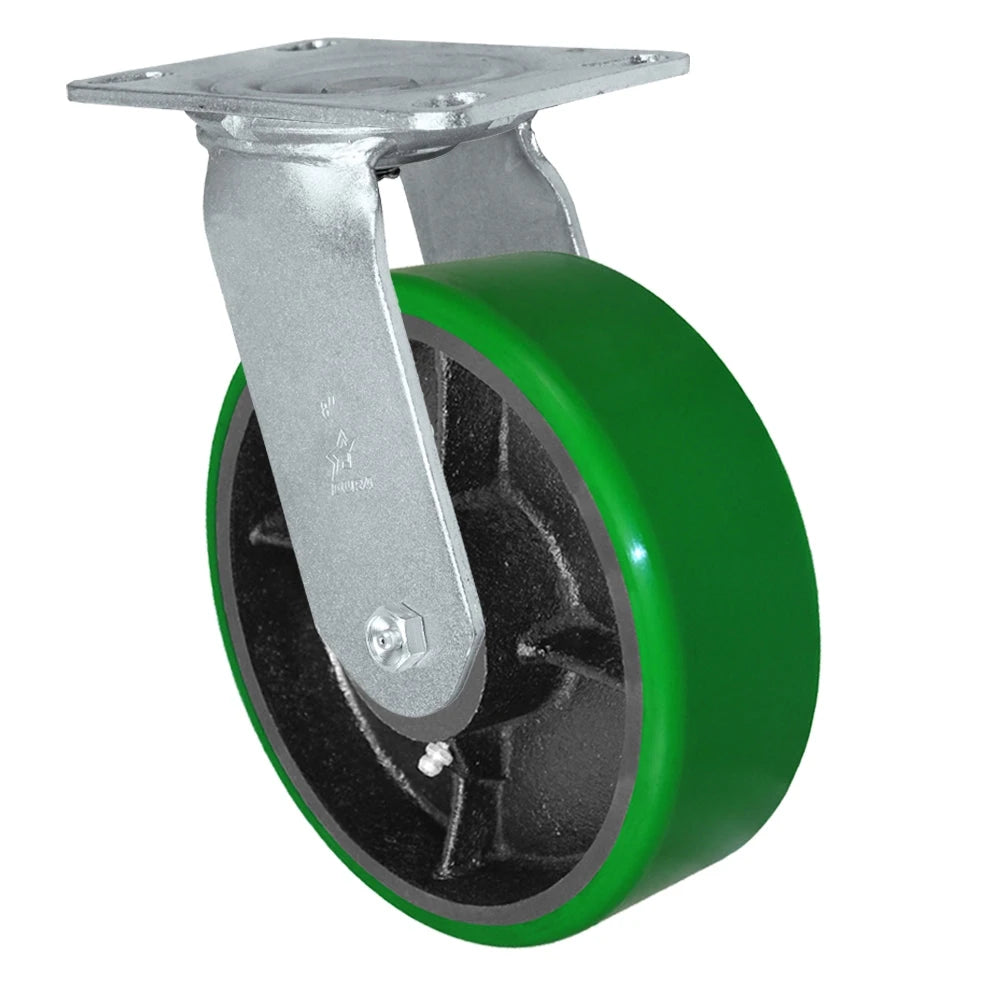

Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Polyurethane on Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2-1/2" Polyurethane on Steel Swivel Caster – 1500 lb
Part # 35-S-825-PU-04
$240.00
Volume pricing available
PolyurethanePlate
Load rating
1500 lbs
Size8" x 2-1/2"
Capacity1500 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Polyurethane on Steel Swivel...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Polyurethane on Glass-filled Nylon Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2-1/2" Polyurethane on Nylon Swivel Caster – 1500 lb
Part # 35-S-825-MX-04
$240.00
Volume pricing available
NylonPlate
Load rating
1500 lbs
Size8" x 2-1/2"
Capacity1500 lbs
WheelNylon
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Polyurethane on Glass-filled Nylon...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Ductile Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2-1/2" Ductile Steel Swivel Caster – 1500 lb
Part # 35-S-825-DS-04
$240.00
Volume pricing available
Ductile IronPlate
Load rating
1500 lbs
Size8" x 2-1/2"
Capacity1500 lbs
WheelDuctile Iron
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Steel
Temp Range -45°F to 800°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Ductile Steel Swivel Caster...
Shop Product
600 lbs
TieredPricing

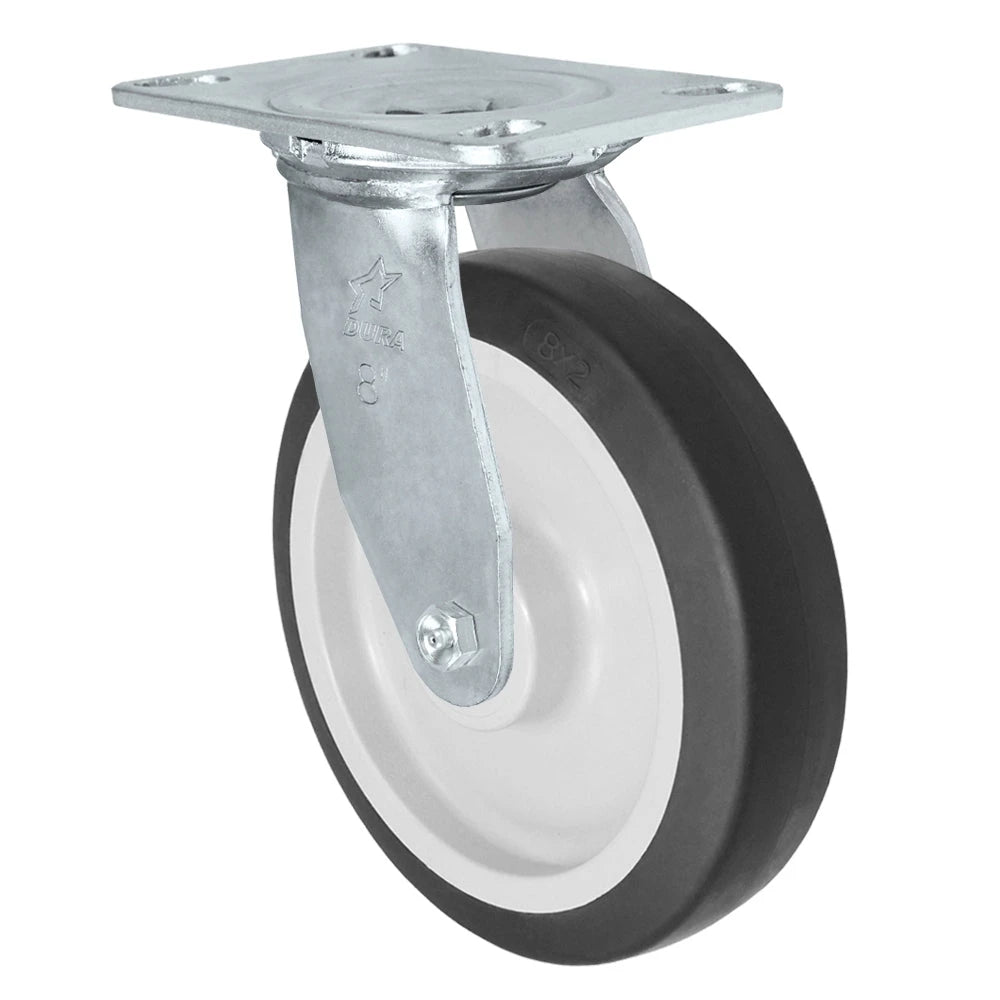

Durastar Medium Heavy Duty 35 Series - 8" x 2" Thermoplastic Rubber Swivel Caster - 600 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2" Thermoplastic Rubber Swivel Caster – 600 lb · DuraStar 35 Series · Model 35-S-820-TPR-04
Part # 35-S-820-TPR-04
from $30.00
Volume pricing available
Gray RubberPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelGray Rubber
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Polyolefin
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2" Thermoplastic Rubber Swivel Caster...
Shop Product
1400 lbs
TieredPricing

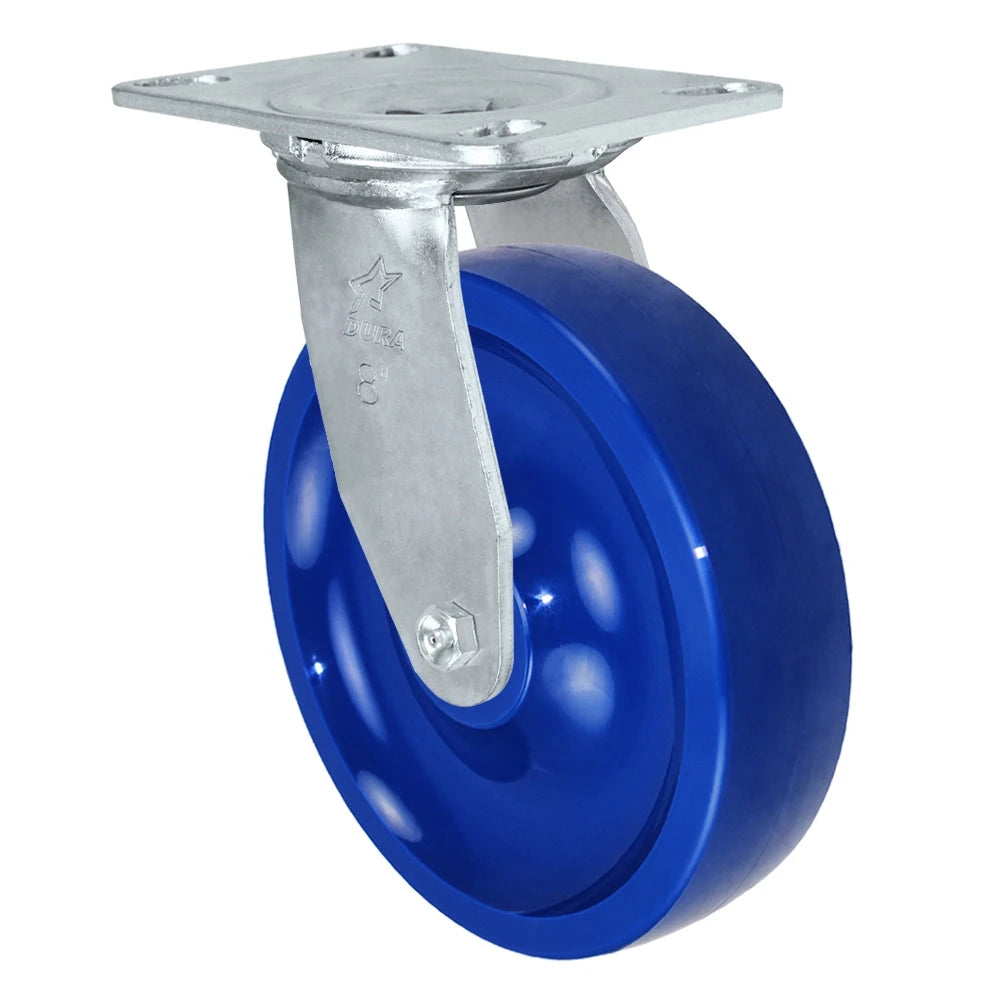

Durastar Medium Heavy Duty 35 Series - 8" x 2" Solid Polyurethane Swivel Caster - 1400 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2" Solid Polyurethane Swivel Caster – 1400 lb
Part # 35-S-820-SPU-04
from $30.00
Volume pricing available
Solid PolyurethanePlate
Load rating
1400 lbs
Size8" x 2"
Capacity1400 lbs
WheelSolid Polyurethane
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2" Solid Polyurethane Swivel Caster...
Shop Product
600 lbs
TieredPricing

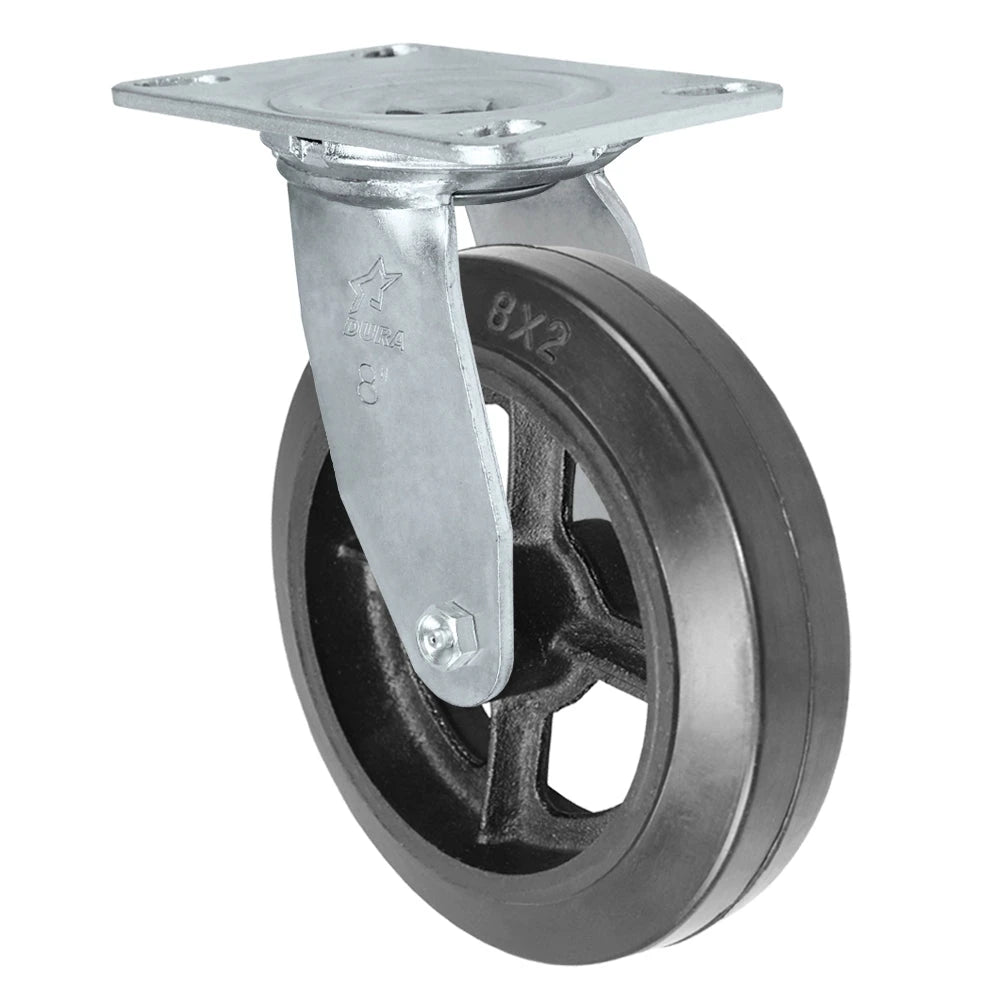

Durastar Medium Heavy Duty 35 Series - 8" x 2" Rubber on Steel Swivel Caster - 600 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2" Rubber on Steel Swivel Caster – 600 lb
Part # 35-S-820-RS-04
from $30.00
Volume pricing available
RubberPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelRubber
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -40°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2" Rubber on Steel Swivel...
Shop Product
600 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2" Rubber on Glass-filled Nylon Swivel Caster - 600 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days

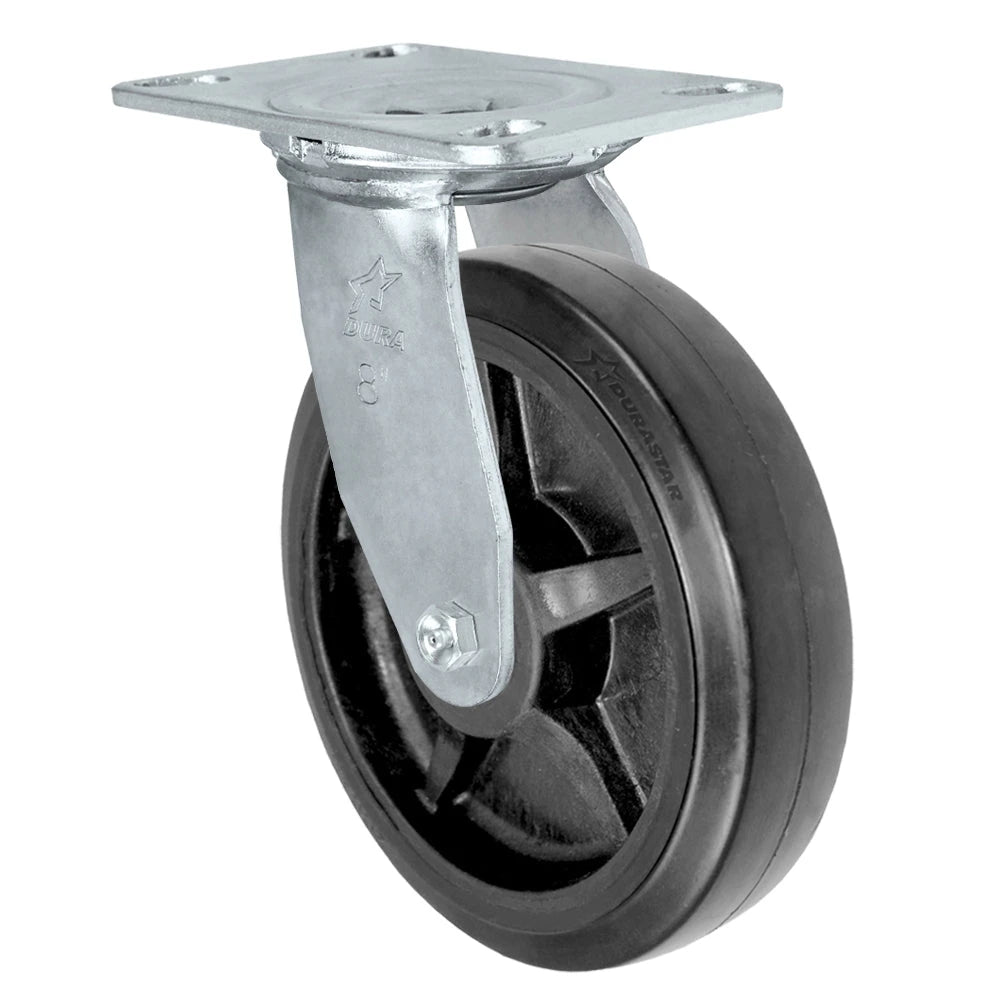

8" x 2" Rubber on Glass-filled Nylon Swivel Caster – 600 lb · DuraStar 35 Series
Part # 35-S-820-RN-04
from $30.00
Volume pricing available
RubberPlate
Load rating
600 lbs
Size8" x 2"
Capacity600 lbs
WheelRubber
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Core Nylon
Temp Range -40°F to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2" Rubber on Glass-filled Nylon...
Shop Product

Durastar Casters - Medium-Heavy Duty Casters | 35 SERIES | Featuring Top Plate Casters

Product Features

  • Durability: Designed for medium to heavy-duty applications, offering exceptional durability and strength.
  • Top Plate Size: Available in versatile plate sizes, ensuring compatibility with a wide range of equipment and environments.
  • Load Capacity: Engineered to handle demanding loads, providing reliable performance for various industrial and commercial needs.
  • Materials: High-quality construction materials like steel and polyurethane wheels for superior performance and longevity.
  • Applications: Perfect for use in warehouses, factories, and other industrial environments requiring durable and efficient mobility solutions.

The Durastar Casters | 35 SERIES is engineered to meet the demands of medium to heavy-duty applications. These casters feature robust top plate designs that ensure smooth maneuverability and excellent weight distribution. Whether you are moving heavy loads in a factory setting or optimizing the flow of goods in a warehouse, Durastar Casters offers the reliability you need.

JW
Jordan Wilson
Industrial Caster Specialist | 15+ Years in Caster Engineering
Access to $100M+ in-stock U.S. caster inventory
Application Engineers On Staff · ISO-Certified Facility · Trusted by 50,000+ Businesses Nationwide

Crafted with high-strength materials, including durable steel components and polyurethane wheels, these casters are built to withstand daily wear and tear. The superior construction ensures that the 35 SERIES provides reliable service even in challenging environments, contributing to the overall efficiency of your operations.

Durastar Casters are designed with user comfort in mind. The ergonomic wheel designs allow for easy movement while minimizing strain on personnel, making these casters an excellent choice for both heavy-duty and continuous use. With various top plate sizes available, you can choose the perfect fit for your specific application needs.

Trust Durastar Casters for all your industrial mobility needs. Engineered for quality, reliability, and performance, these casters are the perfect solution for any project that demands robust mobility solutions.

Enhance Your Mobility Today

Upgrade your equipment with the Durastar Casters | 35 SERIES. With unbeatable load capacity and durability, these casters are designed to improve the efficiency of your operations. Explore the difference Durastar Casters can make in your business today.

Search
