Back to Casters

5" x 2" Phenolic Caster Kits

Diameter: 5 inTread: 2 inCapacity: 1,000 lb per casterPlate sizes: 4 x 4-1/2

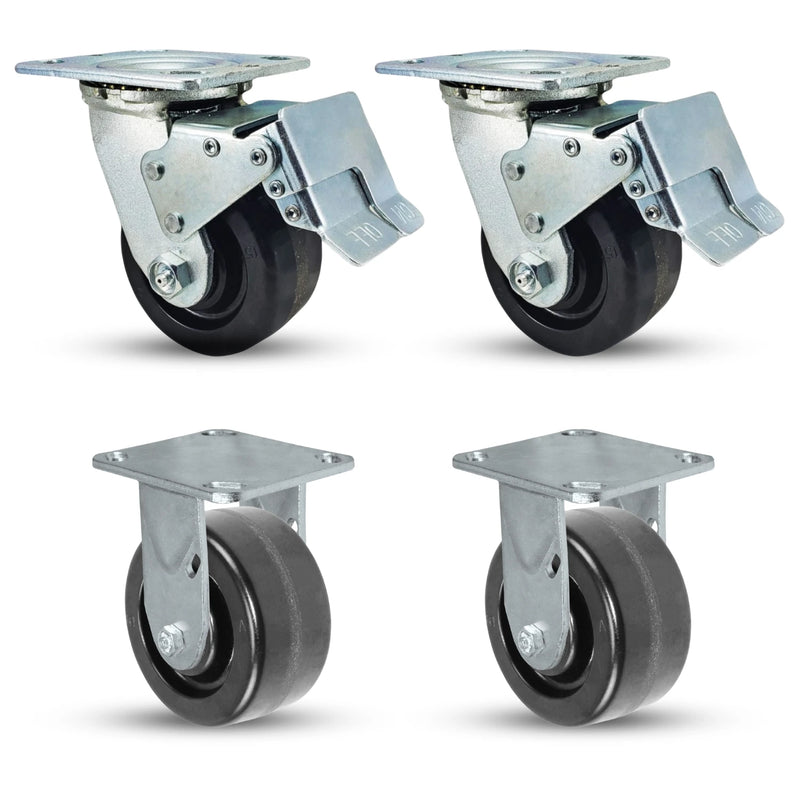

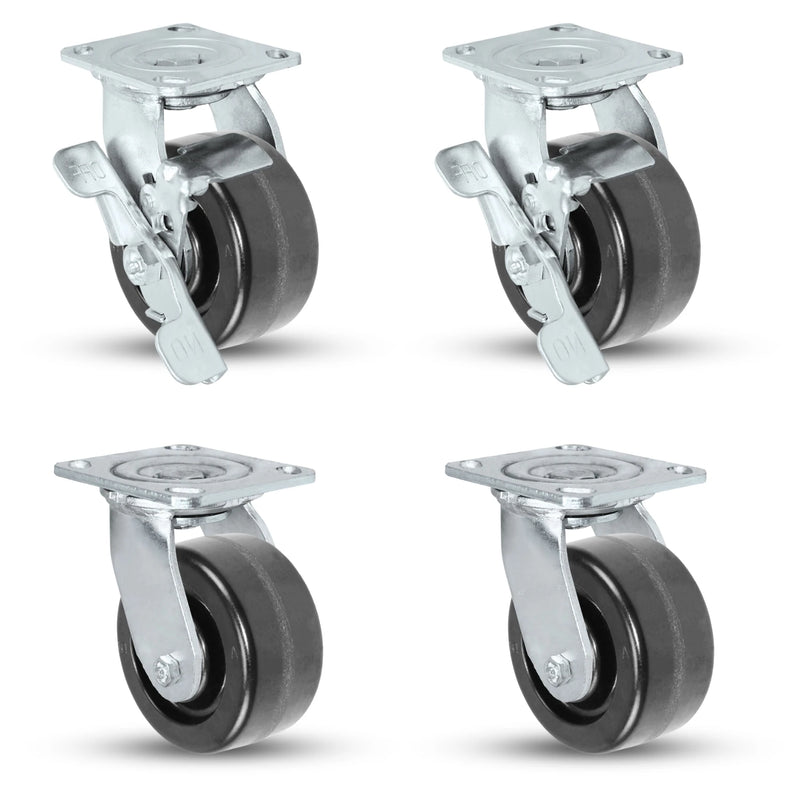

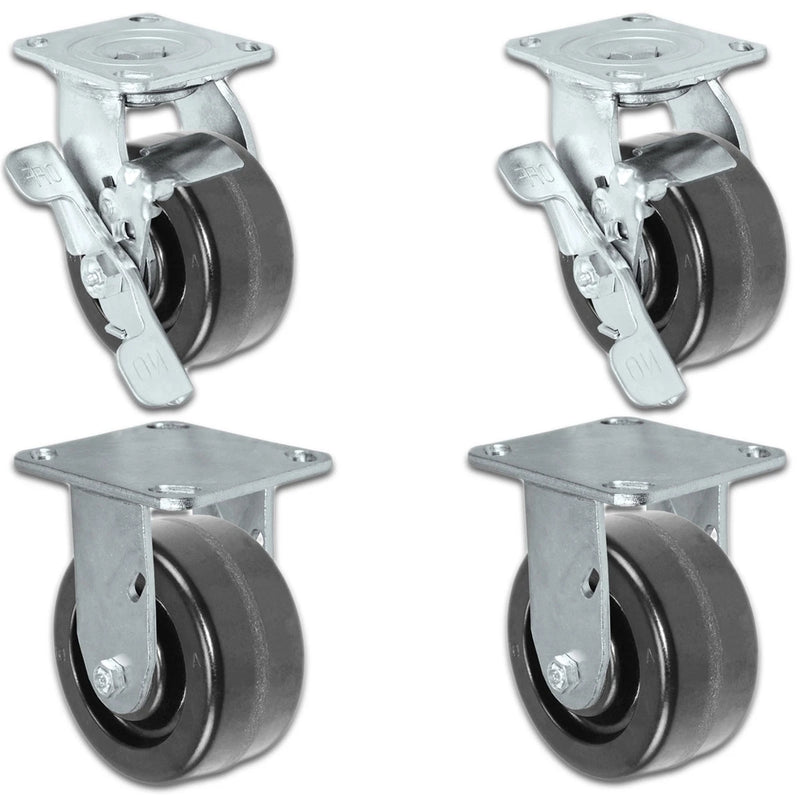

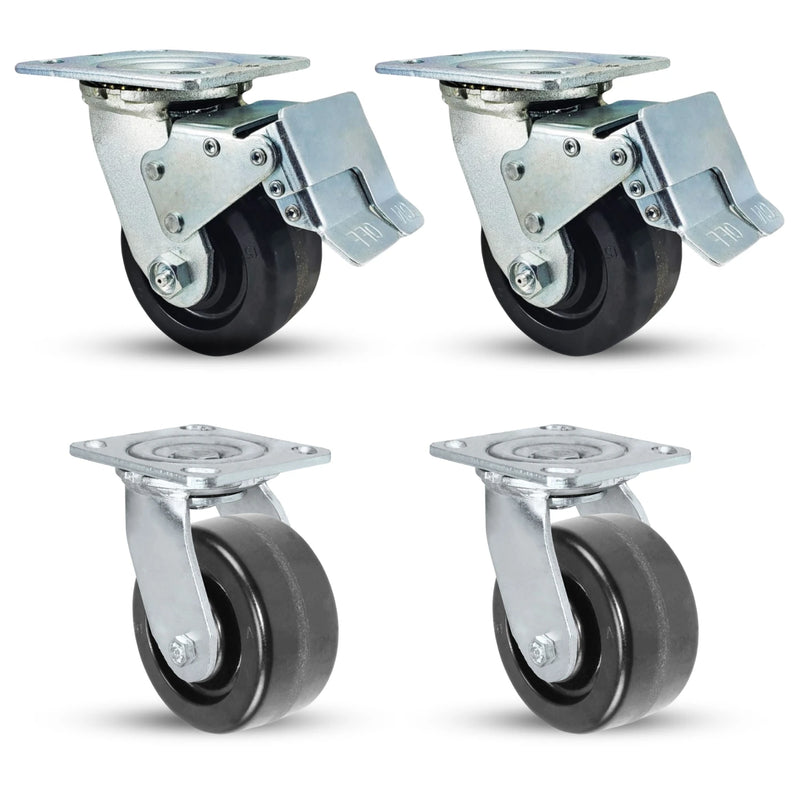

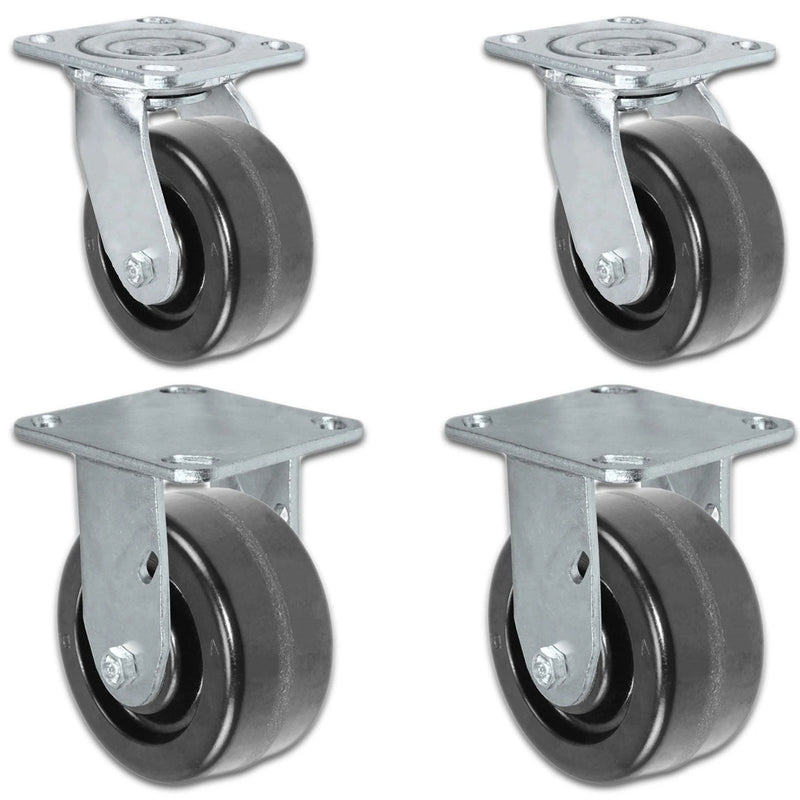

You get eleven phenolic casters here from CasterHQ with 5 in wheels, rated 1,000 lb each. The top plate is 4 x 4-1/2 in on all of them, with swivel and rigid versions, and 6 have a side lock or total lock brake. You will find a 5 x 2 in phenolic rigid caster rated 1,000 lb and a 5 x 2 in phenolic swivel caster rated 1,000 lb here. The usual temperature rating here is -50°F to 250°F.

5 x 2 Inch Swivel and Rigid Phenolic Wheel Casters

Weight Capacities Ranging From: 700LBS to 1,250 lbs Per Caster
Plate Size: 4" x 4-1/2"
3-1/4" X 2"  Inch Rigid Caster - Phenolic Wheel - 700 Lbs Capacity

5 Inch (5" x 2") Phenolic resin wheels are mixed with phenolic resin with macerated canvas and other compressed materials; These wheels are molded under high pressure and temperature. Phenolic caster wheels are recommended for smooth concrete floors and can be used for storage loads without permanent compression set to the wheel. These phenolic wheels are highly resistant to oil, grease, gasoline, and mild acids. Phenolic caster wheels will carry loads as great as the same size Gray Iron Wheel Casters. The wheel tread may show wear from repeated travel over rough floor surfaces. Phenolic Wheel Casters are one of the most commonly used casters due to the inexpensive costs and high weight capacities and durability these types of wheels offer. If your looking for a true heavy-duty caster that won't break the budget buy phenolic wheel casters from CasterHQ. Phenolic Casters can be used in many industries and applications due to their durability and strength. These wheels can hold large amounts of weight, will not tear up concrete floors, and will not flat spot. Phenolic wheels perform best on smooth surfaces due to the wheel's hardness. Phenolic wheels do not perform well on un-even floors with chipped concrete or obstacles in the path of the wheels. Phenolic Wheels should NOT be exposed to water. The material of phenolic wheels will eventually swell and the wheel could fall apart over time if exposed to water. These should be used in clean, dry environments such as warehouses, garages, buildings, retail stores, and anywhere that has clean, dry floors. I would not recommend Phenolic floors on custom wood floors as these could leave slight indentions if the weight of the cart is too heavy since real hardwood is a naturally softer and expensive floor type.

If you need replacement phenolic wheels only please Click Here.

• Phenolic resin mixed with macerated canvas; creates a high capacity, high impact resistant wheel that has many years of proven reliability in the industry.
• Hard tread rolls easily, provides good concrete floor protection and is quieter than steel wheels.
• Resistant to oil, grease & solvents, non-metallic & non-sparking.
• Economically priced wheel.
• Zerk fitting are not standard, but available upon request.
• Durometer: 90 Shore D (+/-5).
• Temperature range: -50° F to 250° F.
