Cast Iron Casters

Plate sizes: 5-1/4 x 7-1/4, 8-1/2 x 8-1/2Bolt holes: 3-3/8 x 5-1/4 slotted to 4-1/8 x 6-1/8; 7 x 7Diameter: 6 to 16 inTread: 3, 4, 5 inCapacity: up to 8,470 lb
Match a 5-1/4 x 7-1/4 top plate when bolting casters under warehouse carts on epoxy and smooth concrete. Catalog chips cover wheel diameters 6 to 16 in, polyurethane and cast iron treads, and capacities 2,000 to 8,470 lb. Match bolt-hole spacing or stem diameter to the frame before you standardize a fleet. Larger plates spread bolt stress on thick frames under continuous tow abuse. These heavy-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.
8470 lbs
TieredPricing
Albion Casters Super-Duty 16" x 5" Polyurethane-on-Iron Wheel Caster with 8.5" x 8.5" Plate - Heavy-Duty TRL Model 95PX16809STRL Albion-Casters
Ships in 1-3 Business Days
Albion 95PX16809STRL 16" x 5" Cast Iron Caster — 8470 lb
Part # 95PX16809STRL
$2,105.00
Volume pricing available
Cast IronPlate
Load rating
8470 lbs
Diameter 16"
Capacity 8470 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 5"
Height 19"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
The Albion 95PX16809STRL is a 16" x 5" cast iron plate caster rated 8470...
Shop Product
5280 lbs
TieredPricing

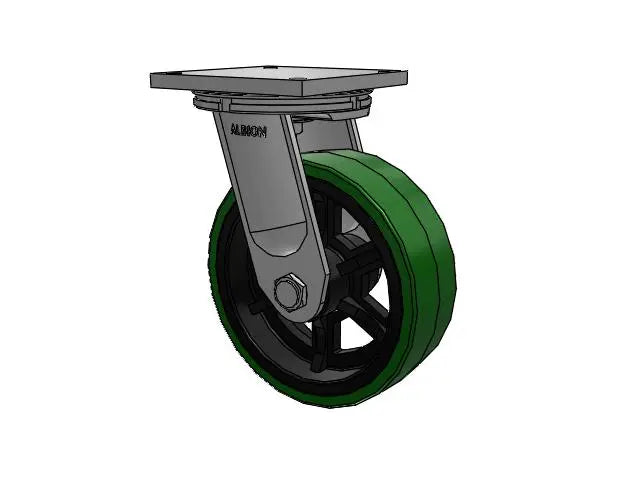

Albion Casters Super-Duty 12" x 4" Polyurethane-on-Iron Wheel Caster with 8.5" x 8.5" Plate - Heavy-Duty Load Capacity, Industrial-Grade Performance - Model 95PX12709STRL Albion-Casters
Ships in 1-3 Business Days
Albion 95PX12709STRL 12" x 4" Cast Iron Caster — 5280 lb
Part # 95PX12709STRL
$1,584.00
Volume pricing available
Cast IronPlate
Load rating
5280 lbs
Diameter 12"
Capacity 5280 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 15.5"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
The Albion 95PX12709STRL is a 12" x 4" cast iron plate caster rated 5280...
Shop Product
5280 lbs
TieredPricing

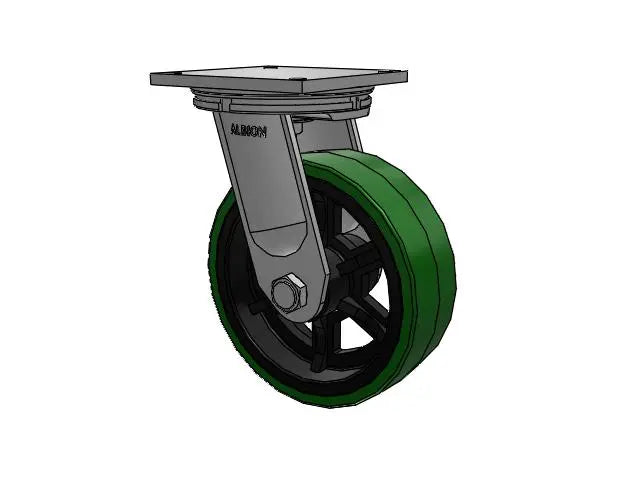

Albion Casters Super-Duty 12" x 4" Polyurethane-on-Iron Wheel Caster with 8.5" x 8.5" Plate - Heavy-Duty Industrial Caster for Enhanced Durability and Load-Bearing Performance - Model 95PX12709SBBL Albion-Casters
Ships in 1-3 Business Days
Albion 95PX12709SBBL 12" x 4" Polyurethane-on-Iron Caster – 8.5" x 8.5" Plate
Part # 95PX12709SBBL
$1,315.00
Volume pricing available
PolyurethanePlate
Load rating
5280 lbs
Diameter 12"
Capacity 5280 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 15.5"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Albion Casters Super-Duty BBL 12" x 4" Thick Polyurethane-on-Iron Wheel Caster with 8.5" x...
Shop Product
4620 lbs
TieredPricing

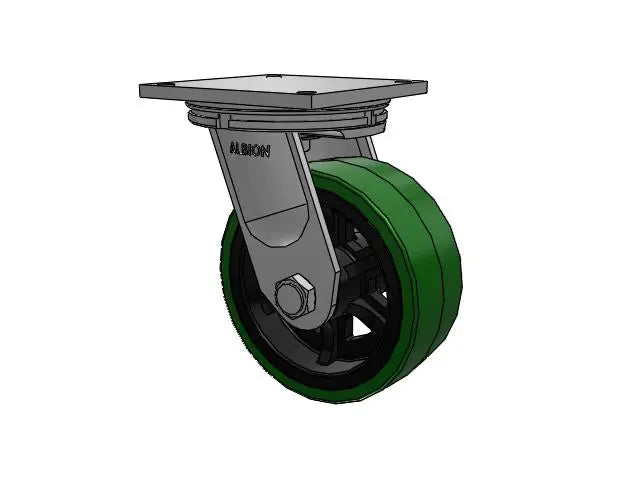

Albion Casters Super-Duty 10 x 4 Inch Polyurethane-on-Iron Wheel Caster with 8.5 x 8.5 Inch Plate - Model 95PX10709SBBL - Heavy-Duty Industrial Caster for High Load Capacity and Durability Albion-Casters
Ships in 1-3 Business Days
Albion 95PX10709SBBL 10" x 4" Polyurethane Caster — 4620 lb
Part # 95PX10709SBBL
$1,343.00
Volume pricing available
PolyurethanePlate
Load rating
4620 lbs
Diameter 10"
Capacity 4620 lbs
Wheel Polyurethane
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 13"
Bolt Pattern 7" x 7"
Core Iron
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
The Albion 95PX10709SBBL is a 10" x 4" polyurethane plate caster rated 4620 lbs...
Shop Product
3850 lbs
TieredPricing

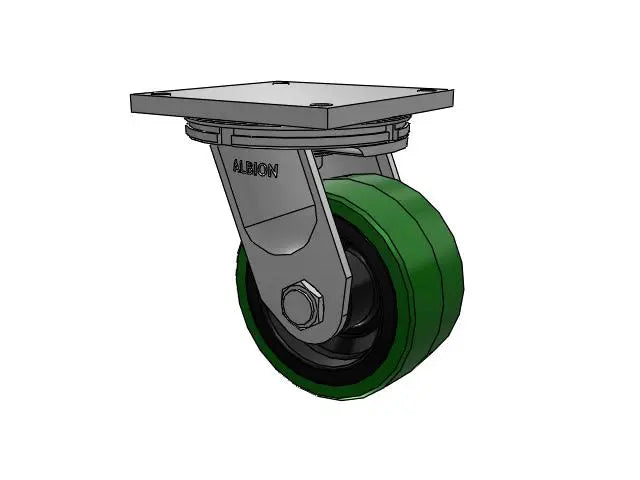

Albion Casters Super-Duty 8" x 4" Polyurethane-on-Iron Wheel Caster with 8.5" x 8.5" Plate – Heavy-Duty Performance for Industrial Use - Model 95PX08709STRL Albion-Casters
Ships in 1-3 Business Days
Albion 95PX08709STRL 8" x 4" Cast Iron Caster — 3850 lb
Part # 95PX08709STRL
$1,186.00
Volume pricing available
Cast IronPlate
Load rating
3850 lbs
Diameter 8"
Capacity 3850 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 4"
Height 8"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
The Albion 95PX08709STRL is a 8" x 4" cast iron plate caster rated 3850...
Shop Product
3000 lbs
TieredPricing
Albion Casters HD Raceway 10" x 3" Green Poly-on-Iron Caster with Tapered Roller Bearing, 7.25" x 5.25" Plate & Swivel Lock - Model 90PY10509SL Albion-Casters
Ships in 1-3 Business Days
Albion 90PY10509SL 10" x 3" Cast Iron Caster — 3000 lb
Part # 90PY10509SL
from $672.00
Volume pricing available
Cast IronPlate
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 12.5"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
The Albion 90PY10509SL is a 10" x 3" cast iron plate caster rated 3000...
Shop Product
3000 lbs
TieredPricing
Albion Casters HD Raceway 10" x 3" Green Poly-on-Iron Tapered Roller Bearing Caster with 7.25" x 5.25" Plate - Heavy-Duty, Smooth Operation, High Durability Albion-Casters
Ships in 1-3 Business Days
Albion 90PY10509S 10" x 3" Poly-on-Iron Caster – 7.25" x 5.25" Plate
Part # 90PY10509S
from $594.00
Volume pricing available
Cast IronPlate
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 12.5"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Albion Casters HD Raceway 10" x 3" Green Poly-on-Iron Tapered Roller Bearing Caster with...
Shop Product
2500 lbs
TieredPricing
Albion Casters HD Raceway 8" x 3" Green Poly-on-Iron Tapered Roller Bearing Wheel Caster with Poly-Cam Brake and 7.25" x 5.25" Plate - Heavy-Duty Industrial Caster for Smooth Operation and Enhanced Stability Albion-Casters
Ships in 1-3 Business Days
Albion 90PY08509SP 8" x 3" Cast Iron Caster — 2500 lb
Part # 90PY08509SP
from $638.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Diameter 8"
Capacity 2500 lbs
Wheel Cast Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10.5"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
The Albion 90PY08509SP is a 8" x 3" cast iron plate caster rated 2500...
Shop Product
2500 lbs
TieredPricing
Albion Casters HD Raceway 8" x 3" Green Poly-on-Iron Swivel Caster with Lock - Heavy-Duty 7.25" x 5.25" Plate | Model 90PY08509SL Albion-Casters
Ships in 1-3 Business Days
Albion 90PY08509SL 8" x 3" Poly-on-Iron Swivel Caster with Lock
Part # 90PY08509SL
from $602.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Diameter 8"
Capacity 2500 lbs
Wheel Cast Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10.5"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Albion Casters HD Raceway 8" x 3" Green Poly-on-Iron Caster with 7.25" x 5.25"...
Shop Product
2500 lbs
TieredPricing
Albion Casters HD Raceway 8" x 3" Green Poly-on-Iron Tapered Roller Bearing Caster with 7.25" x 5.25" Plate - Heavy-Duty Industrial Caster for Smooth Operation and Durability | Model 90PY08509S Albion-Casters
Ships in 1-3 Business Days
Albion 90PY08509S 8" x 3" Poly-on-Iron Caster – 7.25" x 5.25" Plate
Part # 90PY08509S
from $520.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Diameter 8"
Capacity 2500 lbs
Wheel Cast Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10.5"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Albion Casters | HD Raceway 8" x 3" Green Poly-on-Iron Tapered Roller Bearing Caster...
Shop Product
2500 lbs
TieredPricing
Albion Casters HD Raceway 8" x 3" Green Poly-on-Iron Rigid Caster with Tapered Roller Bearings and 7.25" x 5.25" Plate - Heavy-Duty Performance, Model 90PY08509R Albion-Casters
Ships in 1-3 Business Days
Albion 90PY08509R 8" x 3" Poly-on-Iron Rigid Caster – 7.25" x 5.25" Plate
Part # 90PY08509R
from $385.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Diameter 8"
Capacity 2500 lbs
Wheel Cast Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10.5"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Albion Casters HD Raceway 8" x 3" Green Poly-on-Iron Tapered Roller Bearing Rigid Caster...
Shop Product
2000 lbs
TieredPricing
Albion Casters HD Raceway 6" x 3" Green Poly-on-Iron Swivel Caster with Lock - 7.25" x 5.25" Plate, Heavy-Duty Performance | Model 90PY06509SL Albion-Casters
Ships in 1-3 Business Days
Albion 90PY06509SL 6" x 3" Cast Iron Caster — 2000 lb
Part # 90PY06509SL
from $586.00
Volume pricing available
Cast IronPlate
Load rating
2000 lbs
Diameter 6"
Capacity 2000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
The Albion 90PY06509SL is a 6" x 3" cast iron plate caster rated 2000...
Shop Product
2000 lbs
TieredPricing
Albion Casters HD Raceway 6" x 3" Green Poly-on-Iron Caster with 7.25" x 5.25" Plate - Heavy-Duty Industrial Caster for Superior Load-Bearing and Durability Albion-Casters
Ships in 1-3 Business Days
Albion 90PY06509S 6" x 3" Poly-on-Iron Caster – 7.25" x 5.25" Plate
Part # 90PY06509S
from $504.00
Volume pricing available
Cast IronPlate
Load rating
2000 lbs
Diameter 6"
Capacity 2000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Albion Casters HD Raceway 6" x 3" Green Poly-on-Iron Caster with 7.25" x 5.25"...
Shop Product
2000 lbs
TieredPricing
Albion Casters HD Raceway 6" x 3" Green Poly-on-Iron Rigid Caster with 7.25" x 5.25" Plate - High-Durability, Heavy-Duty Caster for Industrial Use | Model 90PY06509R Albion-Casters
Ships in 1-3 Business Days
Albion 90PY06509R 6" x 3" Poly-on-Iron Rigid Caster 7.25" x 5.25" Plate
Part # 90PY06509R
from $319.00
Volume pricing available
PolyurethanePlate
Load rating
2000 lbs
Diameter 6"
Capacity 2000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Iron
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Albion Casters HD Raceway 6" x 3" Green Poly-on-Iron Rigid Caster with 7.25" x...
Shop Product

Search
