The Colson D4.05108.335-HT-SS is a 5" x 2" phenolic plate-mount caster rated 1000 lb per caster, mounted on a 4" x 4-1/2" Top Plate plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 5" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Colson on standard-duty industrial carts where bearing life and quiet roll matter more than maximum capacity. The D4.05108.335-HT-SS earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 5" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Colson encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The D4.05108.335-HT-SS is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
1000 lb per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 5" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Colson's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

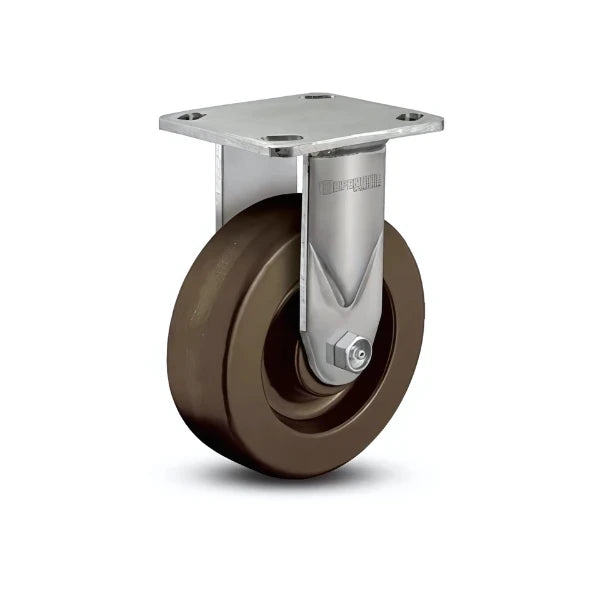

The 5" x 2" Stainless Hi-Temp Phenolic Precision Ball Bearing Rigid Caster with 4" x 4.5" Plate (Model D4.05108.335 HT SS) is engineered for use in industrial environments that demand superior performance and reliability. This caster is specifically designed to handle heavy-duty loads, support high temperatures, and withstand harsh conditions, making it an ideal choice for applications such as manufacturing, material handling, and warehouse use. It combines durability, precision, and ease of use to ensure smooth and reliable performance even under the most challenging conditions.
The D4.05108.335 HT SS caster is built to withstand the rigors of heavy-duty use. Its high load capacity of up to 1000 lb and resistance to heat, wear, and corrosion make it an essential tool for businesses requiring durable and reliable solutions for moving and supporting equipment. Whether used in factories, distribution centers, or any other demanding industrial setting, this caster ensures smooth operations and minimizes downtime, contributing to greater productivity and long-term cost savings.
The D4.05108.335 HT SS caster is RoHS compliant and features an NSF certification as a component (excluding thread guards), ensuring that it meets the highest standards of safety and environmental compliance. Backed by a 3-year warranty, this caster offers peace of mind, knowing that it is manufactured to meet stringent quality standards.
This caster is perfect for a wide range of industrial applications where heat, load, and durability are important factors. Commonly used in manufacturing, material handling, and warehouse operations, it provides a reliable solution for stationary and heavy-duty moving equipment. The caster's high-quality design ensures that it can handle extreme conditions, making it a valuable asset in various industries, including automotive, food processing, and pharmaceuticals.
For industrial operations looking for a caster that offers both precision and reliability, the 5" x 2" Stainless Hi-Temp Phenolic Precision Ball Bearing Rigid Caster (D4.05108.335 HT SS) is a top choice. Its combination of high-temperature resistance, heavy-duty load capacity, and maintenance-free performance ensures that your operations run smoothly and efficiently for years to come.
This Colson D4.05108.335-HT-SS 5" x 2" Phenolic Caster — 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a High Temp Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

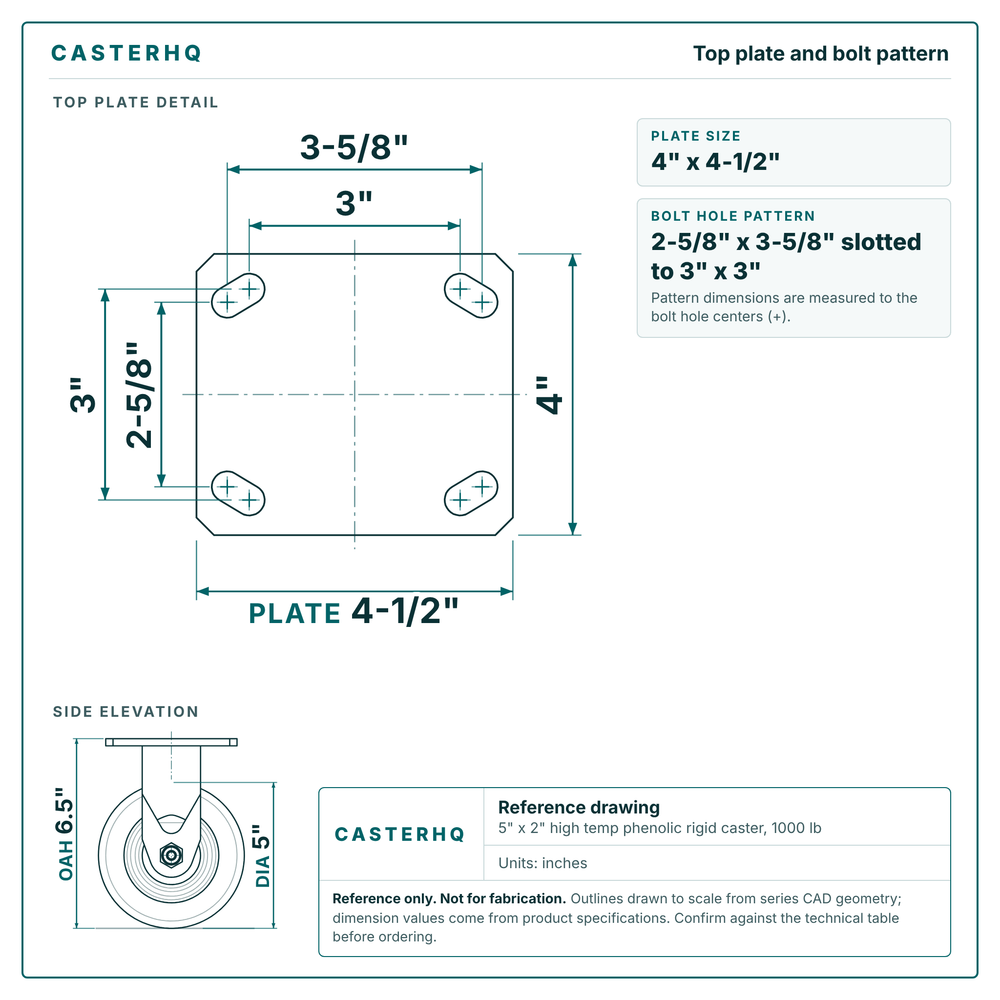

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The High Temp Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

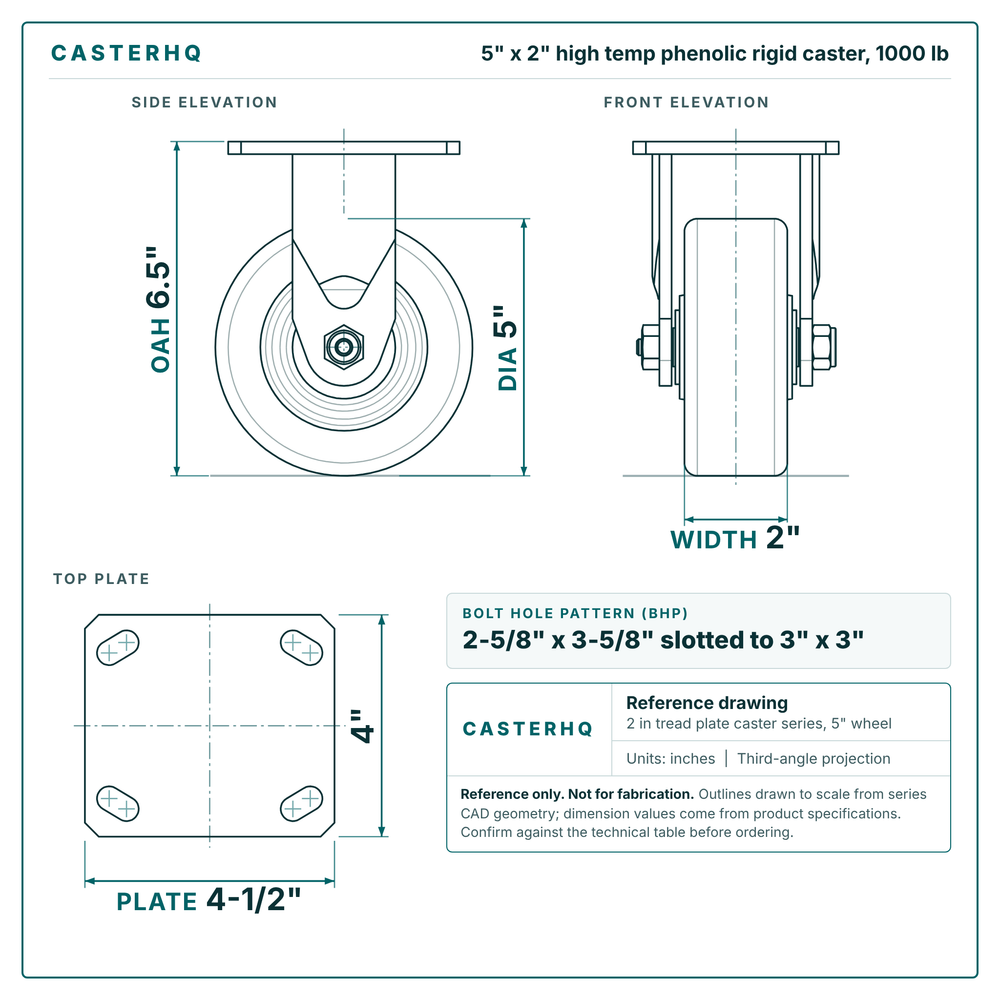

The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$167.00
| Identification | |
| Brand | colson header |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 3" x 3" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | Up to 250°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | High Temp Phenolic |
| Wheel Core Material | Phenolic |
| Frame Material | Zinc Plated Steel |
5" x 2" Phenolic Rigid Caster – 1000 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 1000 lbs · Direct fit
$20
View all 5′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 750 lbsLighter duty | 5" × 2"Polyurethane | Rigid | 6-1/2" | $20.00 | View → | |
| 800 lbsLighter duty | 5" × 2"Nylon | Swivel | — | $28.00 | View → | |
| 1000 lbs | 5" × 2"High Temp Phenolic | Rigid | 6.5" | $167.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | — | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Cast Iron | Rigid | 6-1/2" | $31.00 | View → |
