What does the Colson part number D4.06109.925-BRK4-SS mean?

Colson encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The D4.06109.925-BRK4-SS is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.

What is the load capacity of the D4.06109.925-BRK4-SS?

900 lb per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.

Will the D4.06109.925-BRK4-SS work on rough concrete?

Yes for cast iron and steel wheels. 6" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.

Is the D4.06109.925-BRK4-SS made in the USA?

Colson's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.

What is the lead time?

In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.

What is the load capacity of this caster?

This Colson D4.06109.925-BRK4-SS 6" x 2" Polyurethane Hi Caster — 900 lb is rated to 900 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?

This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

What plate size and bolt pattern does it use?

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?

This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?

Rated for -40°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?

The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?

The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Colson D4.06109.925-BRK4-SS 6" x 2" Polyurethane Hi Caster — 900

Extended Product Information

Product Overview

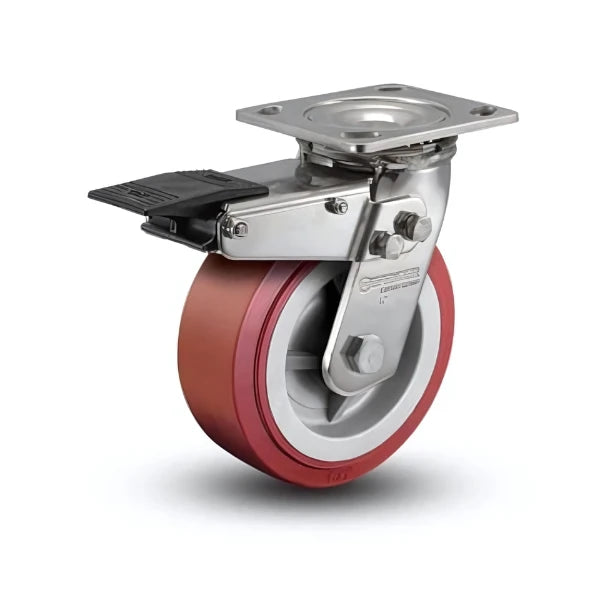

The 6" x 2" Stainless HI-TECH Polyurethane Precision Ball Bearing Caster with Total Lock and 4" x 4.5" Plate - D4.06109.925 BRK4 SS is a premium caster solution designed for high-demand environments. Combining the strength of stainless steel with HI-TECH polyurethane, this caster is engineered to deliver both durability and smooth mobility, making it an excellent choice for industrial and commercial applications.

Equipped with precision ball bearings, this caster ensures seamless and quiet movement, ideal for settings where noise control and reliable performance are essential. Its Total Lock Brake feature provides complete stability, allowing users to secure the caster firmly in place. With a load capacity of 900 lbs, this caster is built to handle heavy-duty tasks while maintaining long-lasting functionality.

Key Benefits

Enhanced Safety: The Total Lock Brake (DTBRK4) feature ensures the caster stays securely in place, providing stability and preventing unwanted movement during operation.
Heavy-Duty Capacity: With a robust 900 lb load capacity, this caster is suitable for demanding applications, including industrial carts and equipment.
Smooth, Quiet Operation: Pedestal Precision Ball bearings enable effortless, noise-reduced movement, perfect for environments where quiet operation is a priority.
Temperature Resistant: The FDA-approved grease offers excellent performance across a wide temperature range (-40°F to 600°F), ensuring reliability in various settings.
Corrosion-Resistant Finish: Constructed with stainless steel, this caster withstands corrosion, making it ideal for indoor and outdoor use.

Usage Recommendations

This 6" x 2" Stainless HI-TECH Polyurethane Precision Ball Bearing Caster is designed for heavy-duty applications across industrial, commercial, and institutional settings. Its durable build and safety features make it an ideal choice for mobile workstations, transport carts, and various equipment requiring dependable mobility and stability. The caster’s high load capacity and Total Lock Brake provide enhanced operational safety and stability in demanding environments.

Whether used in manufacturing facilities, food processing plants, or general warehouses, this caster is built to withstand rigorous use while providing smooth and reliable movement. For applications that require additional safety, the caster’s Total Lock Brake adds an extra layer of security, making it suitable for any operation where stability is essential.

Conclusion

The 6" x 2" Stainless HI-TECH Polyurethane Precision Ball Bearing Caster - D4.06109.925 BRK4 SS combines exceptional durability, smooth operation, and reliable safety features, making it a superior choice for a wide range of demanding applications. With its advanced design, high load capacity, and temperature-resistant components, this caster is engineered for long-lasting, dependable performance.

Invest in quality and reliability with a caster built to meet the highest standards of performance, safety, and versatility. Perfect for professionals looking to enhance their equipment’s functionality, this caster delivers strength and stability for everyday tasks and challenging environments alike.

Identification
Brand	colson header
Dimensions & Mounting
Wheel Diameter	6"
Wheel Tread Width	2"
Overall Height	7.5"
Plate Size	4" x 4-1/2"
Bolt Hole Pattern	3" x 3"
Mount Style	Plate
Rig Type	Swivel with Total Lock Brake
Load & Performance
Wheel Capacity	900 lbs
Temp Range	-40°F to 600°F
Brake Type	Total Lock Brake
Materials & Finish
Wheel Material	Polyurethane
Frame Material	Zinc Plated Steel

Casters (in stock)	Load capacity	Wheel	Type	Overall height	Price
Direct fit6" x 2" Thermo Rubber Rigid Caster – 600 lb	600 lbsLighter duty	6" × 2"Gray Rubber	Rigid	7-1/2"	$31.00	View →
6" x 2" Gray Iron Spring Loaded Caster – 700 lb	700 lbsLighter duty	6" × 2"Cast Iron	—	—	$151.00	View →
This itemColson D4.06109.925-BRK4-SS 6" x 2" Polyurethane Hi Caster — 900 lb	900 lbs	6" × 2"Polyurethane	Swivel with Total Lock Brake + brake	7.5"	$244.00	Viewing
Direct fit6" x 2" Polyurethane Rigid Caster 4" x 4-1/2" Plate – 900 lb	900 lbsSame capacity	6" × 2"Polyurethane	Rigid	7-1/2"	$23.00	View →
6" x 2" Blue Polyurethane Spring Loaded Caster – 1000 lb	1000 lbsHeavier duty	6" × 2"Blue Solid Polyurethane	—	—	$182.00	View →
