The Albion 16SE05228SFBA is a 5" x 2" plate caster rated 1000 lbs per caster, mounted on a 4" x 4-1/2" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 5" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The 16SE05228SFBA earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 5" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 16SE05228SFBA is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
1000 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 5" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

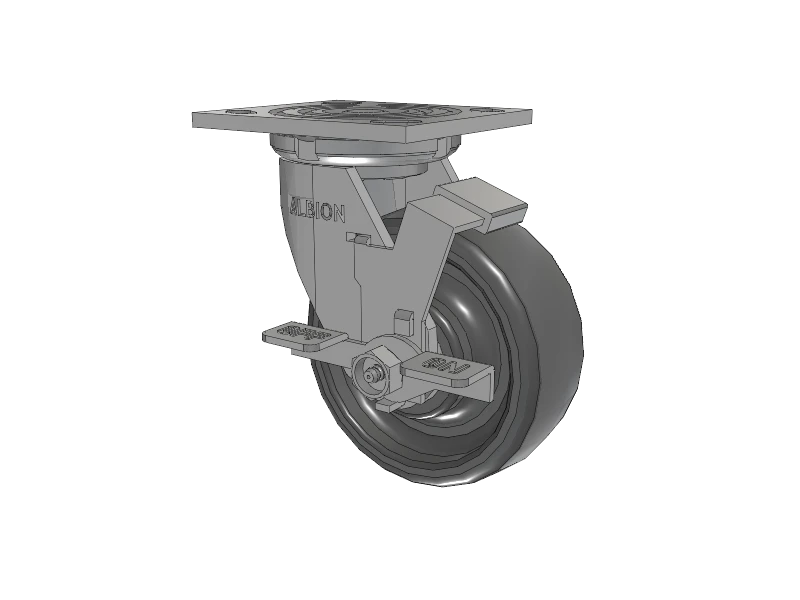

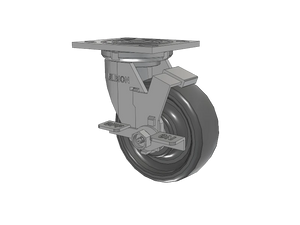

The Albion Casters 5" x 2" Solid Elastomer Wheel Side-Lock Caster (Model 16SE05228SFBA) is a highly durable and reliable caster, ideal for a wide range of industrial applications. Built with a solid elastomer wheel, this caster offers excellent load-bearing capacity, superior shock absorption, and reduced noise levels, making it an ideal choice for environments that demand both heavy-duty performance and quiet operation.
Engineered for high-performance in the most demanding environments, this caster features a solid elastomer wheel that is resistant to chemicals, moisture, and wear. Its robust construction minimizes downtime and maintenance, ensuring long-term reliability. The integrated side-lock ensures that once in place, the caster remains secure, offering peace of mind when working with heavy or valuable equipment.
Albion Casters is a trusted name in the caster industry, known for producing high-quality, durable products made in the USA. With decades of experience, Albion's casters are engineered to deliver unparalleled performance, backed by a commitment to innovation and customer satisfaction. The 5" x 2" Solid Elastomer Wheel Side-Lock Caster continues this tradition of excellence, offering a combination of strength, precision, and ease of use that stands out in the market.
Upgrade your equipment with the Albion Casters 5" x 2" Solid Elastomer Wheel Side-Lock Caster and experience improved mobility, durability, and noise reduction. Whether you need it for industrial, medical, or commercial use, this caster is designed to meet and exceed your expectations. Choose Albion Casters for reliability, performance, and longevity.
This Albion 16SE05228SFBA 5" x 2" Caster — 1000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Solid Elastomer wheel with a 2" tread width. This wheel material balances load capacity, rolling ease, and floor protection for the intended application.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -45°F to 230°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Solid Elastomer wheel performs best on smooth concrete and finished warehouse floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$149.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -45°F to 230°F |
| Materials & Finish | |
| Wheel Material | Solid Elastomer |
| Frame Material | Zinc Plated Steel |
