PRODUCT CODE: 90CA10501S

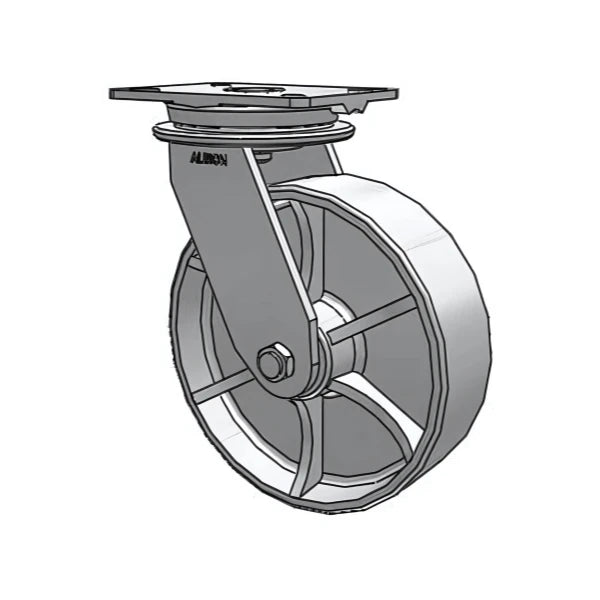

The Albion 90CA10501S is a 10" × 3" cast iron swivel caster rated 2,800 lb per caster, mounted on a 7-1/4" × 5-1/4" plate with a heat-treated hardened raceway and roller-bearing wheel. It is built for heavy industrial use where wheel diameter, load capacity, and bearing life take priority over floor protection. The 10-inch wheel rolls over expansion joints, debris, and uneven concrete that smaller wheels stall on, and the cast-iron tread shrugs off shock impact in foundries, steel mills, AGV chassis, and tooling carts. Made in Albion, Michigan, USA. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100.
| Manufacturer Part Number | 90CA10501S |
|---|---|
| Brand & Series | Albion HD Raceway (90 Series) |
| Caster Type | Top-plate swivel |
| Load Capacity (per caster) | 2,800 lb (1,270 kg) |
| Capacity per 4-caster cart | 11,200 lb dynamic / 8,615 lb with 1.3× safety factor |
| Wheel Diameter | 10" (254 mm) |
| Wheel Tread Width | 3" (76 mm) |
| Wheel Material | Cast iron, machined tread |
| Wheel Bearing | Roller bearing, 1/2" axle bore |
| Top Plate Size | 7-1/4" × 5-1/4" |
| Bolt Hole Pattern | 5-1/4" × 7-1/4" (4 holes) |
| Bolt Hole Size | 7/16" diameter |
| Overall Height | 12-1/2" |
| Swivel Radius | 5-3/4" |
| Raceway | Heat-treated, hardened, sealed |
| Operating Temp Range | -45°F to +180°F |
| Country of Origin | USA (Albion, Michigan) |
| Federal Procurement | BAA / TAA compliant — documentation available on request |
I spec the 90CA10501S on AGV chassis and motor-base carts where wheel circumference is the variable that drives bearing life. A 10-inch wheel rolls 31.4" per revolution; a 6-inch wheel rolls 18.8". At the same travel speed, that is 67% fewer RPM and substantially less raceway heat. On long-haul plant routes you will see 2–3× the service interval over a 6" or 8" comparable. Pair this swivel with the rigid 90CA10501R on the trailing axle for true four-position kinematics. If your floor has expansion joints over 1/2" wide, step up to a 12" wheel.
| SKU | Mount | Capacity | Brake | Price |
|---|---|---|---|---|
| 90CA10501R | Rigid | 2,800 lb | — | $255 |
| 90CA10501S | Swivel | 2,800 lb | — | $438 |
| 90CA10501SP | Swivel | 2,800 lb | Poly-cam | $563 |
Albion encodes its HD Raceway part numbers in this order — 90 = HD Raceway series, CA = cast iron wheel, 10 = 10-inch wheel diameter, 5 = 7-1/4" × 5-1/4" plate, 01 = roller bearing, S = swivel mount. The R suffix is rigid, SP is swivel with poly-cam brake.
2,800 lb per caster, dynamic. On a 4-caster cart with even load distribution that is 11,200 lb total. We recommend applying a 1.3× safety factor for moving loads on uneven floors, which yields 8,615 lb usable per cart.
Yes. The 10-inch cast iron wheel diameter is large enough to roll over 1/2" expansion joints, debris, and uneven seams that stall 6-inch and 8-inch wheels. For polished concrete or epoxy floors where surface protection matters, switch to the poly-on-iron 90PY10501S — same dimensions, kinder to the floor.
The S is a swivel caster (360° rotation); the R is rigid (fixed forward/back). Standard 4-caster cart configuration is two swivel on the front and two rigid on the back for tracking stability under power and easier steering at slow speed.
No. For a brake version, order the 90CA10501SP (built-in poly-cam brake that bears against the wheel tread) or add a separate floor lock. We can ship a matched 4-caster set with two swivels + brakes and two rigids on a single PO.
Yes. Albion manufactures the entire HD Raceway series in Albion, Michigan. We can provide BAA/TAA-compliant Country-of-Origin documentation for federal, defense, and aerospace procurement on request — typical turnaround under 24 hours.
In stock at our Mansfield, TX warehouse. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Quantities above 100 ship within 1-2 business days. Drop-ship from Albion factory is available for production volume orders.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
The Albion Casters HD Raceway 10" x 3" Cast Iron Wheel Swivel Caster is engineered for exceptional performance in heavy-duty industrial environments. With a robust cast iron wheel and a solid mounting plate, this caster is designed to provide stability and reliability, ensuring smooth and efficient movement of heavy loads across various surfaces.
Constructed from high-quality cast iron, this Swivel caster is built to withstand the rigors of industrial use. Its 10-inch diameter and 3-inch width provide excellent load-bearing capabilities, while the 7.25" x 5.25" plate allows for versatile mounting options. The Swivel design ensures that the caster maintains a straight path, making it ideal for applications where direction control is essential.
Designed to enhance mobility, the Albion Casters HD Raceway caster reduces friction and minimizes wear, allowing for a smoother operation. This caster is particularly suited for environments such as warehouses, factories, and workshops, where heavy loads need to be moved efficiently. Its low maintenance requirements further enhance its appeal, making it a cost-effective solution for your mobility needs.
This Swivel caster is perfect for a wide range of applications, from material handling to equipment mobility. Whether you're moving machinery, pallets, or heavy-duty carts, the Albion Casters HD Raceway caster provides the reliability and performance needed to get the job done. Its heavy-duty construction ensures that it can handle the toughest tasks with ease.
Invest in the Albion Casters HD Raceway 10" x 3" Cast Iron Wheel Swivel Caster for a durable, high-performance mobility solution that meets the demands of any industrial environment. Experience enhanced efficiency, reliability, and user satisfaction with this top-quality caster, designed to improve your equipment’s mobility while ensuring long-lasting performance.
$438.00
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 12.5" |
| Wheel Capacity | 2800 lbs |
| Temp Range | -20°F to 180°F |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Mount Style | Plate |
| Plate Size | 5-1/4" x 7-1/4" |
| Rig Type | Swivel |
| Brake Type | No Brake |
