All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Rubber and polyurethane favor floor protection; phenolic and steel favor heavy capacity. Compare materials →
















































| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Phenolic | 8, 10 and 12 in | 2,500 to 3,500 lb | Up to 250°F | hard and easy rolling on smooth, dry floors | |
| Cast iron | 6, 8, 10 and 12 in | 2,000 to 3,500 lb | -40°F to 180°F | heat, chips and heavy loads on rough floors | |
| Polyurethane | Cast iron | 6, 8, 10 and 12 in | 2,000 to 3,500 lb | -40°F to 180°F | quiet, floor-friendly and long wearing |
Ratings are for single casters of Albion 310 series casters, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|

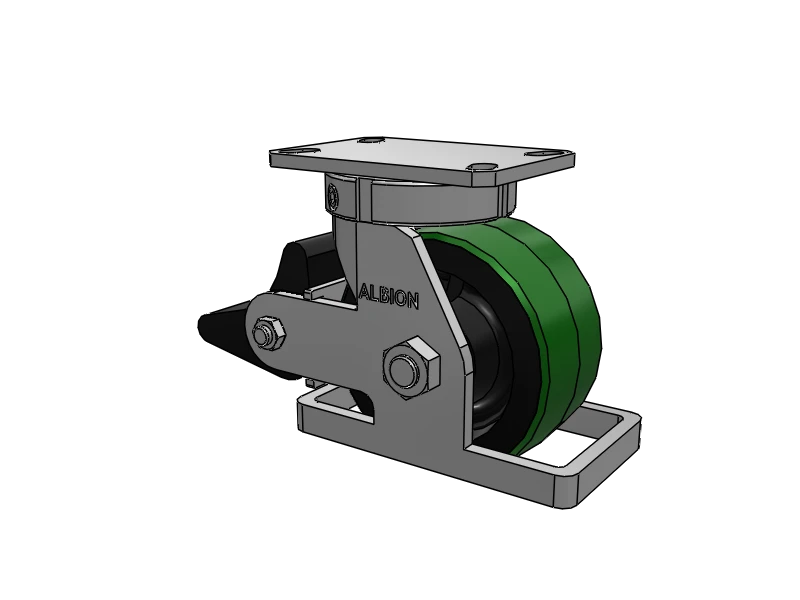

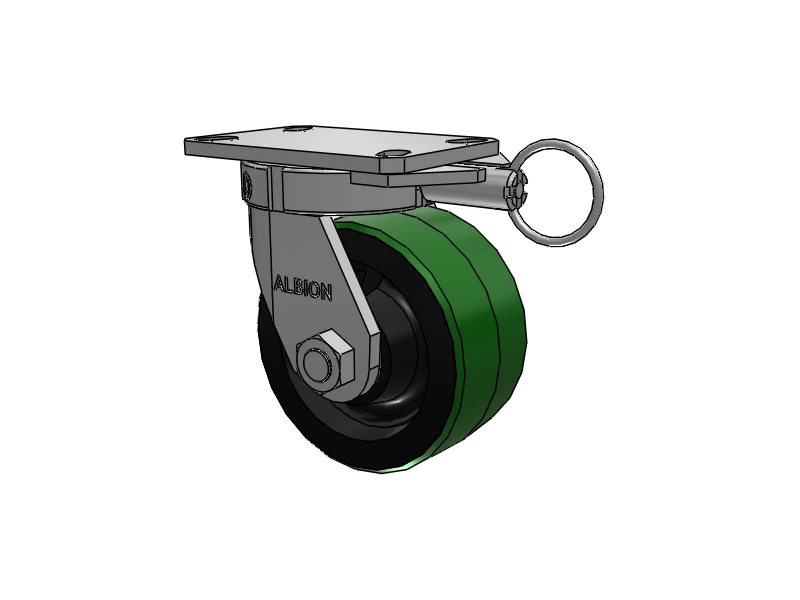

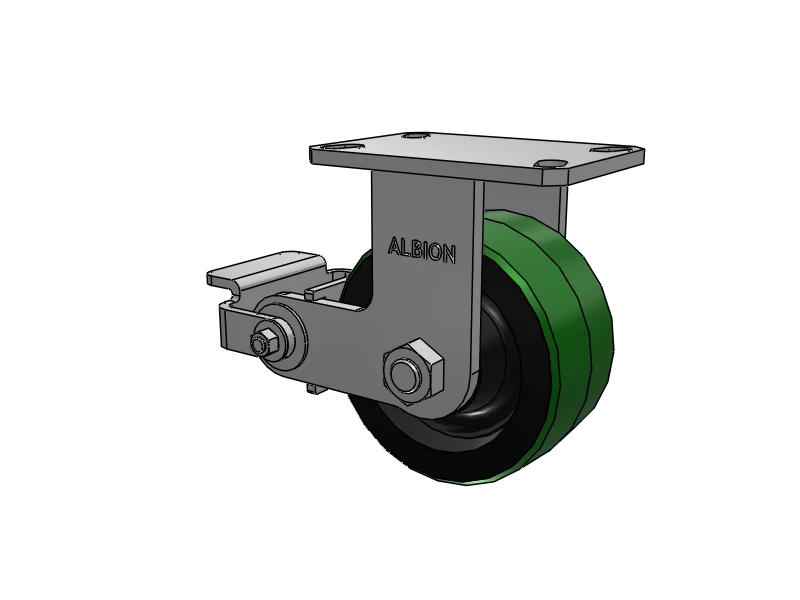

| 6 x 3 in | cast iron and polyurethane | 2,000 lb |

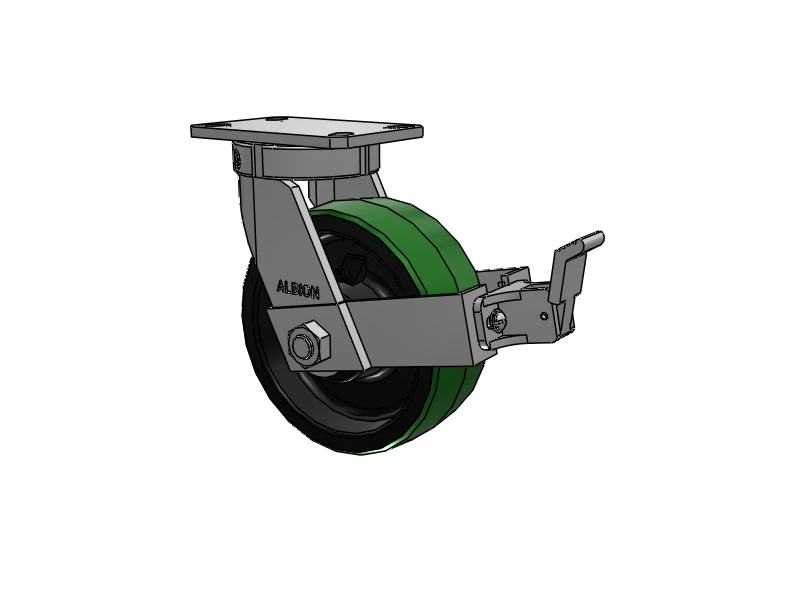

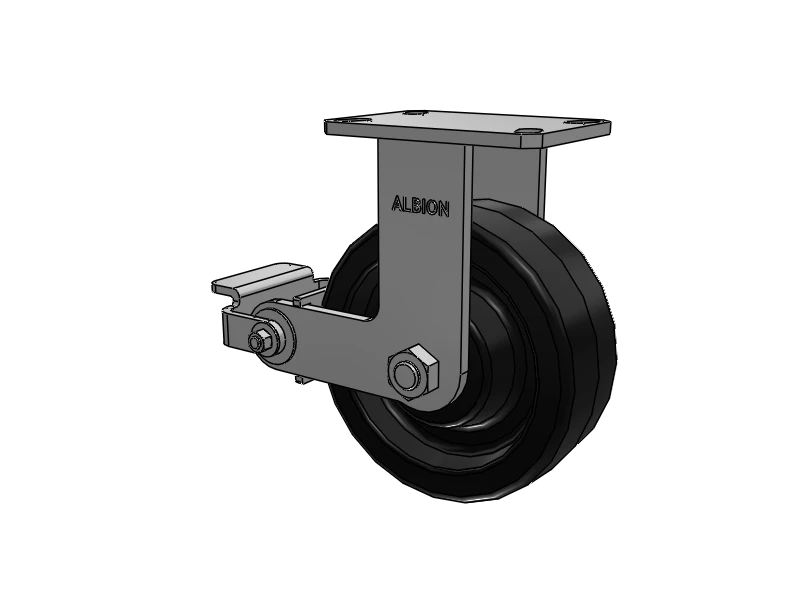

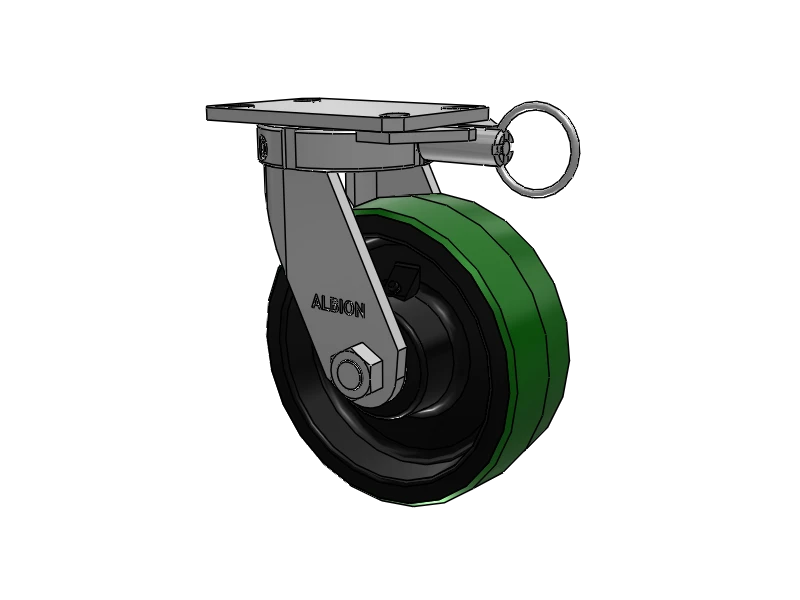

| 8 x 3 in | phenolic, cast iron and polyurethane | 2,500 to 3,000 lb |

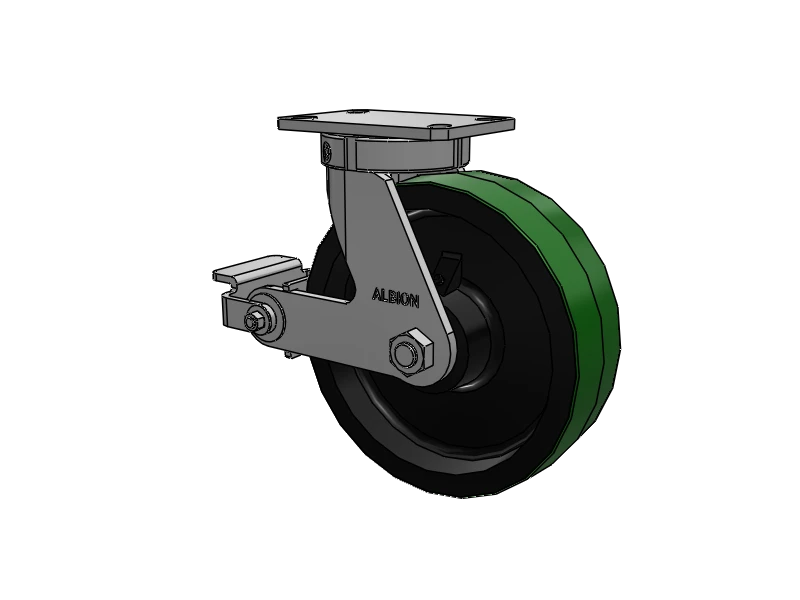

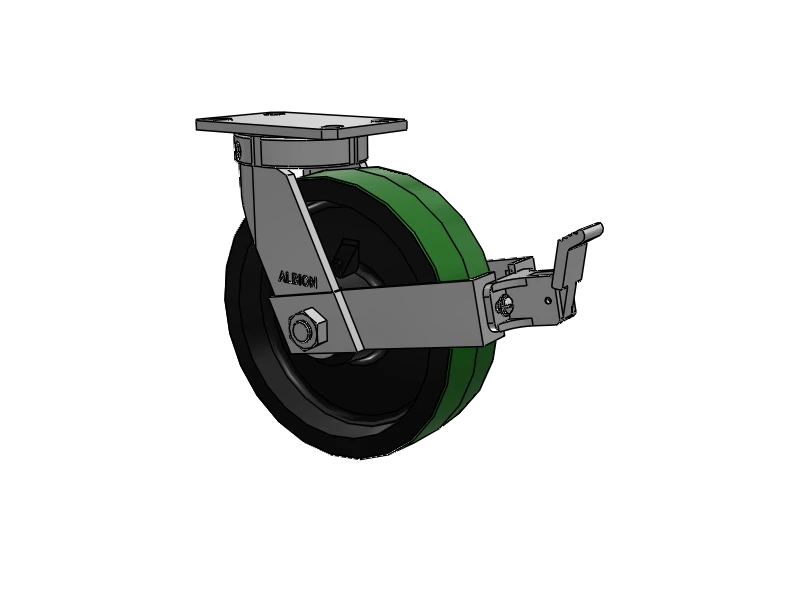

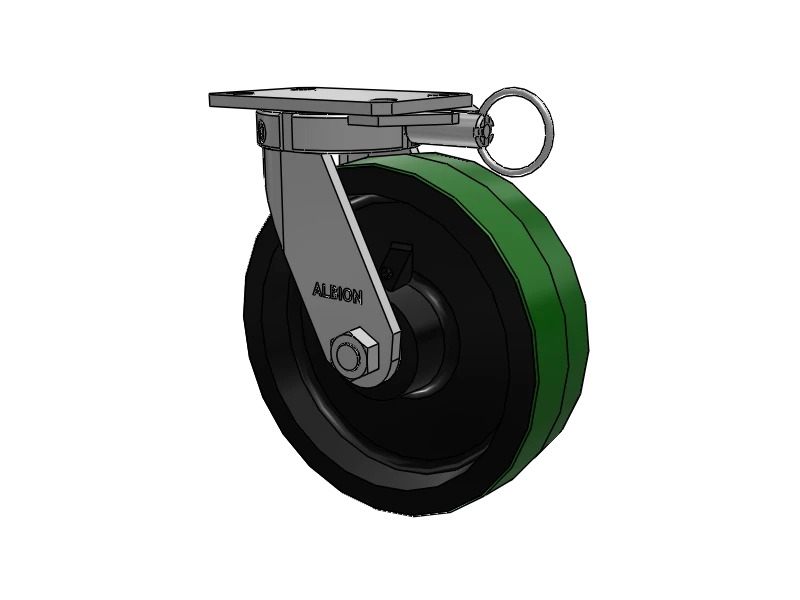

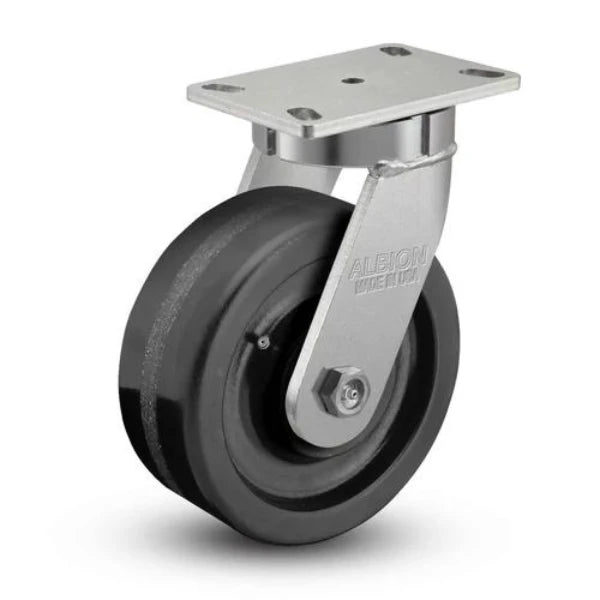

| 10 x 3 in | phenolic, polyurethane and cast iron | 2,900 to 3,000 lb |

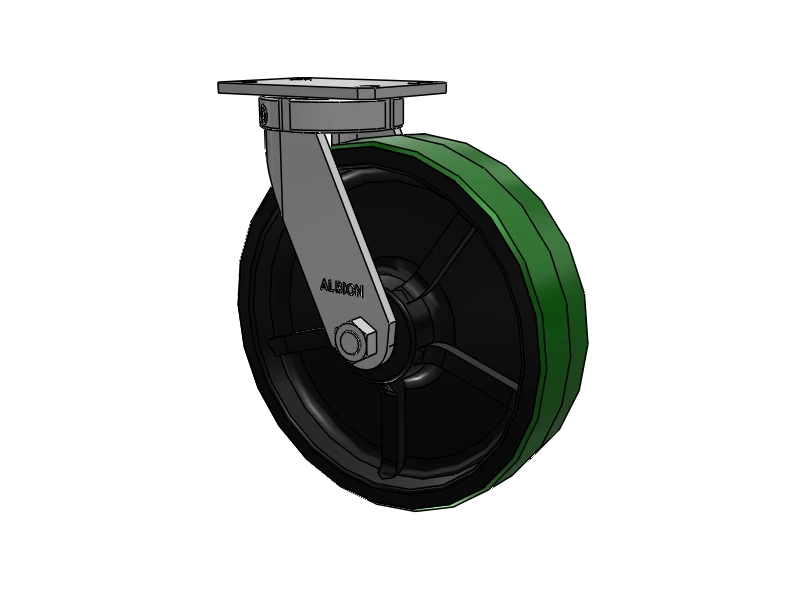

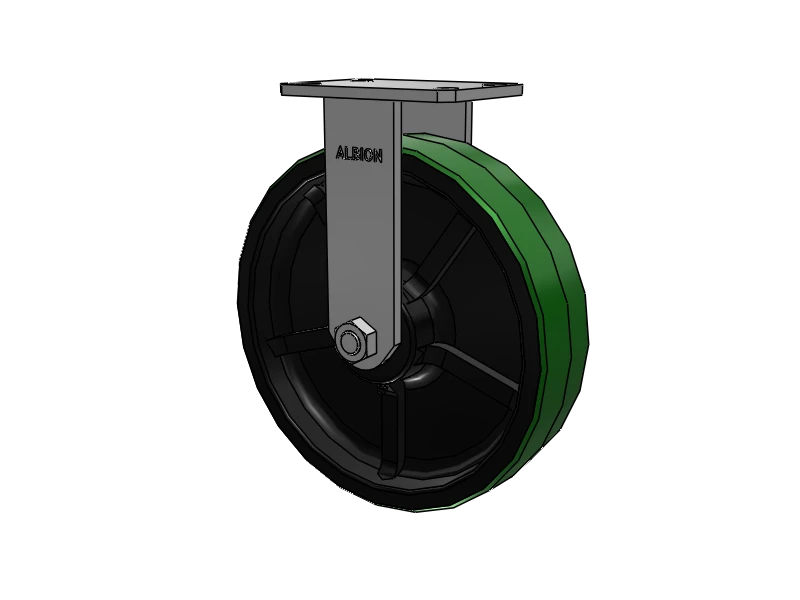

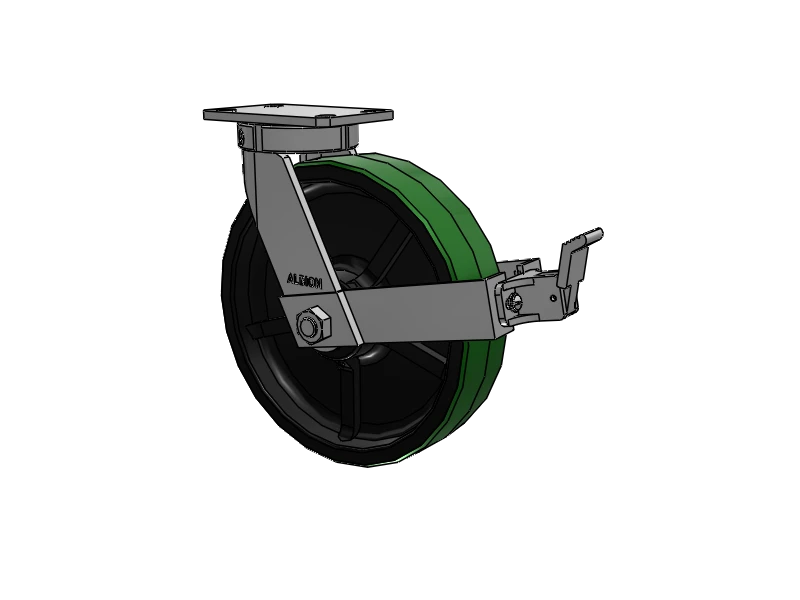

| 12 x 3 in | phenolic, cast iron and polyurethane | 3,500 lb |
Single Albion 310 series casters are rated 2,000 to 3,500 lb; most fall between 2,500 and 3,500 lb.
Most Albion 310 series casters use 4-1/2 x 6-1/4 in. Other plates on Albion 310 series casters: 3-3/8 x 5-1/4 in.
Phenolic leads on Albion 310 series casters, rated 2,500 to 3,500 lb per caster. Among Albion 310 series casters, cast iron is next at 2,000 to 3,500 lb.
