Albion Heavy-Duty Casters by Plate Size · 4"–12" · 800–20,000 lb · Cast Iron

This collection holds Plate Size 5610 Plate Casters with semi steel, forged steel and polyurethane wheels, built for heavy equipment, dies, molds, and plant carts that move very heavy loads. Casters in this collection range from 800 to 30,000 lb per caster. Wheels in this category range from 1 up to 12 inches in diameter with 2 to 5-1/4 in tread widths. The collection includes swivel, rigid, and brake models. Kingpinless swivels hold up better under shock and repeat loads. Dual wheel casters split the load over two wheels and swivel with less effort under heavy loads. Flanged and V groove track wheels ride on rail or angle iron track for straight line travel. Semi steel (gray iron) rolls with low effort and shrugs off debris. It is loud and can mark finished floors. Choose swivel casters when the cart must turn in place and rigid casters for straight travel. Semi steel aisle: semi steel casters. Wheel hub: replacement wheels.

Shop by type

8 types

Wheel = wheel diameter · capacity is per caster.

Albion casters on large plates by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits

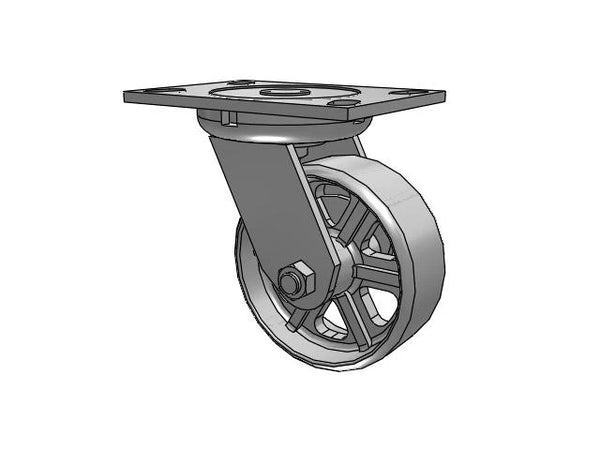

Cast iron		4 to 12 in	800 to 3,500 lb	Up to 800°F	heat, chips and heavy loads on rough floors
Steel		6, 7-1/4, 8 and 10 in	3,500 to 20,000 lb	Up to 800°F	heavy loads and track
Forged steel		6, 8 and 10 in	3,500 to 20,000 lb	Up to 800°F	very high loads and impact
Polyurethane	Cast iron	8, 10 and 12 in	2,000 to 6,600 lb	-40°F to 180°F	quiet, floor-friendly and long wearing

Ratings are for single casters of Albion casters on large plates, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated
4 x 2 in	cast iron	800 to 1,000 lb
6 x 2 in	cast iron	1,000 to 1,400 lb
6 x 3 in	cast iron, steel and forged steel	2,800 to 17,000 lb
8 x 3 in	cast iron, steel and forged steel	2,000 to 5,500 lb
8 x 4 in	forged steel and steel	8,000 to 20,000 lb
10 x 3 in	cast iron, steel and forged steel	2,800 to 5,400 lb
10 x 4 in	forged steel and steel	5,000 to 17,000 lb
12 x 3 in	cast iron	2,800 lb

Choosing Albion casters on large plates

Load: plan on three casters carrying a four-caster cart [S2]; at 5,400 lb each, a common rating here, that is about 16,200 lb, and the 20,000 lb top rating covers about 60,000 lb.
Mount: most Albion casters on large plates use a 5-1/4 x 7-1/4 in top plate; 4-1/2 x 6-1/4 in and 8-1/2 x 8-1/2 in plates are listed too; measure bolt hole centers on the old plate and compare.
Floor: on Albion casters on large plates, polyurethane is kinder to tile and finished floors; cast iron, steel and forged steel roll easier under heavy loads on smooth concrete.
Rig: swivel and rigid Albion casters on large plates are listed, with face contact brake and side lock brake options.
Heat: among Albion casters on large plates, the highest listed range is up to 800°F on cast iron; check the temperature field on each listing before oven or hot-room use.

Albion casters on large plates questions

How much weight can Albion casters on large plates carry?

Single Albion casters on large plates are rated 800 to 20,000 lb; most fall between 2,800 and 5,400 lb.

What top plate do Albion casters on large plates use?

Most Albion casters on large plates use 5-1/4 x 7-1/4 in. Other plates on Albion casters on large plates: 4-1/2 x 6-1/4 in and 8-1/2 x 8-1/2 in.

What wheel material is most common on Albion casters on large plates?

Cast iron leads on Albion casters on large plates, rated 800 to 3,500 lb per caster. Among Albion casters on large plates, steel is next at 3,500 to 20,000 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
