All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.





















| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|

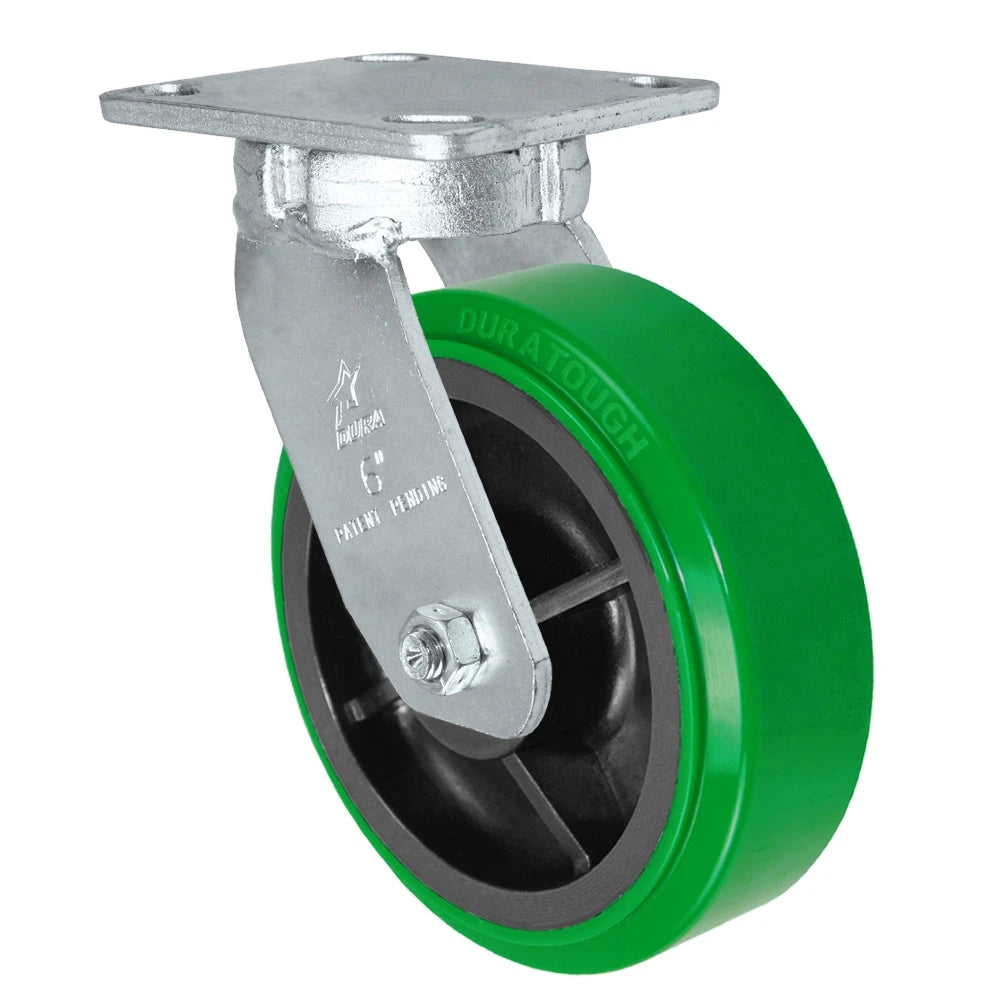

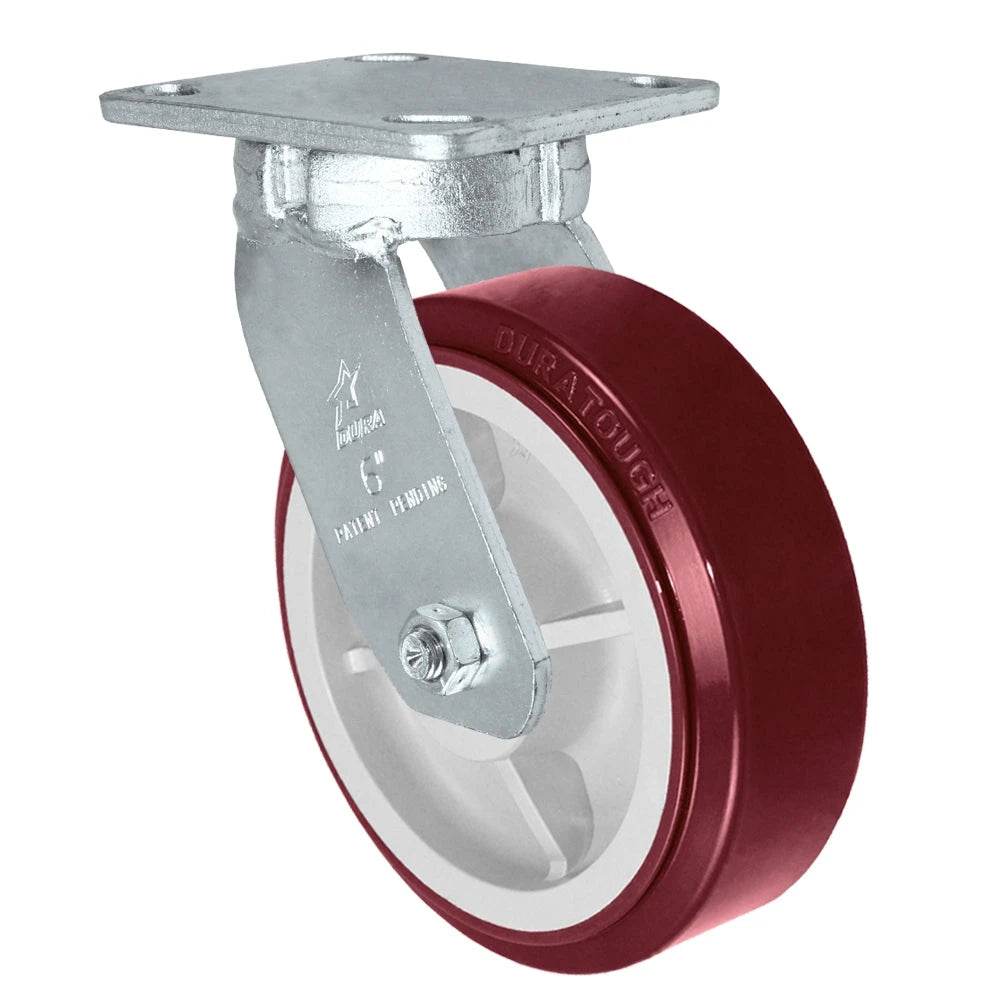

| Polyurethane | Steel and Polyolefin | 4 to 12 in | 700 to 3,500 lb | -45°F to 180°F | quiet, floor-friendly and long wearing |

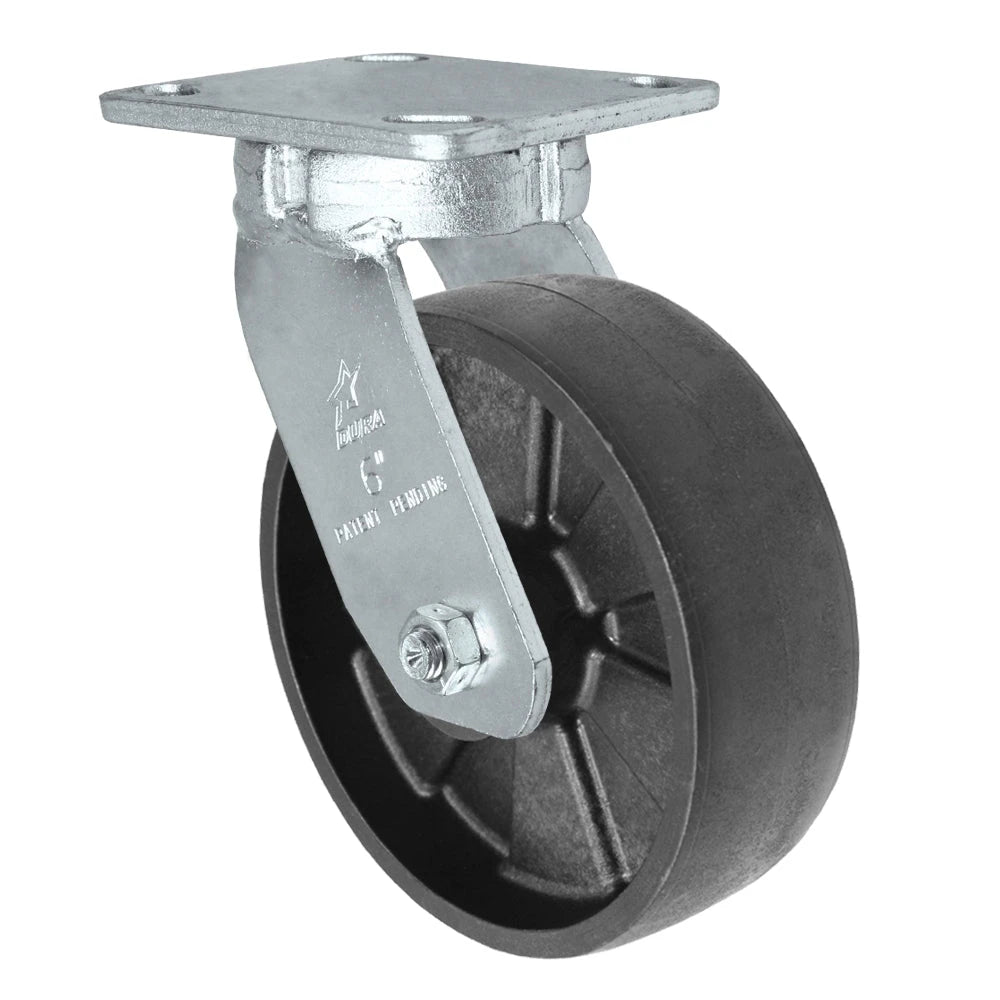

| Nylon | 4, 5, 6, 8 and 10 in | 800 to 3,000 lb | Up to 180°F | low rolling effort on smooth floors, handles wet areas | |
| Rubber | 4 to 12 in | 500 to 1,300 lb | -45°F to 180°F | cushioned and quiet on finished floors | |
| Ductile iron | Steel | 4 to 12 in | 1,500 to 6,000 lb | -45°F to 800°F | heavy loads with better impact strength than cast iron |
| Phenolic | 4, 5, 6, 8 and 12 in | 800 to 3,500 lb | Up to 250°F | hard and easy rolling on smooth, dry floors | |
| Semi-steel | 4 to 12 in | 700 to 3,000 lb | -45°F to 800°F | rough floors, heat and heavy loads |
Ratings are for single casters of Durastar kingpinless caster & maintenance free casters, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 4 x 2 in | polyurethane, phenolic and rubber | 450 to 1,500 lb |
| 5 x 2 in | polyurethane, nylon and phenolic | 500 to 1,500 lb |
| 6 x 2 in | polyurethane, nylon and phenolic | 600 to 2,000 lb |
| 6 x 3 in | polyurethane, rubber and phenolic | 750 to 6,000 lb |
| 8 x 2 in | polyurethane, nylon and phenolic | 675 to 2,000 lb |
| 8 x 3 in | polyurethane, ductile iron and semi-steel | 900 to 6,000 lb |
| 10 x 3 in | ductile iron, semi-steel and rubber | 1,100 to 6,000 lb |
| 12 x 3 in | polyurethane, rubber and ductile iron | 1,300 to 6,000 lb |
Related to Durastar kingpinless caster & maintenance free casters: industrial casters.
Single Durastar kingpinless caster & maintenance free casters are rated 500 to 6,000 lb; most fall between 1,000 and 2,000 lb.
Most Durastar kingpinless caster & maintenance free casters use 4 x 4-1/2 in. Other plates on Durastar kingpinless caster & maintenance free casters: 4-1/2 x 6-1/4 in and 5-1/4 x 7-1/4 in.
Polyurethane leads on Durastar kingpinless caster & maintenance free casters, rated 700 to 3,500 lb per caster. Among Durastar kingpinless caster & maintenance free casters, nylon is next at 800 to 3,000 lb.
