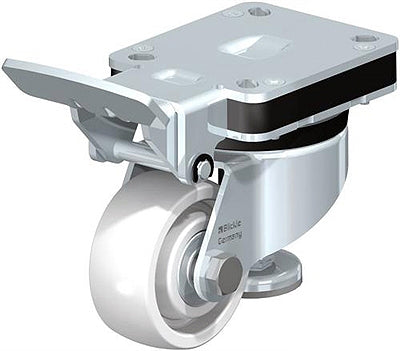

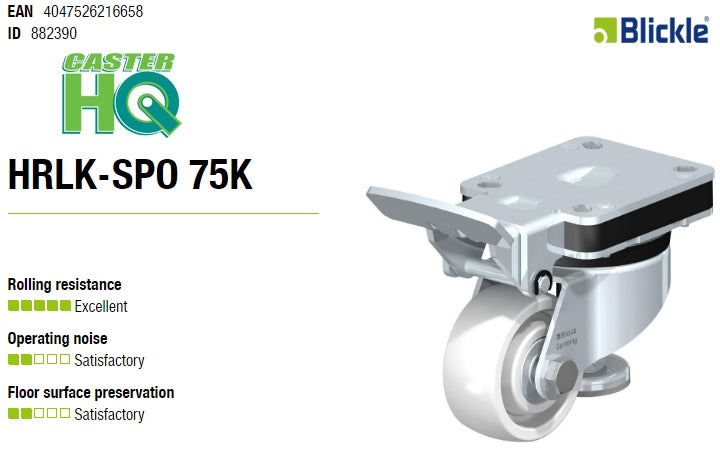

Levelling Caster with integrated truck lock and top plate fitting combined with a Heavy duty nylon wheel.
Rig:
Made of heavy pressed steel, with heavy fork and top plate fitting, very strong bolted and secured central kingpin, double ball bearing in the swivel head, additionally reinforced by the integration of four specially shaped and hardened bearing seats resulting in a very high resistance to shock and impact loads. Steel truck lock. Height adjustment with flat spanner. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free.
Wheels: Made of high-quality, impact-resistant nylon, very rugged, heavy wheel design, very low rolling and swivelling resistance, smooth running performance on even floors, very high abrasion resistance.
Tread/tire: Made of high-quality, impact-resistant Nylon.
Wheel center color: Natural White
| Plate size | 100 x 85 |
| Bolt hole spacing | 80 x 60 |
| Bolt hole Ø | 9 |
| Wheel Ø | 75 mm (D) |
| Wheel width | 32 mm (T2) |
| Load capacity | 300 kg |
| Total height | 118 mm (H) |
| Max. total height | 120 mm (h) |
| Adjustment range | 2 mm (T4) |
| Offset swivel caster | 56 mm |
| unit weight | 1,7 kg |
| Temperature resistance to | -25 ° C |
| Temperature resistance to | 80 ° C |
| tread and tire hardness | 70° Shore D |
| Bearing type | Ball bearing |
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This 3" x 1-1/4" Nylon Swivel Leveling Caster – 660 lb is rated to 660 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 1-1/4" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.
This caster uses a top-plate mount with a 85" x 100" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$471.00
| Identification | |
| Brand | Blickle |
| Dimensions & Mounting | |
| Wheel Diameter | 3" |
| Wheel Tread Width | 1-1/4" |
| Plate Size | 85" x 100" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 660 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Nylon |
| Frame Material | Zinc Plated Steel |
