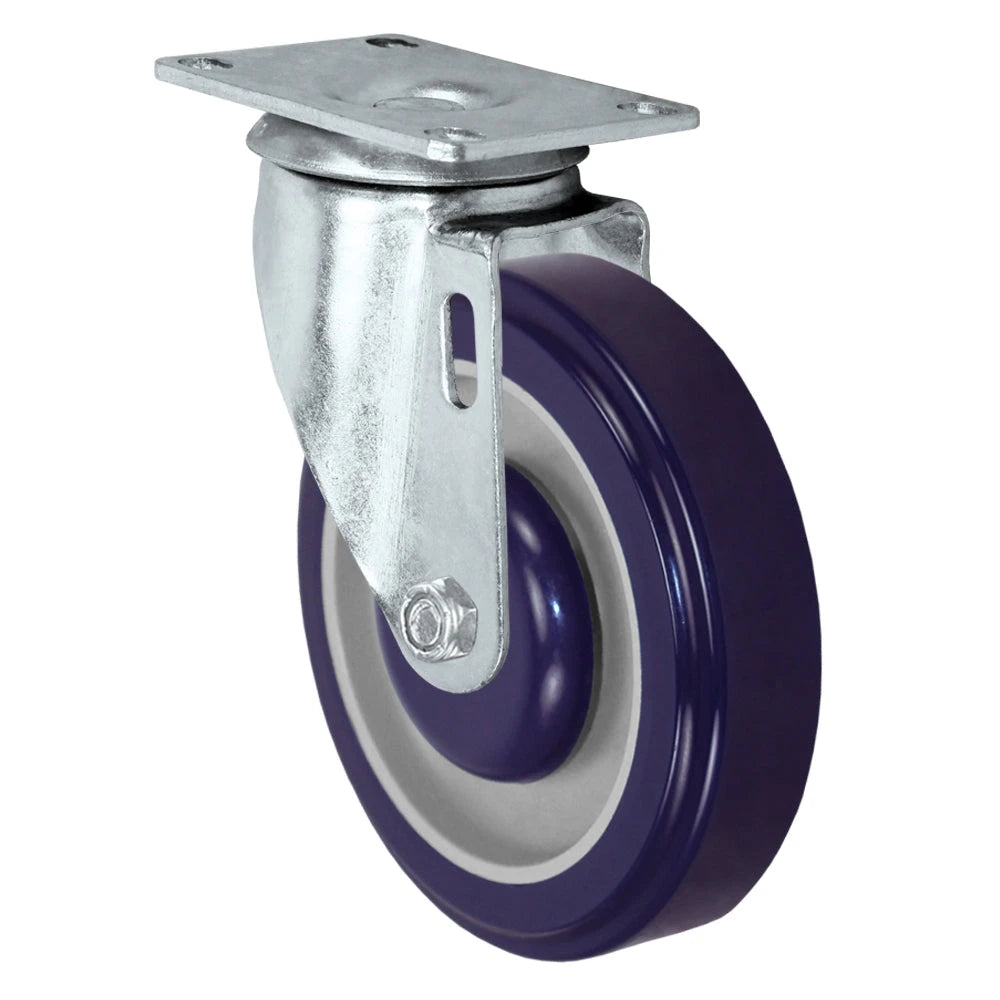

Our 1300 Series Casters are Economical and Versatile. These casters are perfect for material handling, maintenance carts, linen carts, bakeries, food service, dollies, and more! We use double ball bearing raceways for easy 360-degree swiveling action and durability, heavy gauge cold rolled steel, and beautiful zinc plated finish for superior rust and corrosion resistance. We provide a complete dust cover around the raceway of the caster, which prevents dust and debris from accumulating and allows this caster a longer lifespan with a much smoother swiveling raceway.
The wheel is a dark purple non-marking polyurethane tread mechanically locked to a polyolefin core. The polyurethane wheel has a sealed precision bearing for easy initiation, increased ergonomics, and a full thread guard which protects the accumulation of linen, hair, string, and debris from being wrapped around the axle or bearing. Full thread guards are great for many applications where the floor has debris, such as the textile industry, to name one. The polyurethane tread wheel is chemically resistant and will not disintegrate like other wheels due to harsh chemicals or washdown applications. The temperature range of this wheel is -20F to 180F, and the hardness (durometer) is a Shore D 60 (+/-5).
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This 5" x 1.25" Polyurethane Swivel Caster – 350 lb is rated to 350 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 1-1/4" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

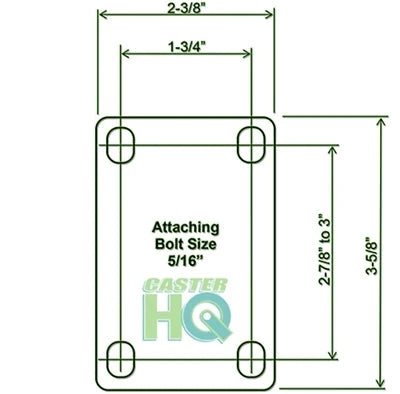

This caster uses a top-plate mount with a 2-3/8" x 3-5/8" plate and a 1-3/4" x 2-7/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/4". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$23.00
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 6-1/4" |
| Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 350 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Polyolefin |
| Frame Material | Zinc Plated Steel |
5" x 1-1/4" Phenolic Swivel Caster – 350 lb | 3-1/8" x 4-1/8" Plate | CasterHQ
5" x 1-1/4" · 350 lbs
$20
5" Hard Rubber Spring Loaded Gate Caster – 350 lb | CasterHQ
5" x 1-1/4" · 350 lbs
$61
5" Solid Poly Wheel Spring Loaded Gate Caster – 350 lb | CasterHQ
5" x 1-1/4" · 350 lbs
$69
View all 5′ x 1-1/4′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 325 lbsLighter duty | 5" × 1-1/4"Polyurethane | Swivel | 6-1/4" | $23.00 | View → | |
| 340 lbsLighter duty | 5" × 1-1/4"Polyurethane | Rigid | 6-1/4" | $18.00 | View → | |
| 350 lbs | 5" × 1-1/4"Polyurethane | Swivel | 6-1/4" | $23.00 | Viewing | |
| 350 lbsSame capacity | 5" × 1-1/4"Cast Iron | Swivel | 6-1/4" | $20.00 | View → | |
| 350 lbsSame capacity | 5" × 1-1/4"Polyurethane | Rigid | 6-1/4" | $18.00 | View → |
