All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.
Wheel = wheel diameter · capacity is per wheel.
























Hamilton v-grooved caster wheels in cast iron, forged steel and stainless steel, 3 to 10 in wheels, rated 450 to 15,000 lb per wheel.





| Tread | Core | Wheel sizes | Rated per wheel | Listed temperature | Where it fits |
|---|---|---|---|---|---|

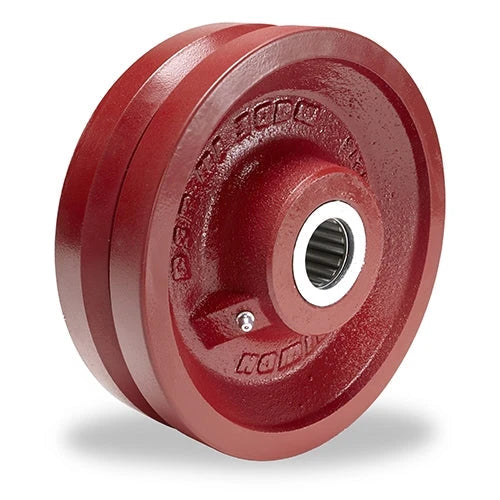

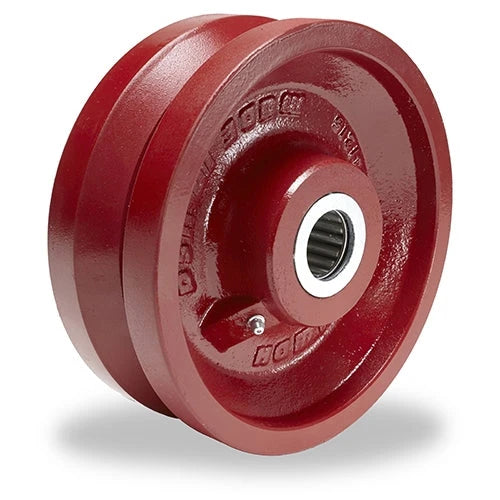

| Cast iron | Stainless steel | 4, 5, 6, 8 and 10 in | 600 to 3,000 lb | -30°F to 320°F | heat, chips and heavy loads on rough floors |

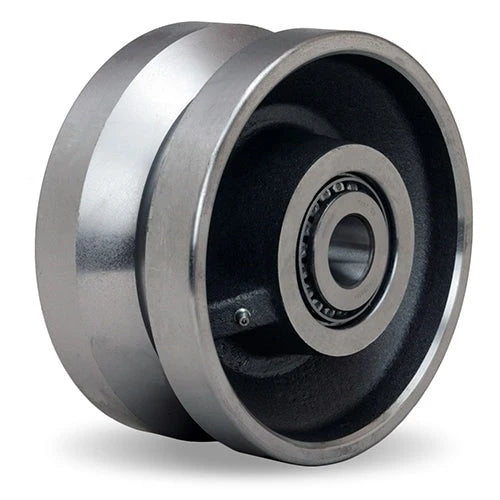

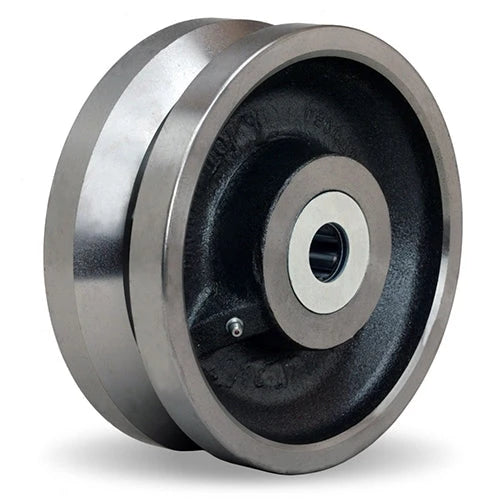

| Forged steel | Steel | 6, 8 and 10 in | 4,500 to 15,000 lb | -30°F to 320°F | very high loads and impact |
| Stainless steel | 3, 4, 5, 6 and 8 in | 450 to 1,500 lb | -40°F to 250°F | washdown and corrosive areas | |
| Steel | Cast iron | 6, 8 and 10 in | 2,400 to 5,440 lb | Up to 750°F | heavy loads and track |
| Phenolic | 4, 6 and 8 in | 450 to 1,250 lb | Up to 250°F | hard and easy rolling on smooth, dry floors | |
| Polyurethane | Stainless steel | 5 and 6 in | 950 lb | -40°F to 180°F | quiet, floor-friendly and long wearing |
Ratings are for single wheels of Hamilton v-grooved caster wheels, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|

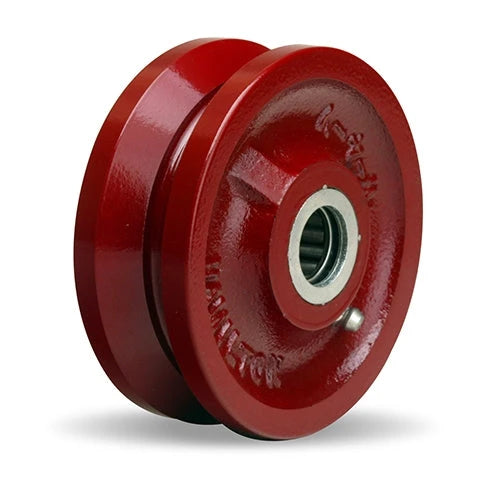

| 4 x 2 in | cast iron and stainless steel | 640 to 850 lb |
| 5 x 2 in | cast iron and stainless steel | 800 to 1,000 lb |
| 6 x 2 in | cast iron, stainless steel and phenolic | 750 to 1,200 lb |
| 6 x 3 in | forged steel and steel | 2,880 to 10,000 lb |
| 8 x 2-1/2 in | cast iron and phenolic | 1,250 to 2,500 lb |
| 8 x 2-3/4 in | cast iron | 2,500 to 2,750 lb |

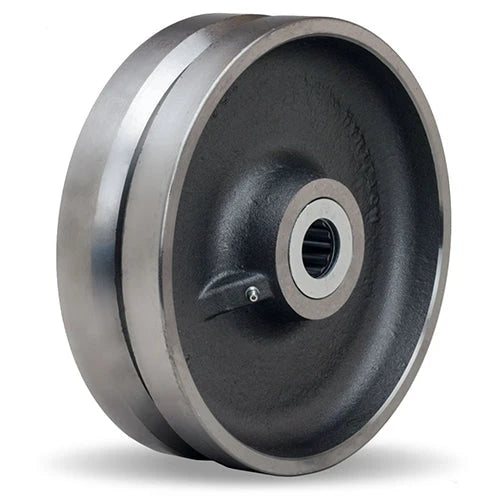

| 8 x 3 in | forged steel, cast iron and steel | 2,400 to 12,000 lb |

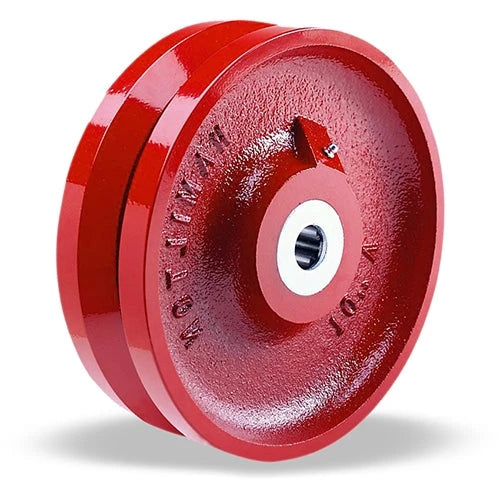

| 10 x 3 in | cast iron, forged steel and steel | 2,400 to 4,500 lb |
Related to Hamilton v-grooved caster wheels: industrial casters, iron and stainless V.
Single Hamilton v-grooved caster wheels are rated 450 to 15,000 lb; most fall between 1,000 and 4,500 lb.
Cast iron leads on Hamilton v-grooved caster wheels, rated 600 to 3,000 lb per wheel. Among Hamilton v-grooved caster wheels, forged steel is next at 4,500 to 15,000 lb.
