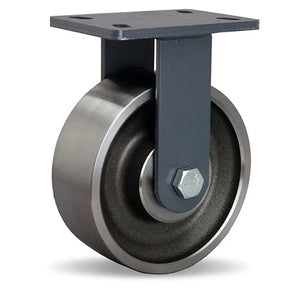

This Hamilton R-ES-83FSB 8" x 3" Forged Steel Rigid Caster – 2400 lb is rated to 2400 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$408.00
| Identification | |
| Brand | Hamilton |
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 3" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 2400 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
8" x 3" Green Polyurethane Steel Rigid Caster – 2,500 lb | CasterHQ
8" x 3" · 2500 lbs
$117
8" x 3" Phenolic Rigid Caster – 2,500 lb | Top Plate 4-1/2" x 6-1/4" | CasterHQ
8" x 3" · 2500 lbs
$150
8" x 3" Red Ductile Steel Rigid Caster – 2,500 lb | CasterHQ
8" x 3" · 2500 lbs
$247
View all 8′ x 3′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 275 lbsLighter duty | 8" × 3"Polyurethane | Swivel | 9-3/4" | $74.00 | View → | |
| 275 lbsLighter duty | 8" × 3" | Swivel | 9-3/4" | $110.00 | View → | |
| 2400 lbs | 8" × 3" | Rigid | — | $408.00 | Viewing | |
| 2500 lbsHeavier duty | 8" × 3"Polyurethane | Rigid | 10-1/8" | $117.00 | View → | |
| 2500 lbsHeavier duty | 8" × 3"Cast Iron | Rigid | 10-1/8" | $150.00 | View → |
