Cast iron mold-on rubber wheels bond a thick rubber tread directly onto a cast iron hub under pressure, creating the strongest rubber wheel construction available. CasterHQ stocks cast iron mold-on rubber wheels from 4" to 12" in diameter, rated up to 1,300 lbs per wheel — the highest load capacity in our rubber wheel lineup. Choose cast iron mold-on when maximum load, floor protection, and vibration dampening are all required on the same application.
Cast iron mold-on rubber wheels at CasterHQ are rated up to 1,300 lbs per wheel — the highest capacity in our rubber wheel lineup. The cast iron hub provides the structural rigidity to carry heavy loads without deflection, while the bonded rubber tread delivers floor protection and vibration absorption. Available diameters range from 4" to 12", with larger diameters offering lower rolling resistance under heavy load.
For loads below 800 lbs, supreme rubber on aluminum or other rubber constructions may be more economical. For loads requiring 1,300 lbs per wheel or more, cast iron mold-on is the only rubber construction that meets the requirement. See our full rubber wheel selection to compare all constructions.
Cast iron mold-on rubber wheels are the standard choice for heavy industrial carts, machine dollies, die carts, tooling stands, and any wheeled equipment where loads exceed 600–800 lbs per wheel and floor marking must be avoided. They are widely used in manufacturing facilities, automotive assembly plants, steel fabrication shops, and warehouses handling heavy raw materials. The rubber tread prevents floor marking and reduces noise even on concrete and steel plate floors.
Common equipment includes heavy-duty casters on welding carts, engine cradles, hydraulic press dollies, and structural steel handling equipment. Cast iron mold-on wheels are also used on overhead crane systems and below-hook lifting devices where rubber contact pads are required. Call 844-439-4335 to confirm the right wheel for your specific application.

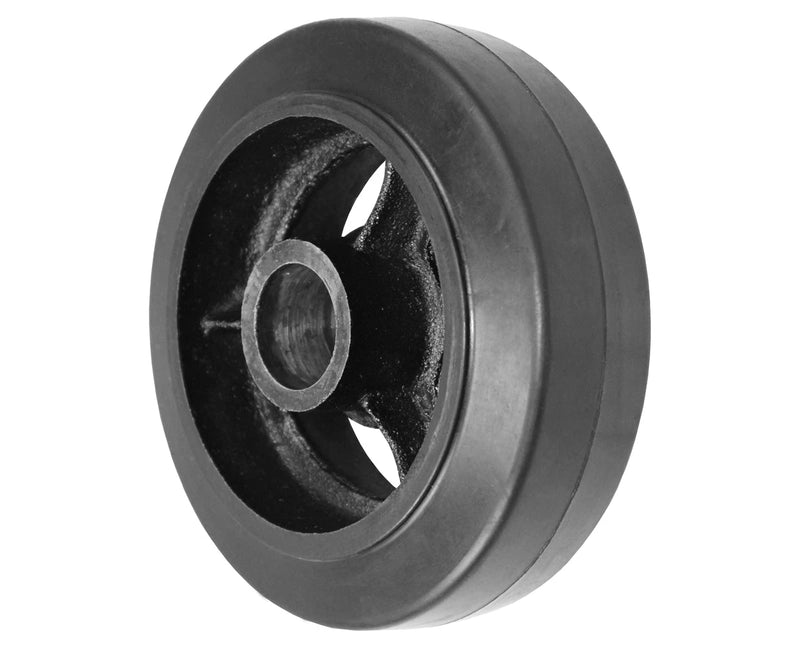

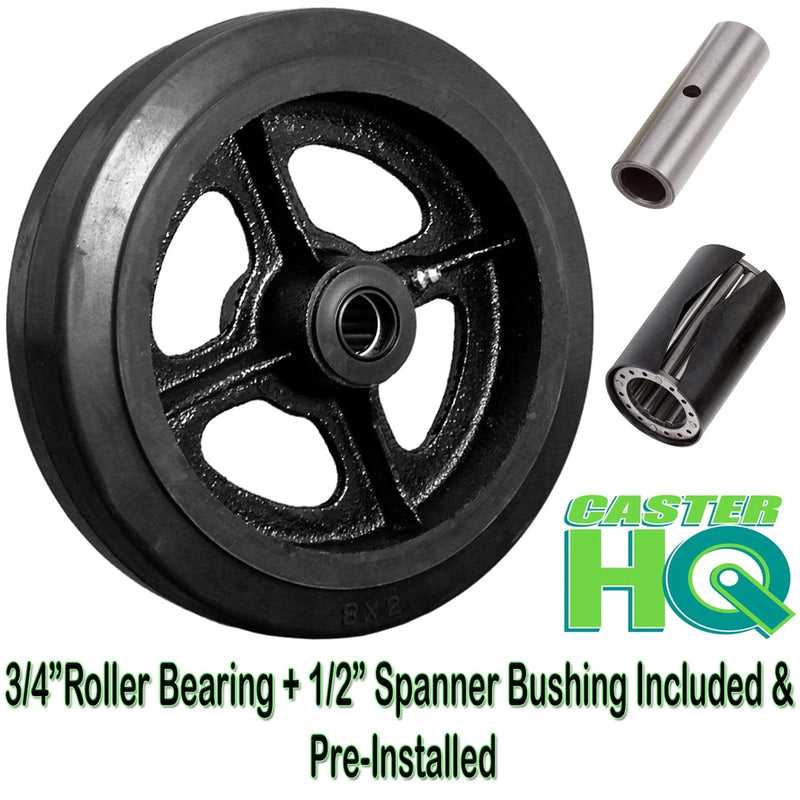

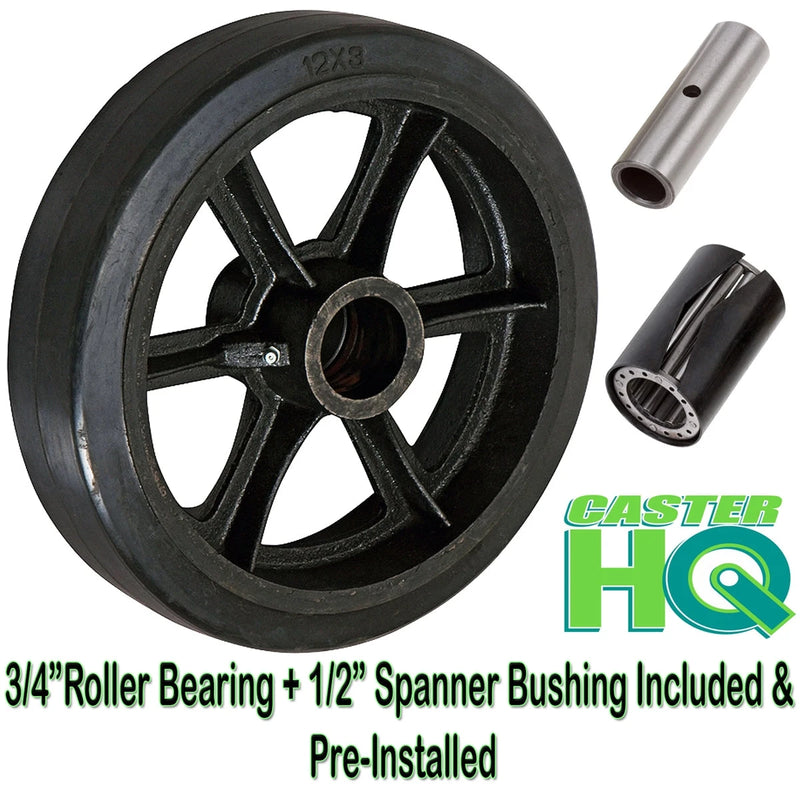

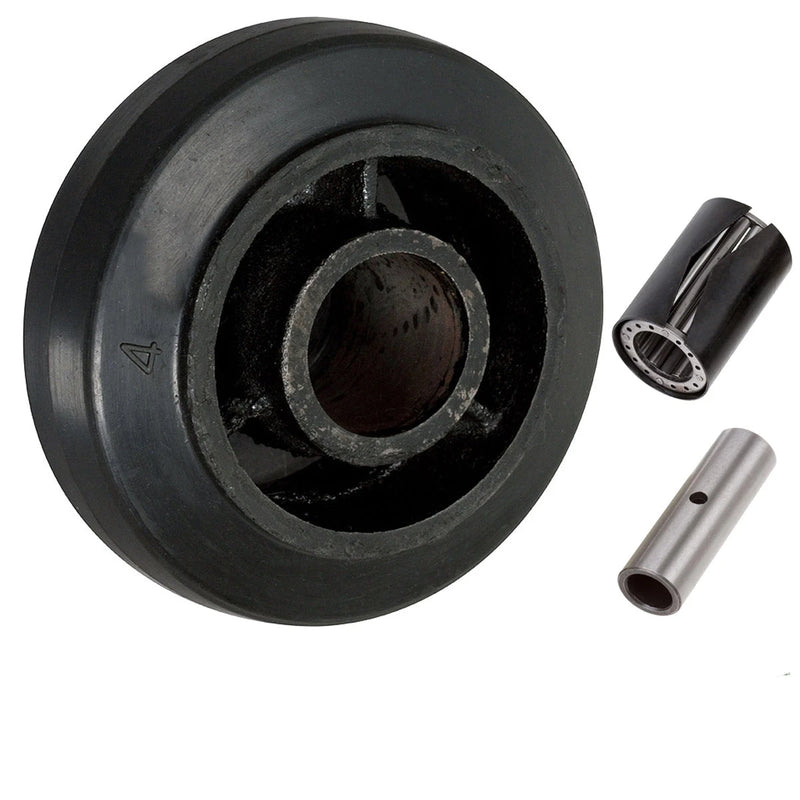

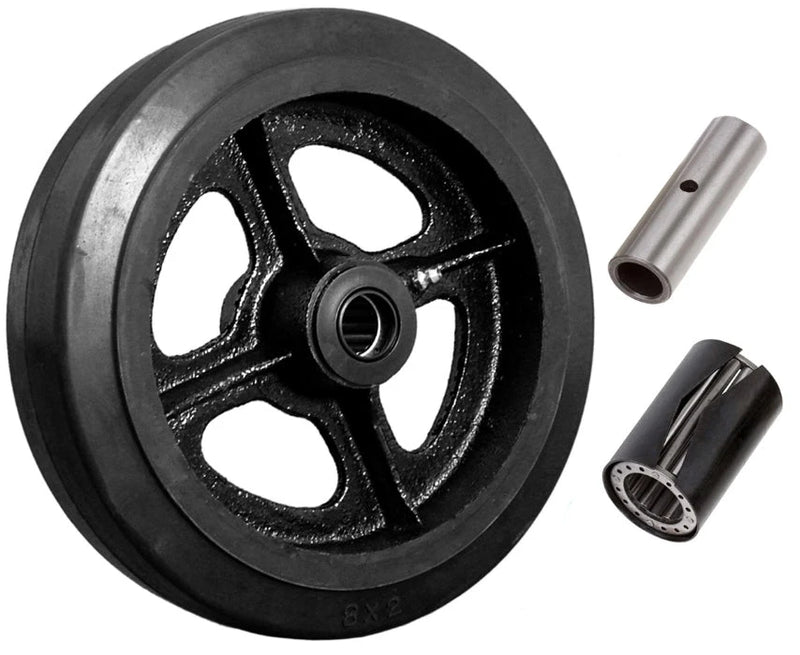

Cast iron mold-on rubber wheels are distinguished by their solid cast iron hub, which provides maximum load capacity and dimensional stability. Unlike rubber-on-aluminum or rubber-on-polyolefin wheels where the hub and tread are mechanically pressed together, mold-on construction bonds the rubber directly to the iron under heat and pressure — creating a permanent chemical bond that cannot separate under load. This makes mold-on construction inherently more durable under shock load and sustained heavy use.
Compare constructions: rubber on aluminum (lighter, up to 800 lbs) · super cushion rubber (extra soft tread, up to 450 lbs) · gray TPR (non-marking, up to 600 lbs). For maximum load with rubber tread, cast iron mold-on is the correct choice.
CasterHQ stocks cast iron mold-on rubber wheels in the most common bore sizes for direct caster replacement: 1/2", 5/8", 3/4", and 1" bore. Larger diameter wheels (10"–12") are also available in 1-1/4" bore for heavy equipment applications. Always match the bore size and axle diameter precisely — a loose bore fit under heavy load will cause premature bearing failure and wheel wobble.
If you are replacing an existing cast iron mold-on rubber wheel, measure the overall diameter, tread width, bore size, and hub length before ordering. Our engineers can cross-reference your OEM part number against our inventory to confirm the correct replacement. Call 844-439-4335 or use the contact form with your measurements.
Yes — the rubber tread on cast iron mold-on wheels is non-marking on finished concrete, epoxy, tile, and hardwood floors. The cast iron hub does not contact the floor surface, so only the rubber tread generates the rolling interface. Black rubber formulations used in most cast iron mold-on wheels do not deposit pigment, but for applications where even trace marking is unacceptable, gray TPR or polyurethane constructions provide additional assurance.
For facilities with strict floor appearance standards, our engineers recommend confirming rubber formulation before ordering. CasterHQ can advise on the best rubber wheel specification for your floor type and load requirement. See also gray TPR wheels and all rubber wheel options.
