Data center casters move racks, UPS systems, battery cabinets, PDUs, and AHUs that weigh from 600 to 7,000+ lb across raised floors, ASHRAE-compliant cold aisles, and ESD-controlled spaces. The right caster for a data center is selected by four specs at once: load per caster (with a 1.5× to 2.0× dynamic safety factor), overall height (to clear rack frame and lift gear), wheel material (polyurethane 70-85D for raised floor protection, cast nylon or forged steel for heavy load banks, conductive Performa for ESD), and the floor system (raised access tile concentrated load rating vs slab).
Same-day RFQ. Texas warehouse. Engineer-reviewed selection. Sales and tech support: 844-439-4335 or request a spec quote.
Server rack caster selection starts with the loaded rack weight, not the empty enclosure. A 42U traditional compute rack ships at 150–350 lb empty and lands populated in the 1,500–2,500 lb range. Modern GPU / AI builds push the same 42U envelope to 3,000–4,000+ lb. NVIDIA's GB200 NVL72 reference rack lists at 3,000 lb (1.36 metric tons), liquid-cooled.
Divide the loaded rack weight by 3 (assume one caster off the floor during turn) then apply a 1.5×–2.0× dynamic safety factor. A populated 42U traditional compute rack therefore needs casters rated 1,000–1,250 lb each minimum; an AI/GPU rack needs 1,500–2,000 lb each. Pair two swivel front + two rigid rear for predictable lead and stop.
| Rack type | Loaded weight | Min caster rating (4-caster cart, 1.5× safety) | Recommended wheel |
|---|---|---|---|
| 42U empty enclosure | 150–350 lb | 200 lb each | Hard rubber dual or nylon |
| 42U mixed compute populated | 1,500–2,500 lb | 950–1,250 lb each | Phenolic or 85A polyurethane |
| 42U AI / GPU populated | 3,000–4,000 lb | 1,500–2,000 lb each | Cast nylon, 95A polyurethane, or forged steel |
| NVIDIA GB200 NVL72 | ~3,000 lb | 1,500 lb each | Cast nylon kingpinless (liquid-cooled compatible) |
Sources: NVIDIA GB200 NVL72 product page (nvidia.com), Enconnex server rack capacity guide, Data Center Knowledge (2024).

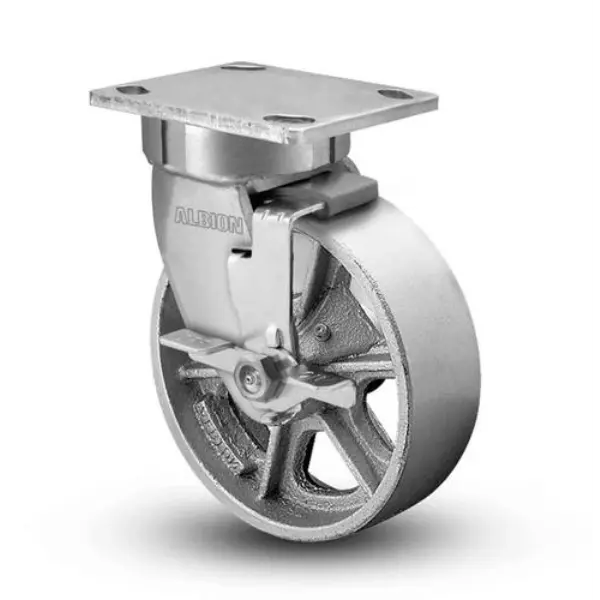

UPS and battery cabinets are caster-served only during install, decommission, and concurrent maintenance. Most stand on leveling feet in service. Select for the highest cabinet weight in the deployment, with side-lock or face-brake to immobilize during commissioning. Cast iron and phenolic wheels handle the dead load without flat-spotting under multi-week stagings.
| UPS / battery model | Unit weight | Min caster rating (4-caster, 1.5× safety) |
|---|---|---|
| Eaton 93PM G2 60 kVA | 796 lb | 300 lb each |
| Eaton 93PM 100 kVA | 1,499 lb | 560 lb each |
| Eaton 93PM 200–250 kVA | 1,786 lb | 670 lb each |
| Eaton 93PM 500 kVA | 2,359 lb | 885 lb each |
| Schneider Galaxy VS battery module | 70 lb (per module) | Use cabinet shipping weight |
Sources: Eaton 93PM 100–500 kVA technical specification sheet (eaton.com), Schneider Electric Galaxy VS spec PDF.

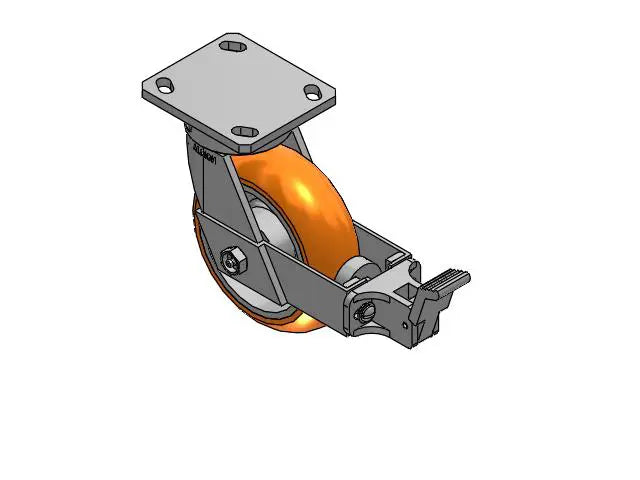

Power distribution units and CRAH / AHU cabinets are the heaviest single mobile items in most data halls. Vertiv Liebert PPC PDUs ship at 5,349 lb (400 kVA), 5,984 lb (500 kVA), 6,140 lb (600 kVA), and 7,261 lb (750 kVA). Cooling units fall in the same envelope. For caster selection, kingpinless construction is non-negotiable above 1,500 lb per wheel — the cantilever load destroys standard kingpin assemblies under repeated yard transport. 85A or 87A polyurethane on aluminum or cast iron carries the load without leaving compound on the slab.
| Equipment class | Shipping weight | Min caster rating (4-caster, 1.5× safety) |
|---|---|---|
| Vertiv Liebert PPC PDU 400 kVA | 5,349 lb | 2,000 lb each |
| Vertiv Liebert PPC PDU 500 kVA | 5,984 lb | 2,250 lb each |
| Vertiv Liebert PPC PDU 750 kVA | 7,261 lb | 2,720 lb each |
| Mid-size CRAH (typical) | 2,500–4,500 lb | 950–1,700 lb each |
Source: Vertiv Liebert PPC 400–750 kVA PDU brochure (vertiv.com).
Liquid-cooled load banks are the heaviest portable equipment in commissioning. Wheel selection needs three things simultaneously: load capacity above 5,000 lb per wheel, chemical resistance to the coolant in service, and sealed precision bearings rated for sustained heat. Cast nylon, forged steel, and 70-durometer polyurethane on cast iron meet all three. Plain polyurethane on aluminum can chemically swell or delaminate in long propylene-glycol exposure.
| Coolant in service | Recommended wheel material | Avoid |
|---|---|---|
| Propylene-glycol / water (most common) | Polyurethane, nylon, glass-filled nylon, cast iron, forged steel | PVC bushings under sustained exposure |
| 3M Novec 7100 / 7000 HFE | Cast iron, forged steel, glass-filled nylon | Soft elastomers, low-grade polyurethane (extractable plasticizers leach) |
| Submer SmartCoolant (synthetic) | Forged steel, cast iron | Phenolic and TPR — vendor recommends material validation |
| GRC ElectroSafe mineral / synthetic blend | Cast iron, polyurethane on steel | None published |
Sources: 3M Novec 7100 product information, Submer SmartCoolant compatibility note (submer.com), Caster Tech wheel-vs-chemical reference.
Raised-access floor tiles in modern data centers are rated for two distinct loads. Concentrated load is the static rating applied through one square inch — Tate ConCore 1250 = 1,250 lb concentrated; ConCore 1500 = 3,000 lb concentrated. Rolling load is the dynamic rating across multiple passes — ConCore 3000 holds 2,700 lb at 10 passes, 2,400 lb at 10,000 passes. Caster wheel diameter and tread width drive the PSI the tile actually sees: a 6"×3" polyurethane wheel under 1,500 lb spreads the load far better than a 3"×1¼" hard rubber wheel at the same load.
For raised-floor service, select wheels with at least 2" tread width and a durometer between 70A and 85A. Soft tread distributes pressure and protects tile finish; harder tread (95A+) concentrates load and can score tile laminates.
| Tile system | Concentrated load (1 sq in) | Rolling load |
|---|---|---|
| Tate ConCore 1250 | 1,250 lb | 800 lb (typical, manufacturer rated) |
| Tate ConCore 1500 | 3,000 lb (point) | 1,500 lb (typical) |
| Tate ConCore 3000 | 3,000 lb | 2,700 lb at 10 passes / 2,400 lb at 10,000 passes |
| Dell PowerMax requirement (reference) | 600 lb per caster | 750 lb rolling minimum |
Sources: Tate ConCore 1250/1500/3000 specification sheets (accessfloorsystems.com), Dell PowerMax raised floor requirements (dell.com).
ANSI/ESD S20.20-2021 defines two wheel bands by surface resistance: conductive ≤ 1 × 106 Ω, dissipative > 1 × 106 and < 1 × 109 Ω. The dissipative band is the default for most data halls because it bleeds static to ground without the abrupt discharge spike of conductive material. Effectiveness is system-level: the wheel must be part of a grounded path that includes the floor and the equipment frame. ANSI/ESD STM7.1 (the test method) measures this resistance.
| ANSI/ESD S20.20 band | Surface resistance | Best use |
|---|---|---|
| Conductive | ≤ 1 × 106 Ω | EOS-critical processes (PCB manufacturing, semiconductor handling) |
| Dissipative | > 1 × 106 Ω and < 1 × 109 Ω | Server racks, NOC equipment, sensitive cabling spaces |
| Antistatic / insulative | > 1 × 109 Ω | Not S20.20 compliant for ESD-controlled areas |
Sources: ANSI/ESD S20.20-2021 (esda.org), ANSI/ESD STM7.1-2020 (ansi.org), StaticWorx ESD flooring technical reference.
Rolling noise is wheel-material driven. Soft thermoplastic rubber (TPR) and 70-durometer polyurethane produce the lowest measured rolling noise; hard wheels (phenolic, steel, hard plastic) produce the loudest. Industry-reported figures put rubber at 55–62 dB and polyurethane at 65–72 dB; controlled 5 mph data across all materials is not published in public sources. For office-adjacent NOC carts and 24/7 operator-staffed server closets, TPR with precision sealed bearings is the standard.
Sources: Linco "Whispering Wheels" reference, Caster Guy noise reduction guide.
The number procurement teams miss most often is the dynamic safety factor. A 2,500 lb cabinet on four 700 lb casters meets the static math (2,800 lb total). It fails the first time a fork-lift operator yanks one caster off the floor during a 90° turn — the remaining three see 833 lb each, instantly over rating.
Always derate by 25–30% for dynamic conditions on data center transport. For Tier III / Tier IV concurrent-maintenance moves where the equipment can't be parked mid-aisle for adjustment, derate by 50% and use kingpinless construction.
