Up to 350 lbs
Up to 7,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
Shock absorbing
Outdoor / rough terrain
View All Specialty Casters
Browse all specialty caster types
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Filter & Sort

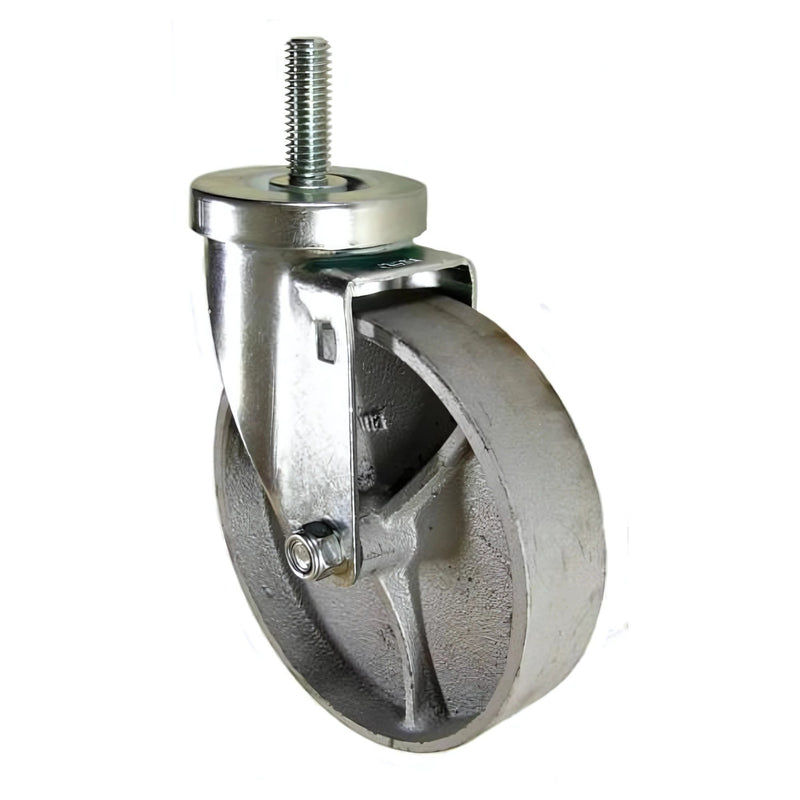

Direct-fit stem casters intended for threaded posts, legs, and mounts where you want maximum durability, vintage/industrial aesthetics, and a hard wheel that rolls efficiently on smooth concrete and hard surfaces.
1/2"-13 thread × 1-1/2" usable length (verify clearance + nut/washer stack)
Steel wheel (hard tread) for low rolling resistance on clean, smooth floors
Sealed concrete, epoxy, smooth shop floors, warehouse slabs (clean paths)
Wood floors/finished tile (risk of marking), debris-heavy routes, rough concrete
Procurement note: confirm (1) thread pitch, (2) usable threaded length, (3) stem shoulder style, and (4) swivel clearance radius before ordering fleet quantities.
