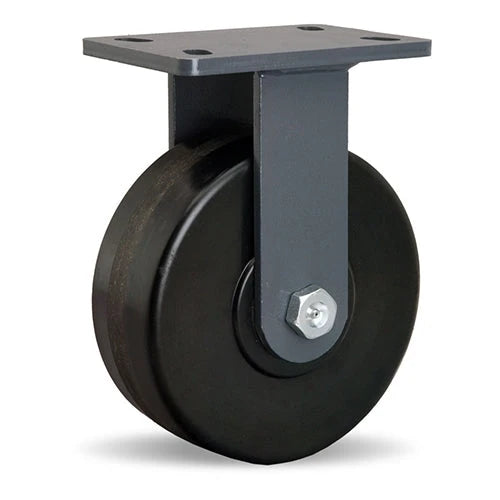

This Hamilton R-ES-83PH 8" x 3" Plastex Phenolic Rigid Caster – 2400 lb is rated to 2400 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 3" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 5" x 7" plate and a 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 10-1/4". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$221.00
| Identification | |
|---|---|
| Part Number / SKU | R-ES-83PH |
| Replacement Wheel Part No | W-830-P-1 |
| Core | |
| Load Capacity | 2400 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 10-1/4" |
| Rig Type | Rigid |
| Brake | No Brake |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 5" x 7" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 3-3/8" x 5-1/4" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Phenolic |
| Wheel Core Material | Phenolic |
| Wheel Color | Black |
| Bearing Type | Straight Roller Bearing |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 250°F |
| Unit Weight | 18 lbs |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2400 lbs | 8" × 3"Phenolic | Rigid | 10-1/4" | $221.00 | Viewing | |
| 2500 lbsHeavier duty | 8" × 3"Polyurethane | Rigid | 10-1/8" | $117.00 | View → | |
| 2500 lbsHeavier duty | 8" × 3"Phenolic | Rigid | 10-1/8" | $150.00 | View → | |
| 2500 lbsHeavier duty | 8" × 3"Ductile Iron | Rigid | 10-1/8" | $247.00 | View → | |
| 2500 lbsHeavier duty | 8" × 3"Polyurethane | Rigid | 10-1/8" | $156.00 | View → |
