Stainless - Capacity up to 3,200 lbs Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

This collection holds Stainless casters with UltraGlide polyurethane, Nylast cast nylon and DuraGlide polyurethane wheels, built for heavy equipment, dies, molds, and plant carts that move very heavy loads. Casters in this collection range from 750 to 3,200 lb per caster. Wheels in this category range from 2 up to 12 inches in diameter with 2 to 3 in tread widths. The collection includes swivel and rigid models. Dual wheel casters split the load over two wheels and swivel with less effort under heavy loads. Triple wheel casters spread the load over three wheels and swivel with less effort under heavy loads. UltraGlide polyurethane wheels are made to start and roll with low push effort, which helps on long pushes. Nylast cast nylon wheels roll easily, resist water and many chemicals, and are hard, so they are loud on rough floors. Choose swivel casters when the cart must turn in place and rigid casters for straight travel. Polyurethane aisle: polyurethane casters. Wheel hub: replacement wheels.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

Hamilton stainless casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits

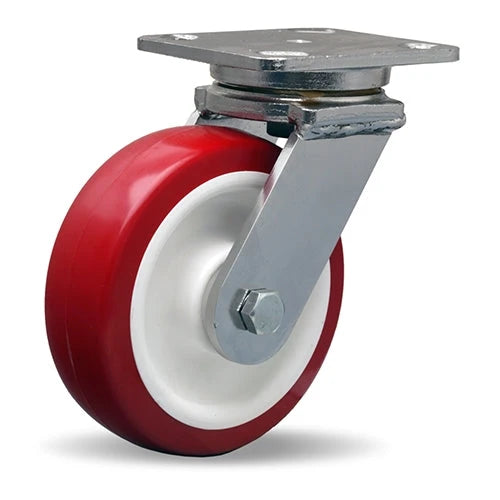

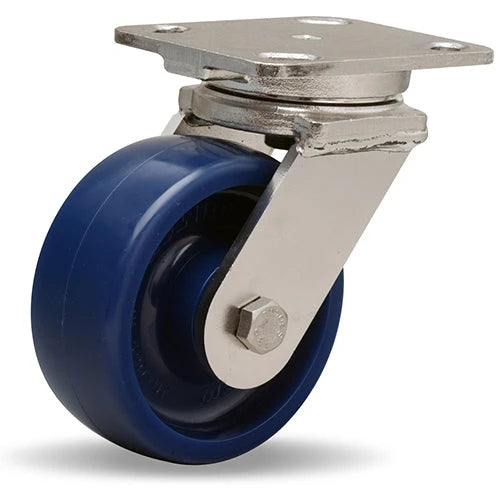

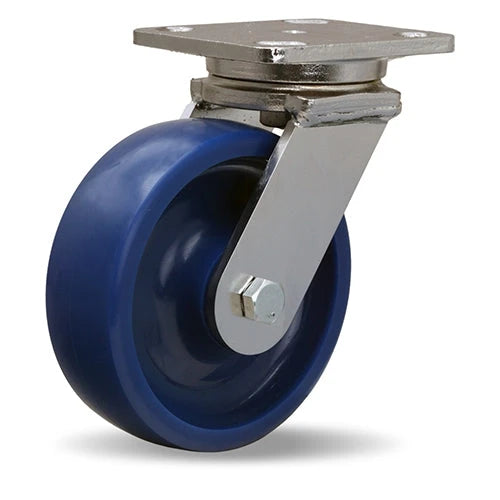

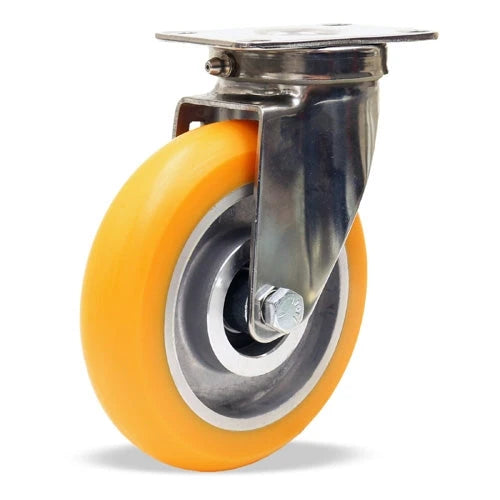

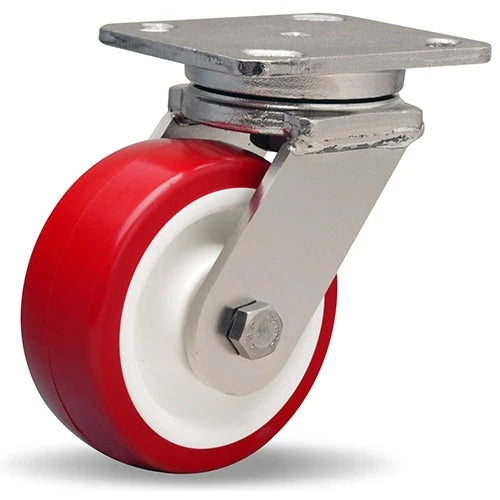

Polyurethane	Aluminum and Polyolefin	3-1/2 to 12 in	500 to 3,200 lb	-50°F to 200°F	quiet, floor-friendly and long wearing

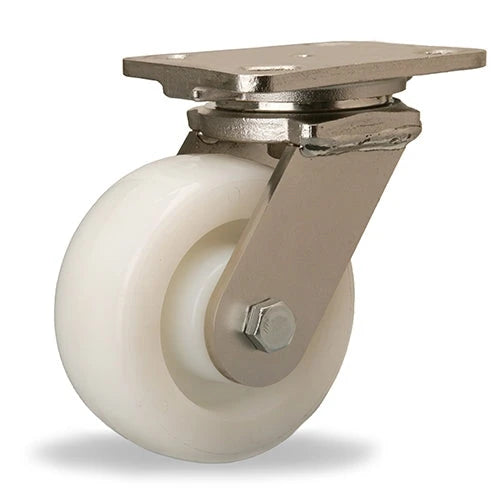

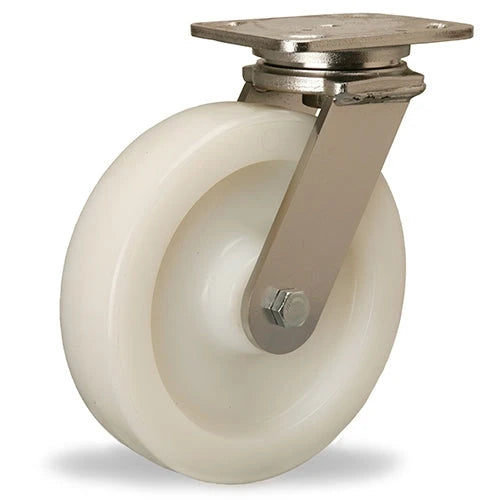

Nylon		3-1/2 to 12 in	750 to 3,200 lb	-30°F to 220°F	low rolling effort on smooth floors, handles wet areas

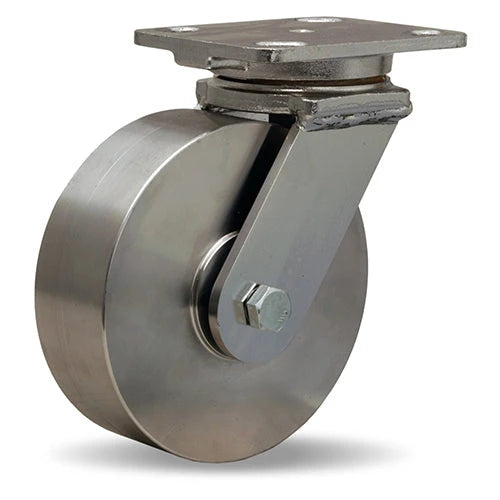

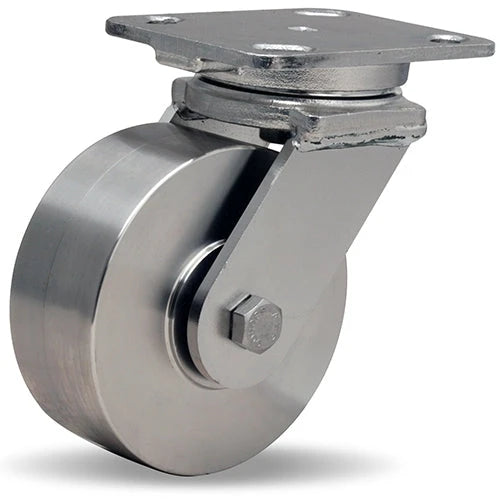

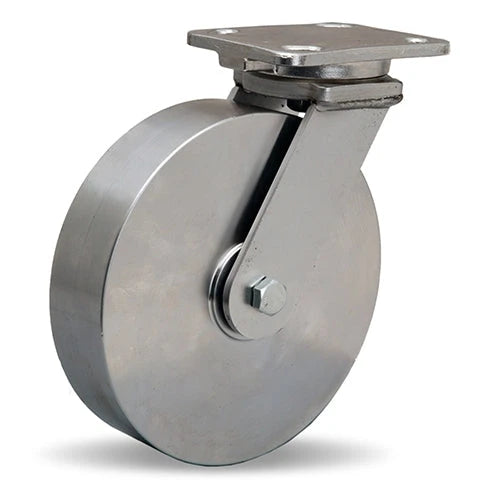

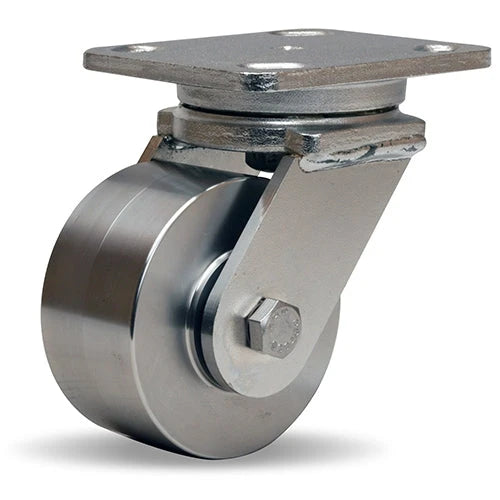

Stainless steel		3, 4, 5, 6 and 8 in	750 to 3,200 lb	-40°F to 180°F	washdown and corrosive areas

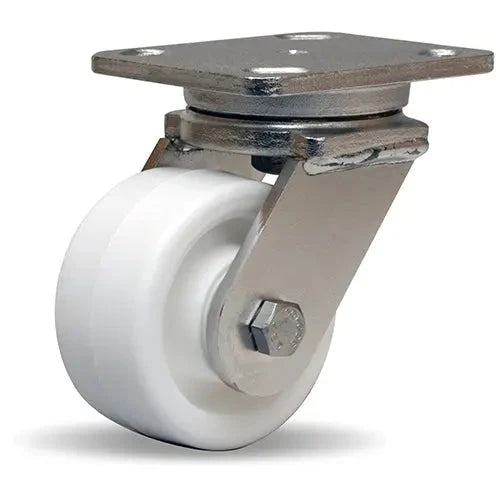

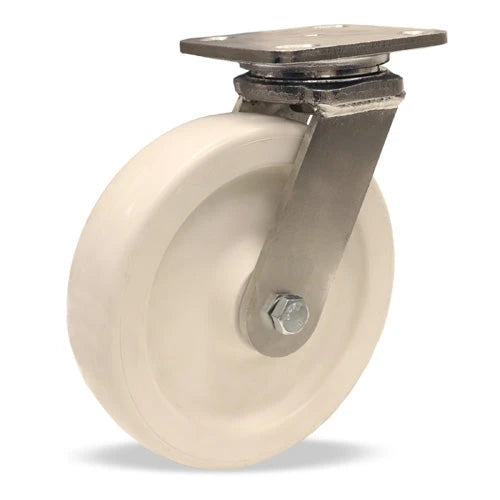

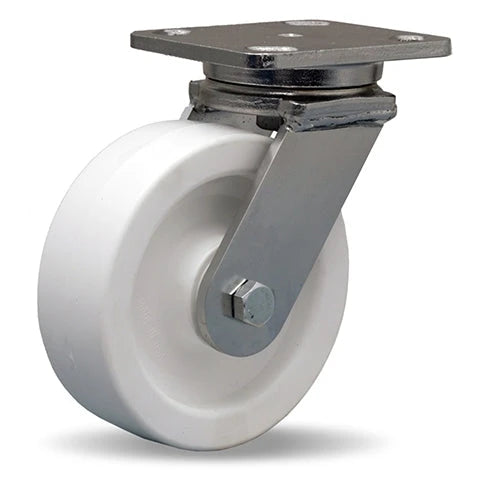

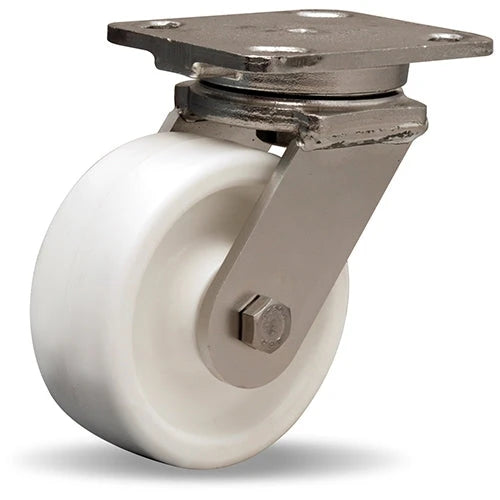

Polyolefin		4, 5, 6 and 8 in	550 to 900 lb	-20°F to 200°F	wet and chemical areas, light to medium loads

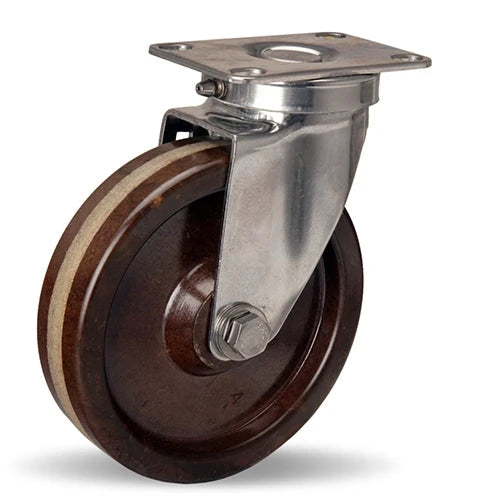

Phenolic		4, 6, 8, 10 and 12 in	750 to 3,200 lb	Up to 250°F	hard and easy rolling on smooth, dry floors
Rubber	Polyolefin	4 and 5 in	450 to 520 lb	-40°F to 180°F	cushioned and quiet on finished floors

Ratings are for single casters of Hamilton stainless casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated
3-1/2 x 2 in	polyurethane and nylon	600 to 750 lb
4 x 2 in	polyurethane, nylon and polyolefin	300 to 3,200 lb
5 x 2 in	polyurethane, nylon and polyolefin	520 to 1,600 lb
6 x 2 in	polyurethane, nylon and stainless steel	750 to 3,200 lb
6 x 3 in	polyurethane, nylon and stainless steel	2,500 to 3,200 lb
8 x 2 in	polyurethane, nylon and stainless steel	900 to 3,200 lb
8 x 3 in	polyurethane, stainless steel and nylon	3,200 lb
10 x 3 in	polyurethane, nylon and phenolic	3,200 lb

Choosing Hamilton stainless casters

Load: plan on three casters carrying a four-caster cart [S2]; at 1,600 lb each, a common rating here, that is about 4,800 lb, and the 3,200 lb top rating covers about 9,600 lb.
Mount: most Hamilton stainless casters use a 2-1/2 x 3-5/8 in top plate; 4 x 5 in and 4 x 4-1/2 in plates are listed too; match the bolt holes on your frame to the plate before ordering.
Floor: on Hamilton stainless casters, polyurethane and rubber are kinder to tile and finished floors; nylon, stainless steel, polyolefin and phenolic roll easier under heavy loads on smooth concrete.
Rig: swivel and rigid Hamilton stainless casters are listed.

Related to Hamilton stainless casters: industrial casters, Hamilton SS champion CHS casters and Hamilton stainless workhorse WHS.

Hamilton stainless casters questions

How much weight can Hamilton stainless casters carry?

Single Hamilton stainless casters are rated 450 to 3,200 lb; most fall between 750 and 1,600 lb.

What top plate do Hamilton stainless casters use?

Most Hamilton stainless casters use 2-1/2 x 3-5/8 in. Other plates on Hamilton stainless casters: 4 x 5 in and 4 x 4-1/2 in.

What wheel material is most common on Hamilton stainless casters?

Polyurethane leads on Hamilton stainless casters, rated 500 to 3,200 lb per caster. Among Hamilton stainless casters, nylon is next at 750 to 3,200 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
