The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size. When replacing existing casters, select the closest plate size and verify bolt-hole compatibility. BHP = Bolt Hole Pattern, shown under each plate.

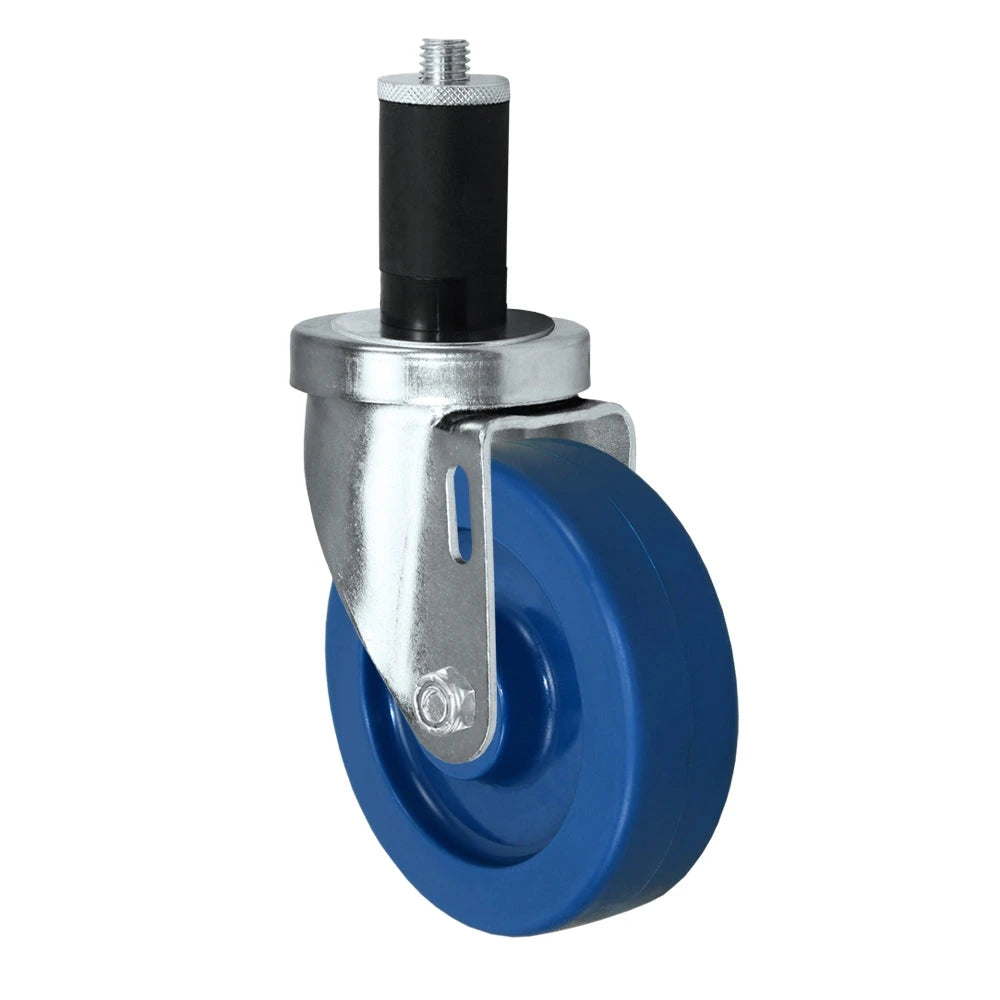

Polyurethane expanding adapter casters fit inside hollow tubular legs and EXPAND with a hex-key tightener to grip the inside diameter of the tube. Used on institutional furniture, OEM equipment with tubular bases, dental and medical carts, and any frame with hollow square or round leg construction. CasterHQ stocks 78 polyurethane expanding adapter configurations rated 75 to 500 lb per caster.
ISO 9001:2015 Facility
·
50,000+ Businesses Served
·
Application Engineers On Staff
·
Net 30 Terms Available
Configurations
78
Polyurethane expanding adapter styles
Load Range
75–500 lb
Per expanding caster
Tube Sizes
6+
3/4″ to 1-1/2″ ID standard
Ships Same Day
94%
In-stock orders by 3pm CST
JW
Reviewed by Jordan Wilson · Industrial Caster Specialist
Content last verified April 2026 · 15+ years caster engineering · CasterHQ Engineering Team
Insert the adapter into the hollow tube leg. Turn the hex-key tightener at the bottom — this expands a rubber sleeve outward against the tube ID, gripping it. To remove, reverse the hex-key. No drilling, no welding, no permanent modification to the equipment frame.
02What tube ID sizes do expanding adapters fit?
Standard sizes: 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2" inside diameter. The adapter must match tube ID closely — oversized adapter won't insert; undersized won't grip when expanded. Measure ID with calipers, not OD; tube wall thickness varies between manufacturers.
03How much load can an expanding adapter hold?
Up to 500 lb per caster on the largest 1-1/2" adapters. Smaller 3/4" adapters cap at 75–125 lb. Load capacity is limited by the friction grip between the rubber sleeve and the tube wall — not the wheel itself. For loads above 500 lb, use threaded stem mounted to a weld nut on the tube cap.
Full Specifications Overview+
Tube ID sizes: 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-1/2″ standard
Load range: 75 lb (small) to 500 lb (large)
Wheel diameters: 2″ through 5″
Polyurethane durometer: 75A to 85A Shore A
Adapter sleeve: rubber expansion sleeve with hex-key tightener
Finish: zinc-plated steel adapter; chrome stem; stainless available
Engineer Tips — Expanding Adapter Selection+
Measure tube ID with calipers, not OD. Wall thickness varies between manufacturers — OD doesn't tell you ID.
Insert dry — no thread-locker or grease. Lubricants reduce friction grip and cause the adapter to spin in the tube.
Don't over-tighten. Hex-key should expand the sleeve to firm contact, not crack the tube. Stop when you feel resistance.
For square tubing, use square-shouldered adapters. Round adapters in square tubes can rotate under load.
Above 500 lb, switch to threaded stem with weld nut. Friction grip is the load limit, not the wheel.
Frequently Asked Questions+
Can I reuse an expanding adapter? Yes — install/remove cycle is non-destructive. The sleeve compresses and re-expands.
Will it work on plastic tubular legs? Yes, with reduced load (typically derate 50%). Plastic tubes flex more than steel — friction grip is weaker.
How does it compare to threaded stem? Faster install (no welding required), reversible. But lower load capacity and less secure long-term in vibration applications.
Stainless expanding adapter? Yes, full 304 stainless for medical, food service, marine.
Custom tube sizes? Yes, on minimums of 100+ units with 3-4 week lead.
Divide total cart weight by 3 (not 4) because uneven floors cause one caster to temporarily lift, redistributing load to the remaining three. Multiply by 1.25 for dynamic impact (rolling onto floor seams, dock plates, thresholds). Example: a 1,500 lb cart needs casters rated ≥ 625 lb each (1,500 ÷ 3 × 1.25).
