Harbor Freight Caster Replacement: Upgrade Guide for (2026)

Harbor Freight casters are consumer-grade components designed to hit a price point, not a duty cycle. They work fine for light home use. Once you roll them onto a concrete shop floor, load them past 60-70% of their stamped rating, or use them daily, they fail fast. The fix is a direct-fit industrial replacement matched to your mounting style, wheel diameter, and actual working load.

CasterHQ has supplied casters and wheels to warehouses, manufacturers, and automation integrators since 2015 and stocks over 25,000 SKUs. We field Harbor Freight replacement requests every week, from guys upgrading a $199 tool cart to shops re-wheeling an entire row of US General roll cabs. Here is what actually works.

Why Harbor Freight Casters Fail Early #

Harbor Freight casters fail because they use thin stamped steel yokes, unsealed bearings, and low-durometer wheels sized for the box, not for real load. The spec sheet prints a capacity number, but that number is a static, laboratory-condition max. In daily shop use, three things break them.

• Thin stamped yokes. The swivel head on a factory HF caster is typically 14-16 gauge stamped steel. Industrial-grade equivalents run 7-11 gauge with a forged or drop-forged yoke. Under side-load (hitting a seam, pivoting under weight) the thin yoke bends, the king pin loosens, and the caster wobbles.
• Unsealed or semi-shielded bearings. Most HF casters ship with plain bore or semi-shielded raceways. Shop debris, coolant, and WD-40 destroy them inside a year. Industrial casters use sealed precision ball bearings or tapered bearings rated for continuous duty.
• Soft rubber or low-durometer poly wheels. A cheap gray rubber wheel flat-spots within weeks of sitting loaded. It also rolls hard and leaves black marks. Real industrial polyurethane (90-95A durometer) rolls easier, leaves no marks, and holds its shape under continuous load.

How to Identify What You Have #

Before you order a replacement, measure three things: mounting style, overall height, and wheel diameter. Harbor Freight casters are not stamped with OEM part numbers, so the swap is always a dimensional match, not a part-number cross.

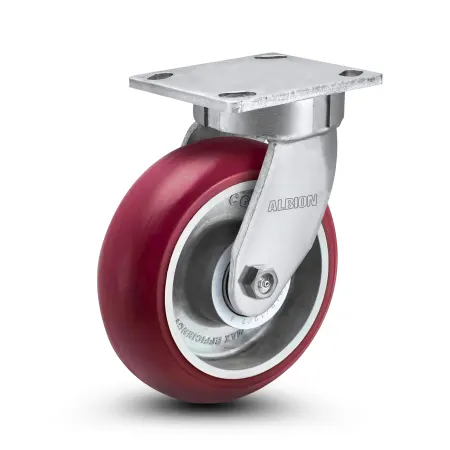

• Mounting style. Flip the item over. You will see either a square/rectangular top plate with 4 bolt holes, or a round threaded stem screwing up into a nut, or an expanding rubber stem pressed into a hollow tube leg.
• Plate dimensions. For plate casters, measure plate length, plate width, bolt-hole center-to-center both ways, and bolt-hole diameter. Common HF plates: 2-5/8" x 3-3/4", 3-1/8" x 4-1/8", and 4" x 4-1/2".

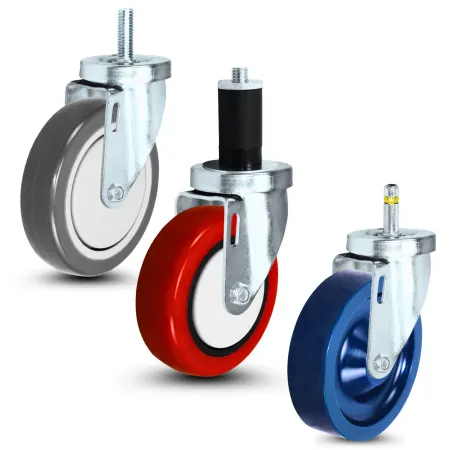

• Stem size and length. For threaded stem, measure the stem diameter (most common: 3/8"-16 or 1/2"-13), and the length from the top of the swivel section to the end of the threads. For expanding rubber stem, measure the hollow tube's inner diameter and note the stem diameter when collapsed.
• Wheel diameter and tread width. Measure the wheel OD and the tread (the flat contact surface width). 3", 4", and 5" are the HF standards.
• Overall height. Total height from the floor to the top of the mount surface. Matters when you want the cart to sit at the same height after the swap.

Matching a Direct-Fit Industrial Replacement #

A direct-fit upgrade means same mounting, same or taller wheel diameter, and 2-3x the rated load. Do not try to mix stem sizes or plate patterns. If you need to change the mount, change all four casters together.

• Match the mount. 3/8"-16 stem stays 3/8"-16. A 2-5/8" x 3-3/4" plate stays 2-5/8" x 3-3/4". Anything else requires drilling or a mounting adapter.
• Step up the wheel by one size if clearance allows. Going from a 3" to a 4" wheel drops rolling resistance roughly 25-30% and handles floor seams without shocking the bearing. Confirm overall height fits under the cart shelf or under the engine stand arms.
• Pick the right tread. Polyurethane on steel core is the default for shop floors. Phenolic is the pick for oily or hot environments. Thermoplastic rubber is the pick for quiet rolling on sealed concrete. Hard rubber is fine for light indoor use only.
• Double the rating. If the HF caster is rated 150 lb, target a 300-350 lb replacement. The rated capacity is per-caster, static. Real duty rating is roughly 40-60% of the plate number in continuous shop use.

Recommended Upgrades by Application #

Pick your upgrade by what the cart does for a living. The same 4" wheel rolls very differently under a tool cart full of sockets versus a welder on a shop dolly. Below are the spec patterns we ship most often for each common HF product.

US General / Yukon Tool Cart or Roll Cab

• What it has: 5" TPR swivel casters, 2 locking, 3/8" bolt plate, ~300 lb stamped.
• What we recommend: 5" polyurethane on steel core, 900 lb per caster, 2 total lock brakes, matched plate. See heavy-duty casters.
• Why: Loaded roll cabs routinely run 600-900 lb. The stock TPR wheels flat-spot under that load sitting overnight. Poly on steel holds round and rolls half as hard.

Haul-Master / Greatland Workbench

• What it has: 3" plastic swivel, 3/8"-16 threaded stem, two with toe-brake.
• What we recommend: 3" or 4" polyurethane swivel, 3/8"-16 stem, 300-500 lb rating, zinc-plated finish. See threaded stem casters.
• Why: Plastic wheels crack when the bench gets loaded with a bench vise plus stock. Poly absorbs shock and tracks straight across the shop.

Shop Dolly, Engine Stand, or Welder Cart

• What it has: 3" or 4" steel or phenolic, fixed or swivel plate, often mismatched.
• What we recommend: 4" phenolic or cast iron rigid on two corners, 4" polyurethane swivel on the front two. 700-1,000 lb rated. Plate-mount only, no stem.
• Why: Engine blocks and welders concentrate load on one or two casters when you tilt or pivot. Stems are the weak point, plates distribute the load into the frame.

Red Harbor Freight Furniture Dolly (item #38970)

• What it has: 3" TPR swivel, all 4, 2-5/8" x 3-3/4" plate, ~275 lb per caster rated.
• What we recommend: 3" soft-tread polyurethane (80-85A) or thermoplastic rubber swivel, same 2-5/8" x 3-3/4" plate, 210-300 lb per caster. See shopping cart and utility wheels.
• Why: This dolly is used on hardwood, tile, and finished concrete. Soft poly rolls quieter and protects flooring, while still holding round. Hard TPR tracks loud and marks flooring.

Installation: Plate vs Stem Swap #

Plate swaps are five minutes with a socket wrench. Stem swaps are trickier because the thread size or the expanding sleeve has to match exactly. Nothing here requires welding or drilling if you matched the spec correctly.

Plate Caster Swap

1. Tip the cart on its side, support it so it does not fall.
2. Unbolt the 4 existing bolts with a socket (usually 9/16" for 3/8" bolts, 3/4" for 1/2" bolts).
3. Position the new caster, align the plate holes.
4. Thread the bolts through the deck, then the plate, then add flat washer, lock washer, nut. Torque to 25-30 ft-lb for 3/8" hardware.
5. Repeat on all four corners. Total time: 15-20 minutes.

Threaded Stem Swap

1. Tip the cart. With a wrench, unscrew the stem from the mounting nut welded to the leg.
2. Confirm stem thread and length match the replacement. 3/8"-16 and 1/2"-13 are NOT interchangeable.
3. Thread the new caster up into the leg nut until snug, then torque to 20-25 ft-lb.
4. Confirm the swivel spins freely after torquing. If it is tight, back off 1/4 turn.

Expanding Rubber Stem Swap

1. Loosen the top nut on the existing stem until the rubber sleeve relaxes.
2. Pull the caster straight out of the tube. It should come out cleanly once the rubber sleeve contracts.
3. Measure the tube ID precisely with calipers.
4. Insert the new expanding stem with sleeve collapsed, tighten the top nut until the sleeve fully grips the tube wall.

Load Capacity Math (The Part People Get Wrong) #

Divide your gross rolling weight by 3, not by 4, when selecting per-caster capacity. A four-caster cart on uneven flooring puts full weight on three casters at any given moment. Sizing by a 4-corner split is how stems snap.

• Formula: per-caster rating >= (cart tare + max load) / 3.
• Example: Roll cab tare 180 lb + tool load 520 lb = 700 lb gross. 700 / 3 = 234 lb per-caster minimum. Size for 300-400 lb per-caster to build margin.
• Add a safety factor of 1.5x for shock loading (dropping the cart off a ramp, rolling over a seam at speed, loaded pivot turns).
• Derate for environment. Continuous duty, hot shop (above 110F), outdoor, or wet = multiply required capacity by 1.3-1.5x.
