Industrial shopping cart wheels and replacement casters for retail stores, grocery chains, home improvement centers, and warehouse cart fleets. P&H 5-inch universal polyurethane and TPR rubber with the standard 1/2-13 x 7/8-inch threaded stem and 5/16-inch bearing. Stocked in 4-pack, 50-pack, and 500-pack bulk fleet quantities at our Mansfield, TX facility.
A side-by-side breakdown of every cart wheel and caster configuration we stock. Compare wheel material, capacity, stem and bearing spec, and best-fit application before you order.
| Configuration | Wheel Material | Capacity | Stem / Bearing | Best For |
|---|---|---|---|---|

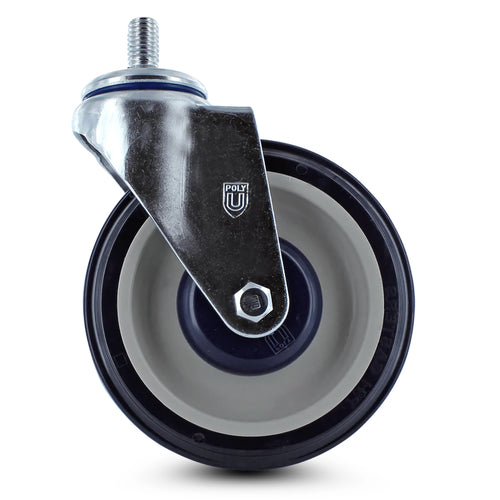

| Complete Swivel Caster | Polyurethane (P&H) | 350 lb dyn. | 1/2-13 x 7/8" stem · 5/16" Quad-X bearing | Retail store cart fleets (Walmart, Target, Home Depot) |

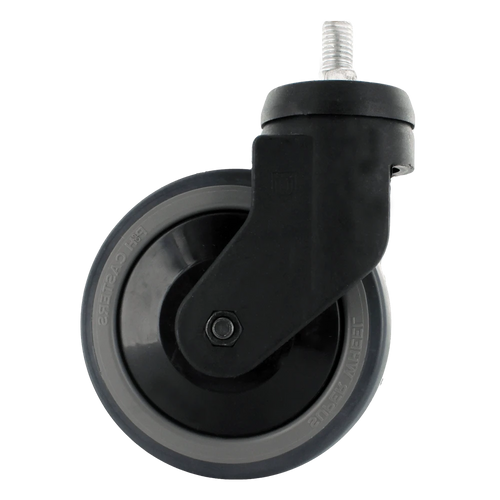

| Complete Swivel Caster | TPR Rubber | 200 lb dyn. | 1/2-13 x 7/8" stem · 5/16" Quad-X bearing | Soft floors, grocery, hospital carts |
| Complete Swivel Caster | Soft Blue Rubber | 200 lb dyn. | 1/2-13 x 7/8" stem · 5/16" Quad-X bearing | Quiet rolling, residential, libraries |

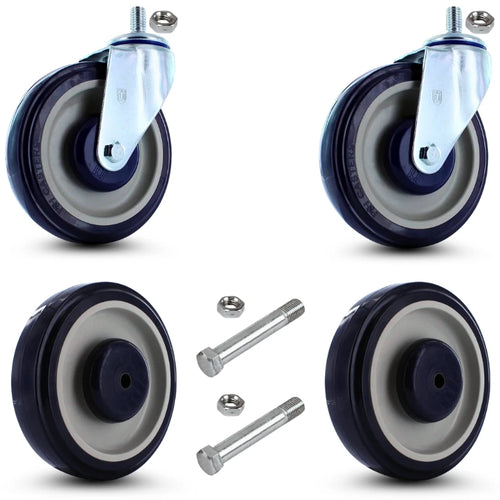

| Premium 4-Piece Cart Kit | Polyurethane | 350 lb per wheel | 2 stems + 2 wheels + axles + lock nuts | One-cart complete rebuild |

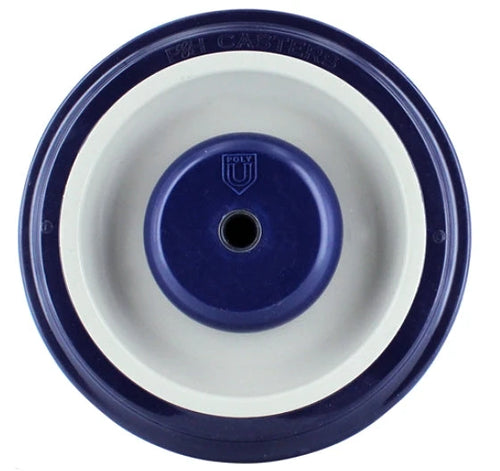

| Wheel Only | Polyurethane (WC2054LD) | 350 lb dyn. | 5/16" Dual Sealed Precision Bearing | Drop-in replacement, keep existing frame |
| Wheel Only | Soft Rubber (Blue on Gray) | 200 lb dyn. | 5/16" Quad-X Friction Bearing | Quiet rolling, soft-floor retail |

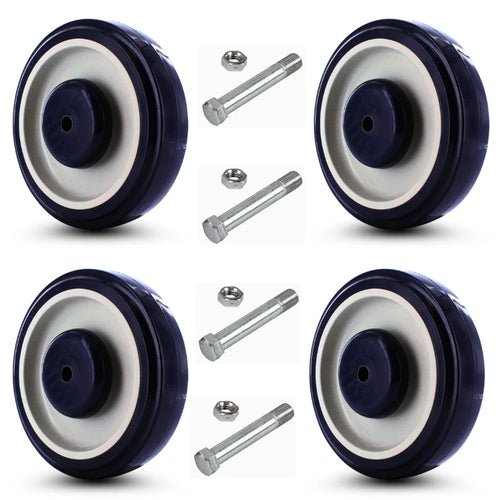

| Bulk 4-Pack Wheels | Polyurethane | 350 lb each | 5/16" Bearing · w/ axles | Single cart replacement set (4 wheels) |

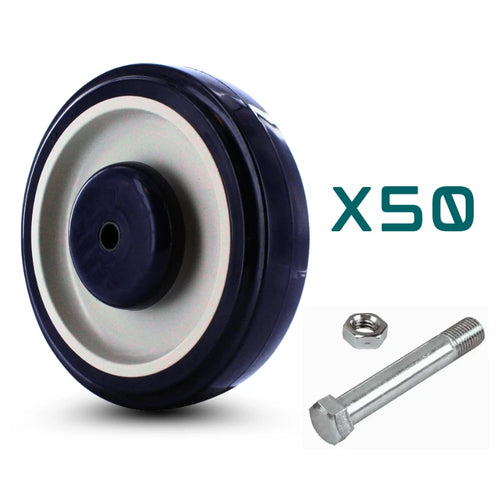

| Bulk 50-Pack Wheels | Polyurethane | 350 lb each | 5/16" Bearing · w/ axles | Small fleet (12 carts · reorder buffer) |

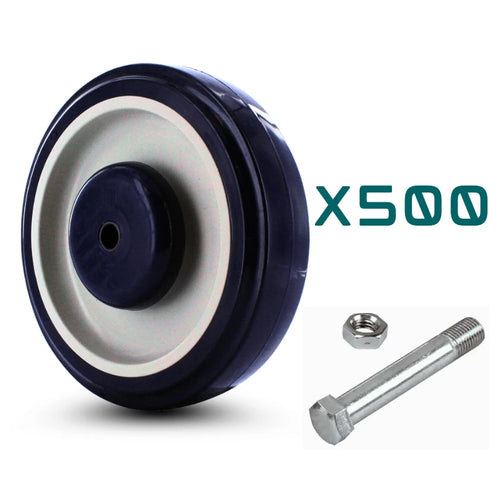

| Bulk 100/250/500-Pack | Polyurethane · Polyolefin | 350 lb each | 5/16" Bearing · w/ axles | Medium to enterprise fleets (25 to 125 carts) |
| Bulk 1000-Pack Wheels | Polyolefin / Polyurethane | 350 lb each | 5/16" Bearing · w/ axles | Enterprise grocery and big-box chains (250 carts) |
| Axle & Lock Nut Hardware | Steel | n/a | 5/16" x 2-1/4" axle · nylock | Replacing missing or stripped axles |
If only the wheel is damaged (flat spots, gouged tread, locked-up bearing) and the caster frame and stem are still solid, order the wheel-only SKU and reuse the existing frame. If the swivel mechanism is rusted, the stem is bent or stripped, or the kingpin rattles, order the complete swivel caster with stem. Complete casters cost more but install in 30 seconds with a single thread-on. Wheel-only requires pressing out the old axle with a hammer and a 5/16-inch punch.
Virtually every retail shopping cart manufactured in the last 20 years uses a 1/2-13 threaded stem that is 7/8 inch long. That's the spec on these P&H casters. If your cart is older, European, or non-standard (some Costco, Wegmans, certain Whole Foods variants), measure the existing stem first. Threaded length matters more than diameter — a stem that bottoms out before tightening will loosen under load.
Polyurethane is the default for retail tile and warehouse concrete. Quiet, non-marking, 350 lb dynamic capacity, decade of service life. TPR rubber and soft blue rubber are for grocery, hospital, and softer floors — quieter rolling but lower capacity (200 lb) and faster tread wear. Polyolefin shows up in 250-pack and larger bulk packs as a tougher fleet option for enterprise grocery chains where wheels get abused.
A standard 4-wheel shopping cart needs 4 wheels. A 4-pack covers one cart. A 50-pack covers 12 carts. A 250-pack covers 62 carts. A 500-pack covers 125 carts. Bulk packs save 18 to 32 percent per wheel versus single-SKU pricing. For grocery, retail, and big-box fleets, order at the quarterly replacement level (not per cart) and keep a small reorder buffer for breakage.
Need help spec'ing replacements for a fleet or pricing a freight order over 1,000 wheels? Contact CasterHQ for direct fleet pricing and freight quotes.
Our 19-minute walkthrough covers identifying the right replacement wheel, the dual sealed precision bearings inside P&H wheels, dust cap function, quality control and lifespan expectations, and how to find the exact replacement on our site. Filmed at our Mansfield, TX warehouse.
Prefer YouTube? Open the full video on the CasterHQ YouTube channel. 25,000+ views.
CasterHQ is an authorized U.S. distributor for the P&H WC2054LD shopping cart wheel and caster line. We stock the complete bulk range — from 4-pack single-cart sets up to 1000-pack enterprise fleet orders — at our Mansfield, TX facility. 99 percent of orders ship same or next business day via FedEx Ground. Bulk packs over 250 ship freight, typically 24 to 48 hour transit to major metro areas. Every wheel ships with bearings pre-installed and lubricated. We do not relabel third-party imports as P&H — what you order is the authentic P&H WC2054LD spec used by major U.S. retail chains.
Standard retail shopping cart wheels are 5 inches in diameter with a 1-1/4 inch tread width. Smaller foldable utility and grocery carts use 4-inch wheels. The 5-inch P&H WC2054LD is the most common replacement spec in the United States and fits Walmart, Target, Home Depot, Lowes, and most regional grocery chains.
The industry standard is a 1/2-13 threaded stem that is 7/8 inch long. The bearing bore on the wheel itself is 5/16 inch. These three specs (5-inch wheel diameter, 1/2-13 stem, 5/16 bearing) cover roughly 90 percent of retail shopping carts in the United States.
A few common names: shopping cart wheels, shopping cart casters, retail cart wheels, grocery cart wheels, or by manufacturer part numbers like P&H WC2054LD. The "caster" is the complete unit (wheel + frame + threaded stem). The "wheel" is just the rolling part — bearing and tread, no frame.
Yes for the vast majority of U.S. carts. These P&H wheels and casters fit virtually all standard retail, grocery, and home improvement store shopping carts in the United States manufactured from 2000 onward. If your cart is European-built or older than 2000, measure the existing stem diameter and length before ordering.
Polyurethane handles higher load (350 lb), wears slower on hard floors, and is the default for big-box retail and warehouse use. TPR rubber is quieter, gentler on soft floors, but rated for 200 lb capacity. Soft blue rubber is the quietest option, used in hospital, library, and residential carts where noise is the primary concern.
Yes — 4-pack, 50-pack, 100-pack, 250-pack, 500-pack, and 1000-pack quantities ship same or next business day from our Mansfield, TX warehouse. Bulk pricing is automatic on the product listing. For fleet orders over 1000 wheels, contact us directly for freight pricing and consolidated shipping.
The complete swivel casters with the 1/2-13 stem drop in by hand-tightening — no tools required, 30 seconds per caster. Wheel-only replacements require pressing out the old axle, which takes a hammer and a 5/16-inch punch. Axle and lock nut hardware is sold separately if your existing axles are stripped or missing.
Yes — every wheel ships with bearings pre-installed and lubricated. P&H wheels use dual sealed precision bearings rated for the 5/16-inch axle spec. Bearings are not designed to be field-serviced or replaced separately; when a bearing fails, replace the wheel.
Standard retail carts run 2 swivel casters at the front and 2 rigid wheels at the rear. Premium and warehouse-grade carts (some Costco, Sam's Club, restaurant supply) use 4-wheel swivel for tighter turning. These P&H casters are swivel by default — order rigid casters only if you are specifically replacing rigid rear wheels.
99 percent of bulk orders 1-pack through 500-pack ship same or next business day from our Mansfield, TX facility via FedEx Ground. 1000-pack orders typically ship freight (24 to 48 hour transit to most U.S. metros). Order before 2pm Central for the same-day cutoff. Tracking emails go out automatically when the label is generated.
